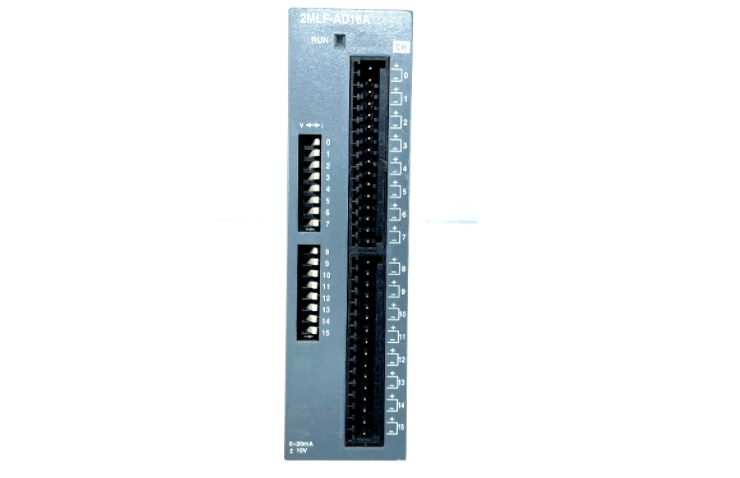

Honeywell 2MLF-AD16A Analog Input Module
Item Number: 2MLF-AD16A
Brand:Honeywell
Lead Time: In stock
Description:Analog Input Module
Payment: T/T
Product Description
Honeywell 2MLF-AD16A is an analog-to-digital (A/D) converter module.This module is used with the CPU module of the MasterLogic-200 series PLC.
It converts continuous analog signals (voltage or current) from external devices (such as sensors and transmitters) into digital values that can be processed by the PLC, converting them into 14-bit signed binary data.
Function & Features
- Graphical User Interface (GUI): The 2MLF-AD16A is configured through Honeywell programming software (such as the I/O Parameter Setting Tool), eliminating the need for command programming.
- Reduced Programming: Configuring the 2MLF-AD16A through the GUI reduces the amount of code in sequential logic programs.
- Input Disconnect Detection: When using signal ranges with a live zero, such as 1-5V or 4-20mA, the module automatically detects disconnected input lines.
Specifications
|
Category |
Specification / Parameter |
Details / Value |
|
Honeywell |
2MLF-AD16A |
|
|
Analog Input Types |
Voltage Input Ranges |
Current Input Ranges |
|
DC 1~5V |
DC 4~20mA |
|
|
DC 0~5V |
DC 0~20mA |
|
|
DC 0~10V |
(Input Resistance 250Ω) |
|
|
DC -10~10V |
||
|
Conversion Speed |
2MLF-AD8A |
250 μs/channel |
|
2MLF-AD16A |
500 μs/channel |
|
|
I/O Addressing |
Fixed type |
64 points |
|
Variable type |
16 points |
