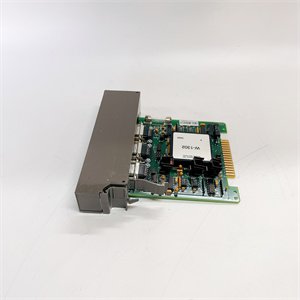

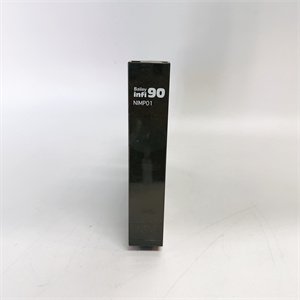

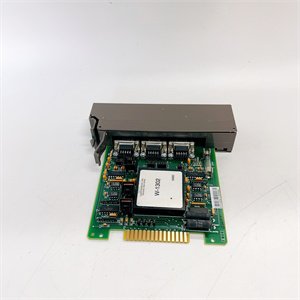

ABB NIMP01 Network Interface Module

The ABB NIMP01 is a high-reliability network interface module designed for ABB’s AC 800M and Advant OCS distributed control systems (DCS), serving as the critical link between industrial automation systems and enterprise networks. As part of ABB’s NIMP (Network Interface Module for Process Control) series, the NIMP01 enables seamless data exchange between control layers and higher-level networks, supporting real-time monitoring, remote programming, and system diagnostics. This module is engineered to integrate with ABB’s PM500 and PM800 series controllers, providing robust Ethernet connectivity for applications requiring high availability and deterministic performance in manufacturing, energy, and process industries.

Featuring a dual-port Ethernet interface (10/100 Mbps auto-negotiation), the NIMP01 supports industrial protocols such as Modbus TCP, Ethernet/IP, and ABB’s proprietary SNP (System Network Protocol), ensuring compatibility with SCADA systems, HMIs, and third-party devices. Its hot-swappable design and redundant power supply support minimize downtime in mission-critical environments, while the LED status indicators (power, link, activity) provide real-time visibility into network health. Positioned as a scalable and secure solution, the NIMP01 enhances system flexibility by enabling remote access for predictive maintenance and software updates, reducing operational costs and improving productivity across the automation lifecycle.

Technical Specifications

High-Speed Connectivity and Protocol Flexibility

The NIMP01’s dual Ethernet ports support ring topology networks for enhanced redundancy, ensuring continuous data flow even during network faults. Its ability to handle multiple protocols simultaneously makes it ideal for hybrid automation environments, such as a chemical plant where it integrates ABB’s AC 800M controllers with Rockwell’s FactoryTalk SCADA via Modbus TCP. The module’s protocol offloading capability reduces CPU load on the controller, allowing resources to focus on real-time control tasks—a critical advantage in high-speed packaging lines where millisecond-level responsiveness is essential.

Robust Industrial Design

Engineered with conformal-coated PCBs and stainless-steel connectors, the NIMP01 withstands harsh industrial conditions, including vibration (5 g, IEC 60068-2-6), humidity (95% RH non-condensing), and electromagnetic interference (EN 61000-6-4). This durability makes it suitable for outdoor installations in oil refineries or mining sites, where traditional network devices might fail. The module’s screwless terminal blocks enable quick installation and reduce wiring errors, while its compact 36 mm width optimizes space in control panels for dense I/O configurations.

Seamless System Integration and Security

The NIMP01 integrates seamlessly with ABB’s Control Builder M and 800xA software, allowing engineers to configure IP addresses, VLAN settings, and firewall rules through a user-friendly interface. Built-in cybersecurity features include access control lists (ACLs) and encrypted data transmission, compliant with IEC 62443-4-1 standards to protect against unauthorized access. In a pharmaceutical plant, these features ensure secure remote access for regulatory audits while preventing cyber threats to critical batch control systems.

Application Field

The ABB NIMP01 is essential in industries requiring reliable industrial networking and remote system management:

• Manufacturing: Enables real-time data exchange between PLCs and MES systems in automotive assembly plants, such as transmitting cycle times from ABB’s IRB robots to enterprise servers for OEE (Overall Equipment Effectiveness) analysis. The module’s low latency (<10 ms) supports synchronized control of conveyor belts and robotic arms in high-speed production lines.
• Power Generation: Connects distributed control systems in thermal and hydroelectric plants to grid management platforms, allowing remote adjustment of turbine setpoints via Modbus TCP. In a smart grid substation, the NIMP01 monitors circuit breakers and relays, transmitting status data to SCADA for predictive maintenance.
• Oil and Gas: Facilitates secure remote access to offshore platform control systems, enabling engineers to troubleshoot issues in wellhead control panels from onshore offices. The module’s wide temperature range supports installations in arctic regions, where it maintains connectivity for pipeline monitoring systems at -40°C.
• Water Treatment: Integrates with IoT platforms to enable real-time monitoring of pump stations and treatment tanks. In a municipal water plant, the NIMP01 transmits flow meter data to a cloud-based analytics tool, optimizing energy usage and ensuring compliance with environmental regulations.

Installation and Maintenance

Pre-installation preparation: Mount the NIMP01 in an AC 800M I/O rack using DIN rail clips, ensuring proper grounding and at least 25 mm of clearance for airflow. Terminate Ethernet cables with shielded RJ45 connectors, following ABB’s wiring guidelines to minimize EMI. Configure the module’s IP address and protocols via Control Builder M, verifying connectivity with a ping test to the controller and upstream network devices.

Maintenance recommendations: Inspect the module’s LED indicators monthly to confirm stable network links and power status. In dusty environments, clean ventilation slots quarterly with compressed air to prevent thermal derating. Annually, review firewall logs for unauthorized access attempts and update firmware via ABB’s Software Manager to incorporate security patches and protocol enhancements. For redundant systems, test failover functionality by simulating a network cable disconnection to ensure seamless switching to the backup port.

Product Guarantee

ABB stands behind the NIMP01 with a 3-year warranty, covering defects in materials, firmware, and workmanship. ABB’s global technical support team provides 24/7 assistance for network configuration, troubleshooting, and remote diagnostics, ensuring minimal disruption to operations. The module undergoes rigorous testing, including 10,000-hour continuous operation tests and EMC compliance validation, to guarantee reliability in 24/7 industrial environments. For customers in regulated industries, ABB offers cybersecurity assessment services to validate the module’s compliance with industry-specific standards, such as NERC CIP for power utilities. By combining robust networking capabilities with ABB’s legendary durability, the NIMP01 delivers unmatched value as a backbone for industrial communication systems.
