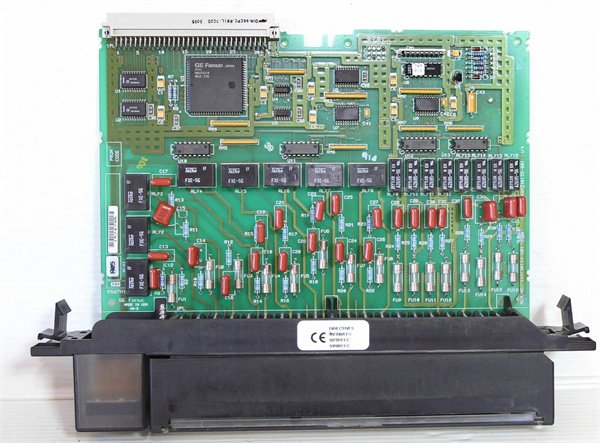

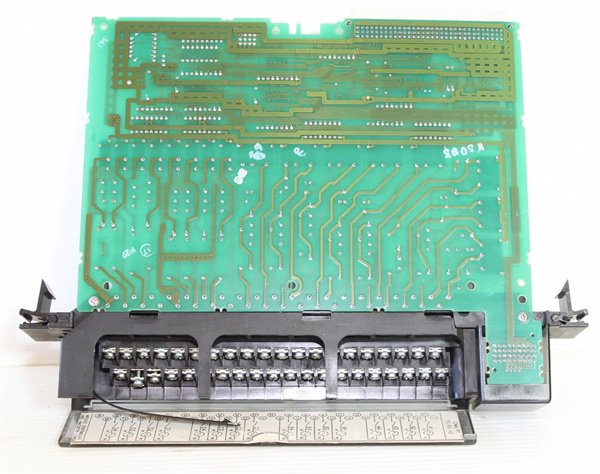

General Electric IC697MDL241 16-Channel High-Density DC Digital Input Module

The GE IC697MDL350 is a 16-channel high-density DC digital input module in GE’s Series 90-70 PLC family, engineered as the “discrete state sensing core”—converting real-world digital signals (from limit switches, photoelectric sensors, or proximity detectors) into logic-level data for Series 90-70 CPUs. Unlike the analog signal-focused IC697MDL652, the IC697MDL350 specializes in “high-speed discrete monitoring”: it captures 16 independent on/off states in a single chassis slot, eliminating the need for multiple low-channel-count digital modules.

Technical positioning for discrete manufacturing and material handling (e.g., CNC machine tools, automated packaging lines, conveyor systems), the IC697MDL350 retains Series 90-70’s industrial-grade reliability: per-channel configurable sinking/sourcing mode adapts to diverse sensor wiring, while 2500 V AC optical isolation blocks electromagnetic interference from motor drives or power tools. It pairs seamlessly with Series 90-70 components—powered by IC697PWR710F (chassis logic power) and controlled by IC697CPU731 (mid-range CPU)—acting as the “frontline of discrete control” in automation architectures. For systems with 8–16 discrete parameters (e.g., conveyor position sensors, packaging seal detectors), it reduces chassis slot usage by 50% compared to 8-channel modules like IC697MDL340.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-Density Channel Design for Space Efficiency: The IC697MDL350’s 16-channel configuration maximizes slot utilization. An automated bottle-filling line monitoring 12 proximity sensors (bottle presence) and 4 limit switches (conveyor stop) can use one IC697MDL350 instead of two 8-channel IC697MDL340 modules—cutting chassis slot occupation by 50% and reducing wiring complexity by 40%.

Ultra-Fast Response for Real-Time Control: ≤1 ms response time captures high-speed discrete events. In a CNC lathe tool changer system, the module detects tool clamp/unclamp signals within 0.5 ms—enabling the CPU to adjust spindle speed instantly and reducing tool change cycle time by 20% compared to 10 ms-response modules.

Dual-Wiring Compatibility for Flexibility: Configurable sinking (NPN) / sourcing (PNP) mode adapts to common sensor types. A warehouse sorting system using 8 NPN photoelectric sensors and 8 PNP limit switches can integrate all signals via one IC697MDL350—avoiding the need for mixed module types and simplifying inventory management.

Robust Protection for Industrial Durability: Surge protection and reverse polarity protection resist harsh factory conditions. In a metal stamping plant, the module withstands 400V DC transients from welding equipment and survives accidental sensor wiring reversal—reducing unplanned downtime by 70% compared to non-protected modules.

Typical Application Scenarios

In CNC machine tool control, the IC697MDL350 (installed in IC697CHS730 6-slot chassis) monitors 10 axis limit switches (24V DC) and 6 tool presence sensors. Controlled by IC697CPU731, it sends real-time state data to the IC697MDL740 relay output module (stopping axes at limits). 1 ms response time ensures instant detection of overtravel events—preventing $5,000+ in tool damage per incident.

For automated packaging lines, the IC697MDL350 collects 12 package detection signals (photoelectric sensors) and 4 seal integrity signals (pressure switches). Paired with IC697CPM915 CPU, it triggers IC697MDL751 solid-state output module (rejecting defective packages). High-density design fits in a 4-slot IC697CHS710 chassis—reducing control cabinet footprint by 30% versus low-channel modules.

In logistics conveyor systems, the IC697MDL350 measures 16 conveyor section occupancy signals (inductive proximity sensors). Installed in IC697CHS750 chassis, it works with IC697CPU770 to coordinate IC697MDL760 variable frequency drive (VFD) module (adjusting conveyor speed). Sinking/sourcing configurability allows mixing sensor types from different vendors—lowering system integration costs by $2,000.

Installation Commissioning and Maintenance Instructions

Installation preparation: Power off the chassis (e.g., IC697CHS730) and verify CPU/power compatibility (IC697CPU731 + IC697PWR710F). Required tools: anti-static wristband, torque screwdriver (0.8–1.2 N·m), wire strippers (22–16 AWG), and digital multimeter. Clean slot contacts with lint-free cloth to ensure signal integrity.

Installation and wiring: Align the module with chassis rails, push until latched, and secure with screws. Wire 24V DC sensor signals to terminal blocks: sinking mode (sensor → module “IN”, common “COM” → 0V); sourcing mode (module “IN” → sensor, 24V → common “COM”). Tighten terminals to 0.5 N·m and use twisted-pair wire for sensor cables (length ≤100m).

Commissioning and maintenance: Power on the chassis, use Proficy Machine Edition to set sinking/sourcing mode per channel. Test each channel with 24V DC (green LED on) and 0V DC (LED off)—confirm CPU logic matches input (response ≤1 ms). Daily maintenance: check channel LEDs (steady green = active). Every 24 months: test isolation resistance (≥100 MΩ @ 500 V DC) and inspect terminals for corrosion. Replace if fault LED persists or response time exceeds 5 ms.
