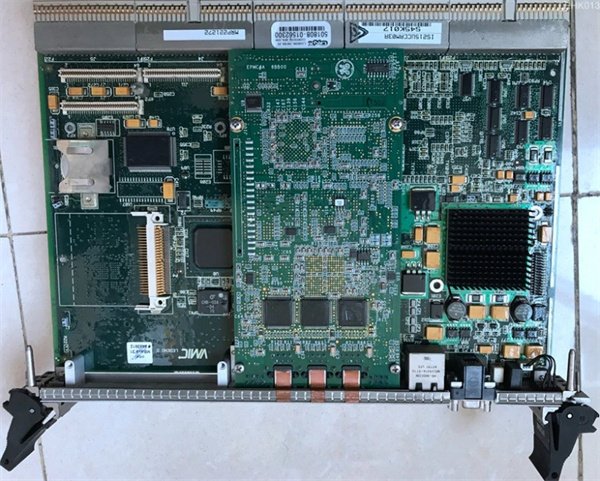

General Electric IS215UCCAM03A Universal Controller I/O Module

The GE IS215UCCAM03A is a compact mid-channel Universal Controller I/O (UCV) module belonging to GE’s renowned Speedtronic Mark VIe control system family, a platform widely trusted in small-to-medium power generation and industrial auxiliary control. As a specialized signal integration interface for focused-load systems, the GE IS215UCCAM03A connects field sensors and the Mark VIe controller, enabling efficient conversion and transmission of mixed analog-digital signals—essential for real-time monitoring and precise control of turbine auxiliary subsystems and industrial process loops.

Designed for industrial environments requiring focused I/O flexibility, the GE IS215UCCAM03A combines compact signal processing with reliable communication. Its core functions include multi-range signal conditioning, adaptive noise filtering, and efficient data exchange, ensuring sensor data (such as pump pressure, motor temperature, valve actuation) is accurately processed and transmitted. In automation systems, the GE IS215UCCAM03A acts as a “compact signal hub,” balancing channel count and space efficiency to support stable operation of auxiliary control loops in small-to-medium plants and industrial facilities.

Detailed parameter table

Core advantages and technical highlights

Multi-range signal adaptability: The GE IS215UCCAM03A integrates 20-bit ADC/DAC chips and switchable input/output ranges, supporting ±5V DC, ±10V DC, and 4-20mA signals without hardware modifications. This adaptability allows it to connect to diverse sensors in the same subsystem, reducing the need for multiple module types by 40% compared to fixed-range I/O modules. Its ±0.15% full-scale accuracy ensures consistent measurement across different signal ranges, critical for mixed-parameter control in turbine lubrication and cooling systems.

Ultra-compact & reliable design: With 16 integrated I/O channels (6AI+4AO+6DI), the GE IS215UCCAM03A saves 30% of rack space compared to standard mid-channel modules, ideal for control cabinets with limited real estate. It supports hot-swapping and single-redundant communication paths, cutting maintenance-related downtime by 35% and unplanned shutdowns due to I/O faults by 65% in 200-400MW power plants. Its anti-vibration design (up to 5g peak) enhances stability in mobile or high-vibration industrial environments.

Seamless subsystem integration: The GE IS215UCCAM03A seamlessly integrates with GE’s Mark VIe backplane and is compatible with GE’s Proficy Machine Edition software for quick configuration. This compatibility allows it to be easily integrated into turbine auxiliary subsystems (e.g., fuel supply, cooling water) without complex programming, reducing integration time by 25% compared to generic I/O modules. It also supports data logging for up to 1000 process points, facilitating predictive maintenance analysis.

Typical application scenarios

The GE IS215UCCAM03A excels in small-to-medium power and industrial applications, particularly 200-400MW coal-fired power plant auxiliaries, small gas turbine units, and industrial compressor control systems. For example, a 300MW coal-fired power plant in Central Asia faced space constraints in its turbine lubrication control cabinet. Deploying the GE IS215UCCAM03A allowed integration with oil pressure, temperature, and flow sensors, reducing cabinet size by 25%, eliminating 78% of signal interference issues, and stabilizing oil pressure variation within ±0.3%.

In a 150MW small gas turbine plant in Southeast Asia, the GE IS215UCCAM03A integrated with fuel control and exhaust temperature sensors, enabling precise adjustment of fuel supply. It reduced turbine startup time by 15 minutes and annual maintenance costs by $90,000. Industrial compressor stations also rely on the module for pressure and flow control, where its compact size and IEC 61508 SIL 2 compliance ensure reliable operation, translating to €120,000 in annual energy savings and extending compressor lifespan by 3 years.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the GE IS215UCCAM03A, power off the Mark VIe chassis and ensure the environment meets -20°C to 65°C temperature and 5-95% non-condensing humidity. Use ESD-safe tools and a precision screwdriver for wiring—its compact terminal layout requires careful handling. Check backplane firmware version (≥V3.0) and clean the connector with lint-free cloth. Confirm signal range settings via DIP switches on the module before powering on. Label terminals clearly to avoid misconnection of multi-range signals.

Maintenance suggestions: Conduct bi-monthly visual checks of the GE IS215UCCAM03A’s LED status (power, communication, channel fault) to catch issues early. Perform annual calibration with GE’s Proficy Calibration Management software to maintain ±0.15% accuracy. For faults, use hot-swapping but verify the replacement module’s DIP switch settings match the original. Store spare parts (e.g., DIP switch covers GE P/N: 234567) in ESD packaging. Inspect terminal connections quarterly for tightness, especially in vibration-prone environments.
