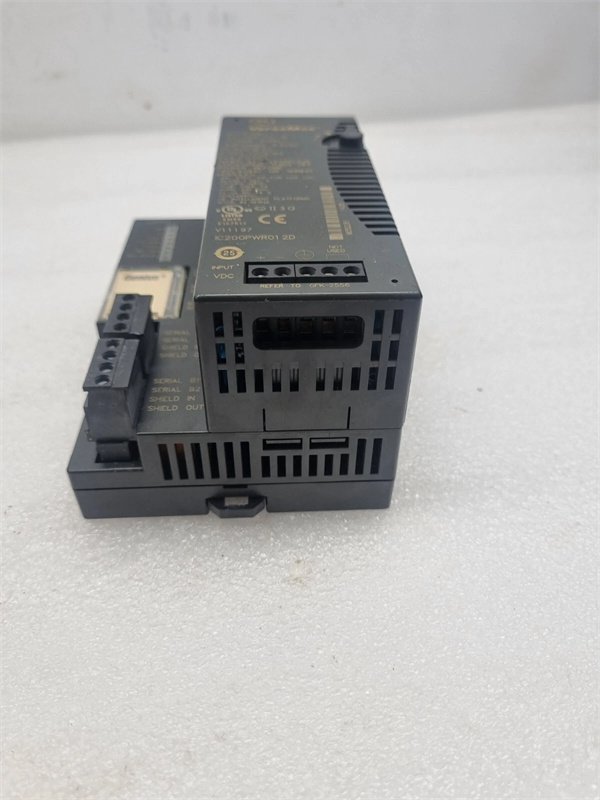

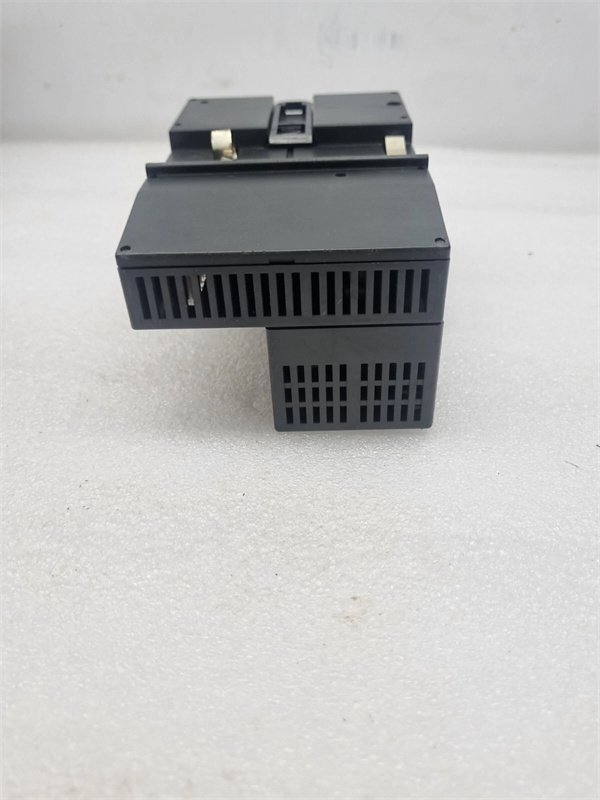

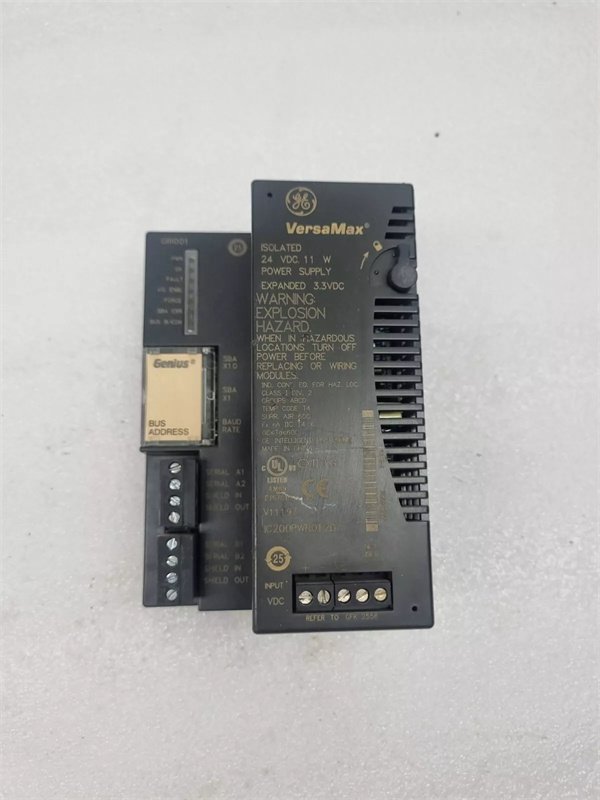

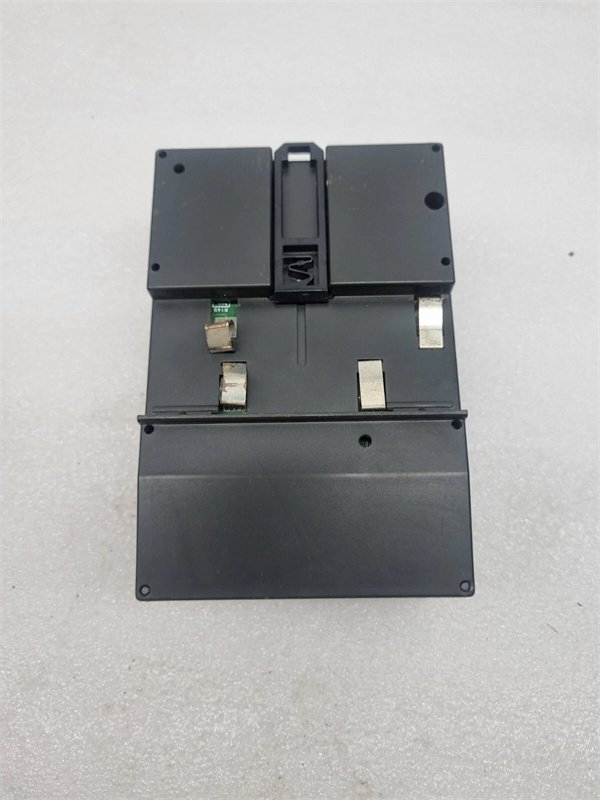

General Electric IC200PWR012D Power Supply Module

The GE IC200PWR012D is a high-performance power supply module designed for the VersaMax series of programmable logic controllers (PLCs). It provides reliable and efficient power management, ensuring stable operation even under fluctuating load conditions. This module is essential for providing consistent power to all connected components within the automation system, enabling smooth and uninterrupted operation.

Detailed Parameter Table

Core Advantages and Technical Highlights

Wide Input Voltage Range: The IC200PWR012D can handle an input voltage range of 90 – 132 VAC, ensuring compatibility with various industrial power supplies. This wide tolerance reduces the risk of power-related disruptions and provides a stable power source for connected devices.

High Efficiency: The module boasts an efficiency of up to 85%, minimizing power losses during the conversion process. This not only reduces energy consumption but also decreases heat generation, leading to increased reliability and a longer lifespan.

Advanced Protection Features: The IC200PWR012D includes overvoltage, undervoltage, and short-circuit protection, safeguarding connected equipment from potential damage. These features ensure robust performance in demanding industrial settings.

Robust Design: Built with high-quality materials, the module is designed for long-lasting performance and minimal maintenance. It operates reliably within a wide temperature range and features efficient thermal management.

Typical Application Scenarios

The GE IC200PWR012D is widely used in various industrial sectors, including:

• Manufacturing Plants: Powers PLCs, sensors, and actuators on production lines, ensuring accurate control and monitoring.

• Power Generation Plants: Provides power to control systems that monitor and manage electricity generation, transmission, and distribution.

• Process Control Systems: Powers valves, pumps, and other equipment in chemical, pharmaceutical, and food processing industries.

Installation Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the input power supply falls within the specified 90 – 132 VAC range. The installation location should be clean, dry, and well-ventilated, with an ambient temperature between 0°C and 55°C. Mount the module securely on a DIN rail or panel, following the provided installation guidelines.

Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation. If any issues are detected, refer to the product manual for troubleshooting steps or contact GE’s technical support.

Service and Guarantee Commitment

GE stands firmly behind the quality of the IC200PWR012D. The product undergoes rigorous testing during manufacturing to ensure it meets high-quality standards. In case of manufacturing defects, GE offers a comprehensive after-sales service, including a warranty period during which free repair or replacement services are provided. GE’s technical support team is available to offer assistance for installation guidance, troubleshooting, and general product-related queries.
