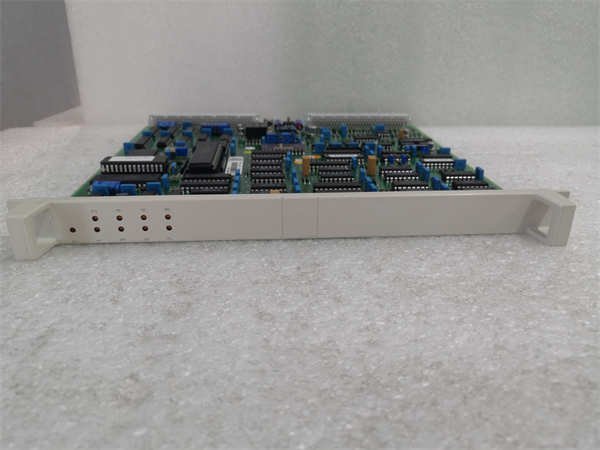

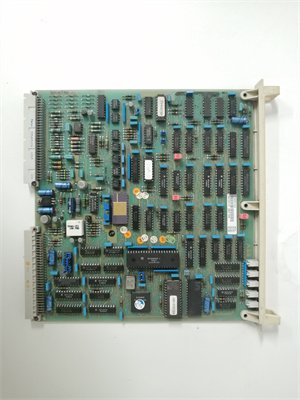

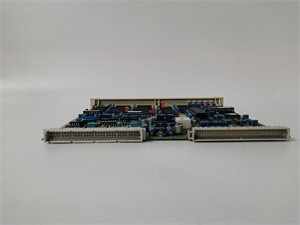

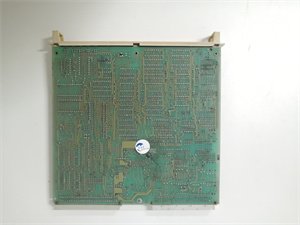

ABB DSDP140B 57160001-ACX Digital Signal Processing Module

The ABB DSDP140B 57160001-ACX is a high-performance digital signal processing (DSP) module designed for industrial automation and control systems, particularly in power generation, motor drives, and process control applications. As part of ABB’s Advant OCS (Open Control System) series, this module serves as a critical component for real-time data processing, signal conditioning, and closed-loop control in complex industrial setups. Its robust design and advanced processing capabilities make it suitable for demanding environments such as oil refineries, steel mills, and large-scale manufacturing plants.

Technical Specifications

Key Features and Functions

High-Speed Signal Processing

• Equipped with a 32-bit RISC DSP processor, the DSDP140B delivers fast arithmetic and logical operations, enabling real-time control algorithms (e.g., PID control, FFT analysis, and state-space modeling).
• Supports advanced signal conditioning, including filtering, scaling, and linearization for analog inputs (e.g., voltage/current signals from sensors).

Flexible I/O Configuration

• Analog Inputs: 8 channels with 16-bit resolution, configurable for voltage (0–10 V) or current (4–20 mA) inputs. Ideal for monitoring process variables like temperature, pressure, or flow rate.
• Analog Outputs: 4 channels (14-bit resolution) for controlling actuators (e.g., valves, motor drives).
• Digital I/O: 16 channels for discrete signals (e.g., on/off status, switch commands), with noise immunity for industrial environments.

System Integration

• Designed for seamless integration with ABB’s Advant OCS controllers (e.g., PM860 series) via the backplane bus, enabling rapid data exchange between modules.
• Supports Modbus RTU for external communication with HMIs, SCADA systems, or third-party devices.

Rugged Industrial Design

• Built to withstand harsh conditions: vibration-resistant, EMI/EMC compliant, and certified for use in industrial environments.
• Hot-swappable design allows module replacement without powering down the system, minimizing downtime.

Diagnostic and Monitoring

• On-board LED indicators for power, communication, and fault status (e.g., overload, channel failure).
• Self-diagnostic functions for continuous health monitoring, including watchdog timer and memory parity checking.

Typical Applications

1. Power Generation and Distribution
   • Controls steam turbines, generators, and switchgear by processing real-time voltage/current signals and adjusting excitation systems.
2. Motor Control and Drives
   • Implements vector control or direct torque control (DTC) algorithms for high-performance AC/DC motors in manufacturing lines.
3. Process Automation
   • Manages closed-loop control in chemical plants, refineries, or pulp/paper mills (e.g., controlling reactor temperatures or pump speeds).
4. Renewable Energy
   • Optimizes energy conversion in wind farms or solar plants by processing signals from inverters and grid-connected systems.

Installation and Maintenance

Installation Steps:

1. Mount the module on a DIN rail in a control cabinet, ensuring proper ventilation.
2. Connect power (24 V DC) and backplane bus cables to the Advant OCS rack.
3. Wire analog/digital signals using shielded cables to minimize interference, terminating them at the TB840 terminal block.
4. Configure the module in ABB’s Control Builder software, assigning I/O addresses and control algorithms.

Maintenance Tips:

• Regularly check LED indicators for fault signals (e.g., red light for communication errors).
• Clean dust from ventilation slots every 6 months to prevent overheating.
• Test hot-swappable functionality annually to ensure quick module replacement in case of failure.
• Update firmware via ABB’s software tools to access new features or bug fixes.

Warranty and Support

ABB offers a 3-year standard warranty for the DSDP140B, covering defects in materials or workmanship. For critical applications, optional extended warranties and 24/7 technical support are available through ABB’s global service network. Customers can access documentation, software updates, and troubleshooting guides via the ABB Ability™ portal or local service centers.
