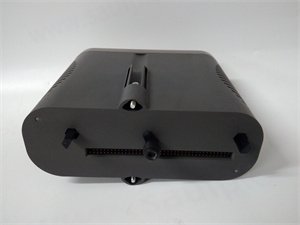

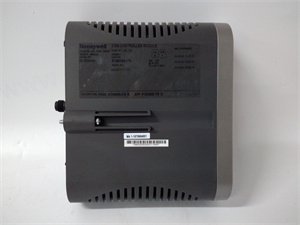

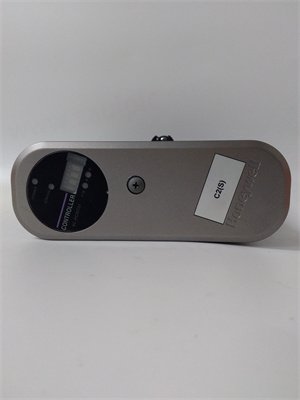

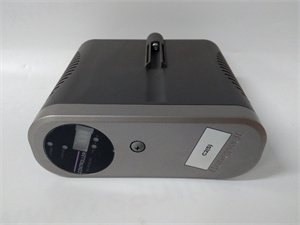

Honeywell 8C-PCNT01 Controller module

The Honeywell 8C – PCNT01 is a pivotal controller module within the esteemed Honeywell C300 controller series. Engineered for industrial automation and process control, this module serves as a linchpin in modular control systems. It is designed to handle a wide array of control tasks with utmost precision and reliability.

Functionally, the 8C – PCNT01 can count pulses from diverse sources such as turbine meters, flow meters, and encoders. This pulse – counting ability, with a capacity of up to 100 pulses per second and a high resolution of 0.001%, is crucial for applications where accurate measurement of flow rates, rotational speeds, or other pulse – based parameters is required. Additionally, it features two output channels, which can be effectively utilized to drive relays or other devices, enabling seamless integration with external control components in an industrial setup.

Detailed Parameter Table

High – Performance Processing

The Honeywell 8C – PCNT01 is equipped with an advanced processor. This high – performance processor allows for swift and efficient processing of incoming data, ensuring that control decisions are made in a timely manner. Whether it’s handling complex pulse – counting operations or coordinating with other components in the control system, the module’s processing power enables it to keep up with the demands of high – speed industrial processes.

Wide – Range Input Compatibility

With its high – impedance, differential voltage, and optically isolated inputs, the 8C – PCNT01 can interface with a broad spectrum of sensors and devices. It can accurately measure signals over a wide frequency range, from 0 – 100 kHz in single – channel mode to 0 – 10 kHz in dual – pulse channel mode. This versatility makes it suitable for use in various industries where different types of sensors are employed to monitor and control processes.

Robust and Reliable Design

Built to withstand harsh industrial environments, the module has an operating temperature range from – 40°C to + 70°C. Its rugged construction, combined with certifications like CE, UL, and ISO 9001, guarantees its reliability even in challenging conditions. This makes it a dependable choice for industries such as oil and gas, where equipment must operate flawlessly in extreme temperatures and potentially corrosive atmospheres.

Easy Integration

Featuring communication interfaces like RS – 485, CANopen, and RS – 485 Modbus RTU, the 8C – PCNT01 can be easily integrated into existing industrial control systems. This allows for seamless communication with other modules, controllers, and upper computer，facilitating the exchange of data and commands across the entire automation network.

Manufacturing Industry

In manufacturing plants, the Honeywell 8C – PCNT01 can be used to monitor and control conveyor belt speeds. By counting pulses from encoders attached to the conveyor belt motors, it can precisely regulate the speed to ensure smooth material flow. For example, in a food packaging factory, accurate conveyor belt speed control is essential to ensure proper packaging and prevent product jams. The module’s two output channels can be used to activate alarms or control other devices in case of speed deviations.

Oil and Gas Sector

In oil and gas pipelines, the 8C – PCNT01 can interface with turbine meters to measure the flow rate of oil or gas. The high – accuracy pulse – counting capabilities ensure that the volume of the transported fluid is measured precisely. This data is crucial for inventory management, billing, and ensuring the safe and efficient operation of the pipeline. In addition, the module’s ability to operate in harsh environments makes it suitable for installation in remote and challenging locations along the pipeline.

Power Generation

For power generation plants, the module can be used to monitor the rotational speed of generators. By counting pulses from sensors attached to the generator shafts, it can provide real – time speed data. This information is vital for maintaining the stability of the power grid, as any fluctuations in generator speed can affect the quality of the electricity produced. The 8C – PCNT01 can also be integrated with other control systems in the power plant to adjust the generator’s output based on the measured speed.

Installation Preparation

Before installing the Honeywell 8C – PCNT01, ensure the installation environment has a temperature within – 40°C to + 70°C. Use appropriate tools, such as screwdrivers for securing connections. Disconnect all power sources in the system to prevent electrical accidents. Verify the compatibility of the module with the existing control system in terms of power supply requirements, communication interfaces, and input/output signal levels. Mount the module on a suitable support structure, ensuring it is securely fastened. Prepare the wires according to the specified gauge and strip the ends for proper connection to the module’s terminals.

Maintenance Suggestions

Regularly inspect the 8C – PCNT01 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the module’s operating temperature to ensure it remains within the normal range. Use diagnostic tools to check the functionality of the input and output channels. In case of a malfunction, first check the power supply and wiring connections. If the problem persists, refer to the product manual for detailed troubleshooting steps. When replacing parts, always use genuine Honeywell components to maintain the module’s performance and reliability. Keep records of maintenance activities and any issues encountered for future reference.
