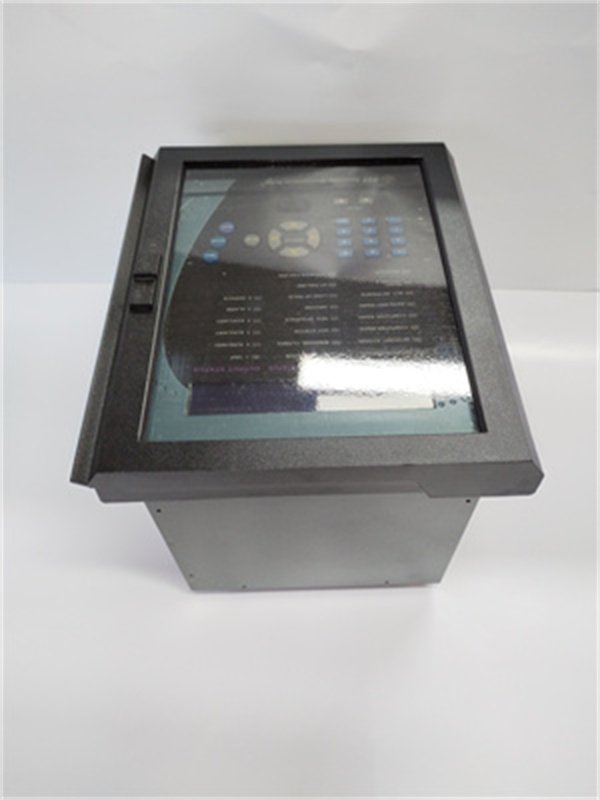

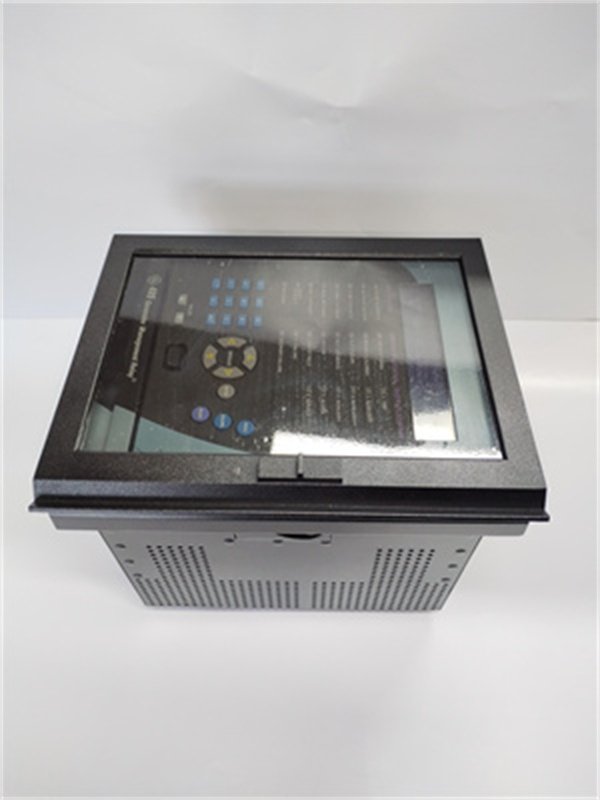

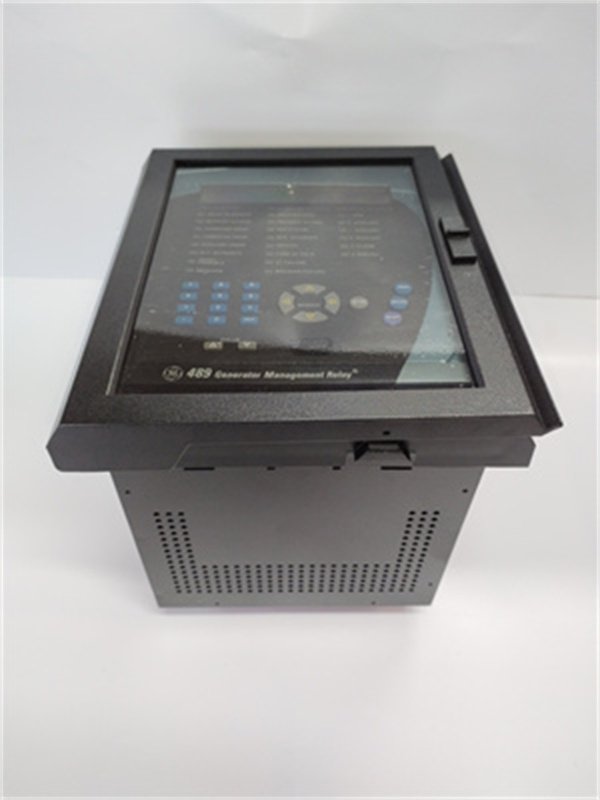

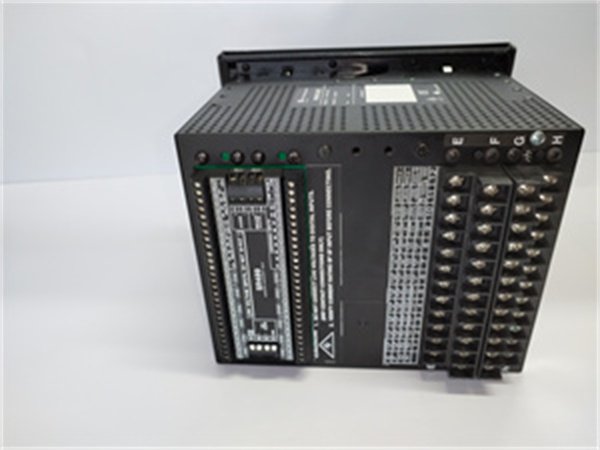

General Electric SR489-P5-LO-A20-E Generator Protection Relay

The GE SR489-P5-LO-A20-E is a high-performance generator protection relay belonging to GE’s renowned SR489 series. It is specifically engineered to offer robust protection, precise monitoring, and reliable control for generators in various industrial applications. As a critical component in power generation systems, this relay acts as a safeguard, detecting abnormal conditions and initiating appropriate actions to prevent damage to the generator and associated equipment, ensuring the continuity of power supply.

Detailed Parameter Table

Core Advantages and Technical Highlights

Comprehensive Protection Capabilities: The SR489-P5-LO-A20-E is equipped with a wide range of protection functions to cover diverse fault scenarios. It provides overcurrent protection to handle excessive current flows, which could result from short circuits or overloads. Overvoltage and undervoltage protection prevent damage caused by voltage fluctuations beyond safe limits. Reverse power protection guards against power flow in the opposite direction, which can harm the generator and the grid. Additionally, it offers stator and rotor earth fault protection, crucial for detecting insulation faults in the generator’s windings. For example, in a power plant, if a stator earth fault occurs, the relay can quickly trip the generator to avoid catastrophic failure.

Low Control Power Compatibility: With its LO (Low) control power range of 24-60 VDC / 24-60 VAC, this relay is well-suited for systems with limited power supply capacity. It can seamlessly integrate into setups where low-voltage power sources are prevalent, such as small to medium-sized generator installations in remote areas or industrial facilities with specific power constraints. This flexibility eliminates the need for additional power conversion equipment, simplifying the system design and reducing costs.

Advanced Communication and Monitoring: The inclusion of Ethernet and RS485 communication interfaces enables seamless integration with supervisory control and data acquisition (SCADA) systems and other intelligent devices. This allows for real-time data transmission, remote monitoring, and configuration of the relay. The color LCD with a graphical interface provides clear visualization of system parameters, fault records, and operational status, making it easy for operators to quickly understand the generator’s condition. For instance, in a distributed power generation network, operators can remotely monitor the generator’s current, voltage, and power output via the relay’s communication capabilities, enabling timely decision-making.

High Measurement Accuracy: Boasting a measurement accuracy of ±0.5% for current and voltage, the SR489-P5-LO-A20-E ensures precise monitoring of generator parameters. This accuracy is vital for optimizing generator performance, as it provides reliable data for load management, efficiency analysis, and preventive maintenance. Accurate current and voltage measurements help in detecting subtle changes that may indicate potential issues, allowing for proactive intervention before they escalate into major faults.

Typical Application Scenarios

Industrial Power Plants: In industrial power plants, where generators supply electricity for critical processes, the SR489-P5-LO-A20-E plays a vital role. It protects the generator from faults such as overcurrent due to equipment malfunctions, overvoltage caused by sudden load drops, and reverse power during grid disturbances. For example, in a chemical plant, if a sudden shutdown of a large motor causes an overvoltage condition, the relay will detect it and trip the generator to prevent damage to its windings and other components.

Commercial Buildings and Data Centers: Commercial buildings and data centers often rely on backup generators to ensure uninterrupted power supply during grid outages. The SR489-P5-LO-A20-E provides essential protection for these backup generators. It monitors parameters like voltage and frequency, ensuring the generator starts and operates correctly when needed. In a data center, where even a brief power interruption can lead to significant data loss, the relay’s rapid fault detection and tripping capabilities help minimize downtime and protect critical IT infrastructure.

Renewable Energy Systems: In renewable energy systems such as wind farms and solar power plants, generators (or inverter-based generators) require reliable protection. The SR489-P5-LO-A20-E is well-suited for these applications, offering protection against faults specific to renewable energy generation, such as voltage fluctuations due to varying wind speeds or solar irradiance. It ensures the generator operates within safe limits, maximizing energy production while safeguarding equipment. For instance, in a wind farm, the relay can detect overcurrent caused by a sudden gust of wind and adjust the generator’s output or trip it if necessary.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the SR489-P5-LO-A20-E, ensure the power to the generator system is disconnected to avoid electrical hazards. Verify that the installation location is clean, dry, and free from excessive vibration and electromagnetic interference. Check that the control power supply matches the relay’s LO range (24-60 VDC / 24-60 VAC). Mount the relay on a flat surface using the provided hardware, ensuring proper ventilation to maintain the operating temperature within the specified range.

Commissioning: After installation, connect the current and voltage transformers to the relay’s input terminals as per the wiring diagram. Power on the control supply and use the color LCD or GE’s configuration software to set up the relay parameters, including protection thresholds, trip delays, and communication settings. Perform functional tests for each protection feature by simulating faults (e.g., overcurrent, overvoltage) and verifying that the relay trips correctly. Check the communication links to ensure data is transmitted accurately to the monitoring system.

Maintenance Suggestions: Conduct regular visual inspections of the relay to check for loose connections, dust accumulation, or physical damage. Clean the relay’s exterior and ventilation slots periodically using compressed air. Verify the accuracy of measurements by comparing the relay’s readings with calibrated test equipment. Review fault records and event logs to identify recurring issues and take preventive actions. Ensure the relay’s firmware is up to date by checking GE’s official website for updates. In case of a fault or malfunction, refer to the user manual or contact GE technical support for troubleshooting.

Service and Guarantee Commitment

GE provides a 12-month warranty for the SR489-P5-LO-A20-E, covering manufacturing defects and component failures under normal operating conditions. The company’s global technical support team is available 24/7 to assist with installation, commissioning, and troubleshooting. Customers can access a wealth of resources, including user manuals, technical specifications, and software updates, through GE’s online portal. For critical applications, GE offers extended warranty options and on-site service agreements to ensure the relay’s optimal performance and minimize downtime. In the event of a warranty claim, GE promptly arranges for repair or replacement of the faulty unit, ensuring customer satisfaction and uninterrupted operation of the generator system.
