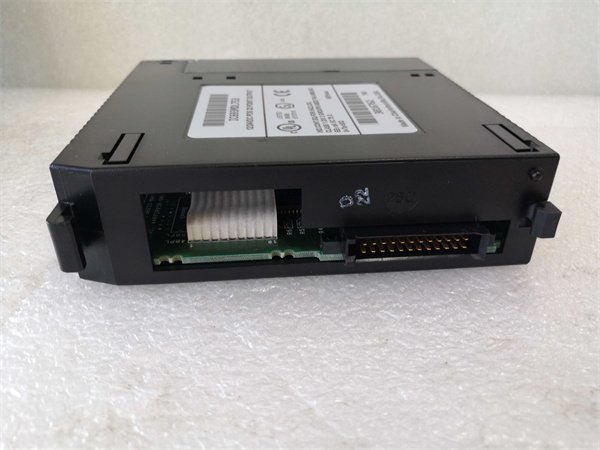

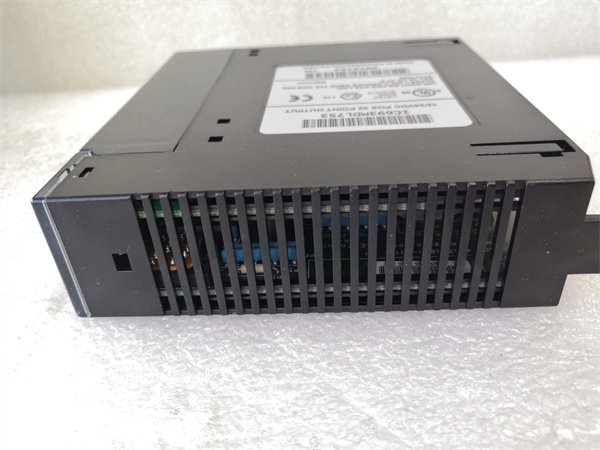

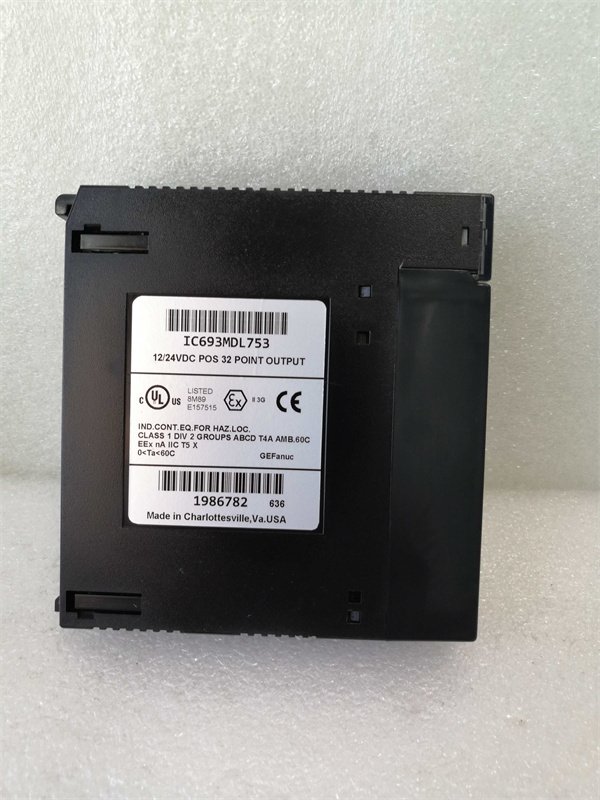

General Electric IC693MDL753 Digital Output Module

The GE IC693MDL753 is a digital output module that plays a pivotal role in industrial automation systems. As part of GE’s Series 90 – 30 programmable logic controller (PLC) family, this module is designed to offer reliable and efficient control over external devices. With 32 discrete outputs, the IC693MDL753 can manage multiple actuators, solenoids, and other load devices simultaneously. These outputs are grouped into four isolated sets of eight, each with its own dedicated common, enhancing safety and versatility. Operating on positive logic, a high – voltage input activates the connected device, simplifying the control process. It seamlessly integrates with the Series 90 – 30 system, providing precise control capabilities and contributing to the overall performance and productivity of industrial control applications.

Technical Specifications

High – Density Output: The GE IC693MDL753 features 32 output channels, allowing for the control of numerous industrial devices simultaneously. This high – density design not only boosts productivity but also optimizes space utilization in control cabinets.

High – Current Output: Each channel can handle up to 0.5 A of current, enabling it to power a wide range of equipment, from small sensors to more power – hungry actuators.

Positive Logic Operation: With positive logic, a high – voltage signal turns on the connected device, streamlining the control logic and making it easier for engineers to program and troubleshoot.

Output Grouping and Isolation: The 32 outputs are divided into four isolated groups of eight. Each group has its own common, and there is 250 V of isolation between output groups, as well as 100 V between the field side and the logic side. This isolation protects against electrical interference and short – circuits, enhancing system reliability.

LED Indicators: There are LED indicators for each output channel, providing a clear visual indication of the output status. This simplifies maintenance and troubleshooting, as operators can quickly identify if an output is active or not.

Manufacturing Plants: In manufacturing, the GE IC693MDL753 is used to control production line machinery. It can manage motors that drive conveyor belts, ensuring smooth product flow. Additionally, it controls solenoid – operated valves, which are crucial for tasks like pneumatic control in robotic arms, enhancing production efficiency and product quality.

Process Control: In industries such as chemical and oil – and – gas, process control is vital. The IC693MDL753 can be used to control the opening and closing of valves that regulate the flow of chemicals or fluids. It also controls pumps, ensuring accurate and safe transfer of materials, and maintaining precise process parameters.

Automotive Industry: In automotive manufacturing, the module is applied in assembly lines. It controls robotic arms for tasks like part handling, welding, and painting. By accurately sending control signals, it ensures that each step of the assembly process is executed precisely, leading to high – quality vehicle production.

Power Industry: In power generation and distribution, the GE IC693MDL753 controls the switching of power – related equipment. It can turn on or off circuit breakers and relays, protecting the power grid from overcurrent and other electrical faults, and ensuring a stable power supply.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693MDL753, ensure that the power to the PLC system is turned off. Check the installation environment to ensure it meets the module’s temperature and humidity requirements. Verify that the PLC baseplate is properly installed and has available slots for the IC693MDL753. Inspect the module for any physical damage and clean the connection ports.

Maintenance recommendations: Regularly monitor the IC693MDL753 for any abnormal behavior, such as incorrect output states. Check the LED indicators of each channel to ensure they are functioning correctly. Periodically clean the module to prevent dust accumulation, which could affect performance. If there are any issues, refer to the product manual for troubleshooting steps. In case of hardware problems, contact GE’s technical support for further assistance.

Product Guarantee

GE stands firmly behind the quality of the GE IC693MDL753. Through rigorous production and testing processes, the company ensures that this module meets high – industry standards. In terms of after – sales service, GE offers comprehensive technical support. If the product has any quality – related issues within the warranty period, GE will provide repair or replacement services free of charge. This commitment reflects GE’s confidence in the product and its dedication to customer satisfaction, giving users peace of mind when integrating the IC693MDL753 into their industrial control systems.
