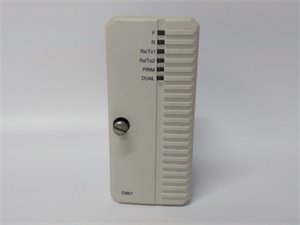

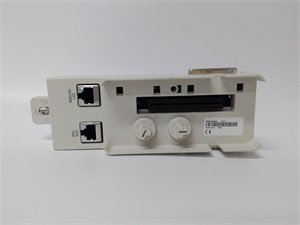

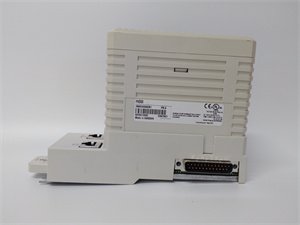

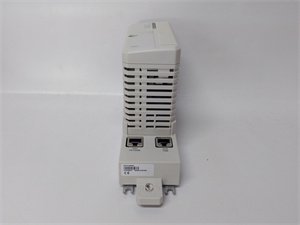

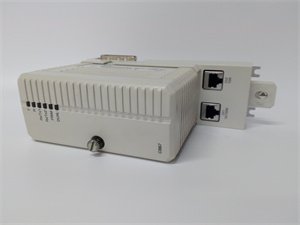

ABB CI867K01 3BSE043660R1 Analog Input Module
Manufacturer:ABB
Product Number:CI867K01 3BSE043660R1
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB CI867K01 3BSE043660R1 is a high-performance analog input module designed for ABB’s AC 800M modular automation system. As a key component of ABB’s industrial I/O portfolio, the CI867K01 3BSE043660R1 supports precise data acquisition from sensors and transmitters in industrial processes. With 16 isolated channels, the module accepts voltage/current signals (4–20 mA, ±10 V) and thermocouple inputs (Type J, K, T, E), making it ideal for applications requiring multi-type signal integration. The CI867K01 3BSE043660R1 features advanced signal conditioning, noise filtering, and diagnostic capabilities, ensuring reliable operation in harsh environments such as chemical plants, power stations, and manufacturing facilities.
Product Specifications
| Parameter | Details |
|---|---|
| Brand | ABB |
| Model | CI867K01 3BSE043660R1 |
| Type | Analog Input Module (AC 800M Series) |
| Voltage | 24 VDC (±10%) |
| Channels | 16 isolated channels |
| Signal Types | 4–20 mA, ±10 V, thermocouples (J/K/T/E) |
| Accuracy | ±0.05% (voltage/current), ±1.5°C (thermocouple) |
| Sampling Rate | 10 ms per channel |
| Input Impedance | ≥10 MΩ (voltage), 250 Ω (current) |
| Isolation | 2.5 kV (channel-to-system, channel-to-channel) |
| Communication | PROFIBUS DP V1, MODBUS RTU (via gateway) |
| Operating Temperature | -40°C to 70°C |
| Dimensions | 145 mm (H) x 100 mm (W) x 160 mm (D) |
Advantages and Features
- Multi-Signal Support: Handles voltage, current, and thermocouple inputs in a single module, reducing inventory complexity.
- High Reliability: Industrial-grade design with a MTBF of 150,000+ hours and surge protection (600 V transient).
- Precision Performance: 16-bit resolution and auto-zero calibration ensure accurate measurements in noisy environments.
- Easy Integration: Plug-and-play compatibility with ABB’s AC 800M system and System 800xA software.
- Advanced Diagnostics: Real-time channel-level alerts (open circuit, short circuit, overrange) for predictive maintenance.
Application Areas and Use Cases
Industries: Oil & gas, chemical processing, power generation, food & beverage, and water treatment.
Use Case:
A chemical plant upgraded its reactor monitoring system with 20 CI867K01 3BSE043660R1 modules. The modules’ thermocouple and current input support enabled centralized monitoring of temperature (±1°C accuracy) and pressure (4–20 mA) across 320 sensors. Downtime due to sensor failures decreased by 40% due to real-time diagnostics, improving production efficiency by 15%.
Competitive Differentiation
Compared to standard analog input modules, the CI867K01 3BSE043660R1 offers:
- Unified Signal Handling: Combines voltage, current, and thermocouple inputs in one module (vs. dedicated modules for each signal type in competing products).
- Enhanced Isolation: 2.5 kV channel-to-channel isolation (vs. 1 kV in many alternatives), ensuring immunity to ground loops.
- Long-Term Support: 10+ years of lifecycle support from ABB, including firmware updates and spare part availability.
Selection Recommendations
- Signal Requirements: Verify input types (voltage/current/thermocouple) and channel count (16 channels per module).
- Environment: Ensure compatibility with temperature (-40°C to 70°C) and vibration (IEC 60068-2-6) standards.
- System Integration: Confirm compatibility with ABB’s AC 800M controller and System 800xA software.
- Redundancy: Pair with redundant controllers (e.g., PM866K) for critical applications.
Installation and Maintenance Notes
- Wiring: Use shielded cables for thermocouple inputs; follow ABB’s wiring diagrams for proper grounding.
- Calibration: Perform factory calibration every 2 years (or as per process requirements) using ABB’s Engineering Tools.
- Firmware: Update firmware quarterly to access new features (e.g., enhanced noise filtering).
- Safety: Disconnect power before module replacement; observe EMC guidelines for cable routing.
