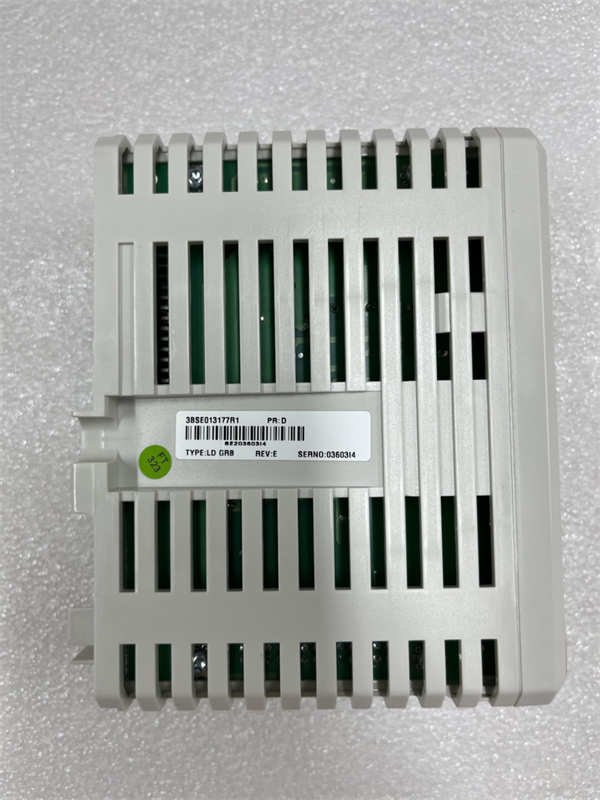

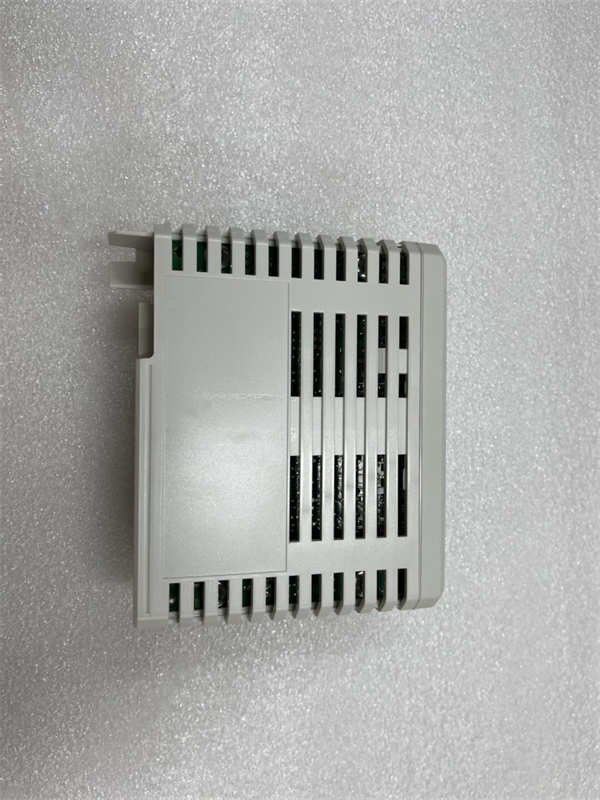

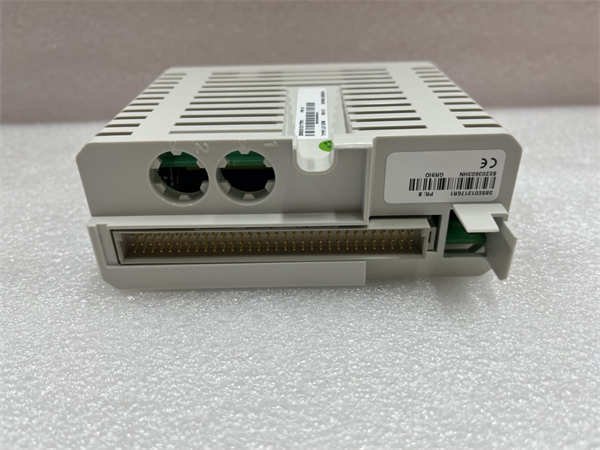

ABB LDGRB-01 3BSE013177R1 Digital Input/Output Module

The ABB LDGRB-01 3BSE013177R1 is a high-performance digital input/output (I/O) module designed for industrial automation systems. It is part of the ABB IndustrialIT 800xA and Symphony Plus systems, providing reliable signal isolation, conversion, and distribution. The module supports multiple communication protocols, including Modbus RTU, Profibus DP, and Ethernet, ensuring seamless integration with various control systems. Its robust design and wide operating temperature range make it suitable for harsh industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability:

• The ABB LDGRB-01 3BSE013177R1 offers a mean time between failures (MTBF) of over 100,000 hours, ensuring long-term stability in critical operations.

• It supports hot-swap functionality, allowing maintenance without system downtime.

Flexible Integration:

• Compatible with ABB’s AC500 PLC series and third-party Modbus RTU devices, reducing compatibility challenges.

• Configurable input/output modes (sinking/sourcing) adapt to diverse field device requirements.

Energy Efficiency:

• Low power consumption (≤5 W) minimizes operational costs, making it suitable for energy-sensitive applications.

Space-Saving Design:

• Compact form factor (100 mm × 100 mm × 50 mm) allows dense installation in control panels.

Advanced Diagnostics:

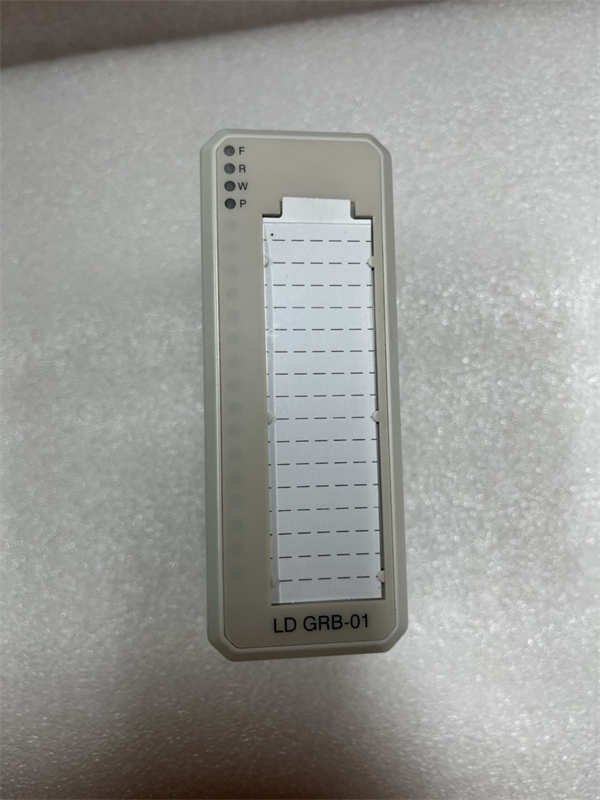

• Built-in LED status indicators provide real-time monitoring of power, communication, and channel status.

• Detailed fault information can be viewed via system HMI or diagnostic software.

High Precision and Signal Processing:

• Supports analog and digital signal isolation and conversion with high precision (±0.1% FS).

• Provides high-speed sampling and signal processing capabilities, suitable for monitoring fast-changing signals.

Typical Application Scenarios

The ABB LDGRB-01 3BSE013177R1 is widely used in various industrial sectors, including:

• Process Control: For signal isolation and distribution in chemical and oil & gas industries.

• Power Systems: For monitoring and protection signal conditioning in substations.

• Discrete Manufacturing: For state signal acquisition and conversion in production lines.

• Robotics and Automation: For complex motion control and monitoring in manufacturing lines.

• Water and Wastewater Treatment: For monitoring and controlling equipment in water treatment plants.

Installation Commissioning, and Maintenance Instructions

Installation Preparation:

• Ensure the control panel has adequate space to accommodate the module’s dimensions (100 mm × 100 mm × 50 mm) and provide sufficient airflow for cooling.

• The module requires a stable 24V DC power supply within ±10% tolerance and proper grounding to minimize electromagnetic interference.

• It can be mounted on a standard DIN rail or panel-mounted using the provided hardware.

Maintenance Suggestions:

• Regularly inspect terminals for loose connections and verify the integrity of communication cables.

• Replace modules if exposed to extreme temperatures or moisture.

• Disconnect power before installing or replacing the module to avoid electrostatic discharge (ESD).

Service and Guarantee Commitment

ABB provides comprehensive support for the ABB LDGRB-01 3BSE013177R1, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
