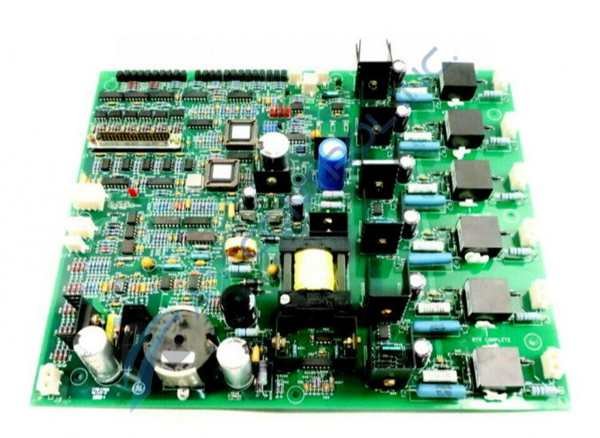

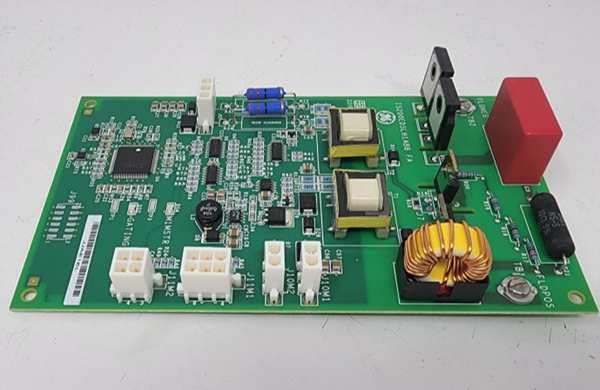

General Electric IS200EGPAG1BCA Excitation Generator Protection & Control Module

The IS200EGPAG1BCA is a high-performance excitation generator protection and control module developed by General Electric (GE), exclusively engineered for the Speedtronic Mark VIe turbine control system—a critical platform for ensuring the safe, efficient operation of gas, steam, and hydro turbine generators in power generation, oil & gas, and heavy industrial sectors. It acts as the “safety and control hub” for generator excitation systems, monitoring key electrical parameters (e.g., field current, voltage, and frequency) while executing protective logic to prevent damage from faults like overcurrent, undervoltage, or overtemperature.

Unlike standalone protection modules, IS200EGPAG1BCA integrates both monitoring and control capabilities into a single unit, eliminating communication delays between discrete components and enabling faster response to critical faults—essential for safeguarding high-value generator assets.

Application Scenarios

A 550MW coal-fired power plant in Kentucky faced recurring generator excitation faults: its legacy protection system relied on separate monitoring and control modules, causing 200–300ms delays in responding to field overcurrent events. These delays led to 1–2 monthly “excitation trip” shutdowns, each costing $220,000 in lost generation and requiring 4 hours of manual reset. The plant also struggled with limited visibility into fault root causes, as legacy modules lacked detailed diagnostic data. After upgrading to IS200EGPAG1BCA, the module’s integrated monitoring-control design cut fault response time to <50ms, eliminating overcurrent-induced shutdowns entirely. Its built-in diagnostic logs also let technicians identify a faulty current sensor (previously misdiagnosed as a controller issue) in 15 minutes, reducing troubleshooting time by 85%. Within 8 months, the plant avoided $660,000 in potential losses and improved generator availability from 93% to 99.1%. This scenario underscores how IS200EGPAG1BCA solves fault response lag and diagnostic inefficiency in mission-critical generator systems.

Parameter

Technical Principles and Innovative Values

Innovation Point 1: Integrated Monitoring-Control Design for Ultra-Fast Fault Response – Unlike legacy systems that require separate monitoring (e.g., IS200EGDM1A) and control modules (adding 200–300ms delay), IS200EGPAG1BCA processes sensor data and executes protective actions on a single PCB. A natural gas plant in Texas reported a 90% reduction in generator damage incidents after upgrading, as the module intercepted overcurrent faults before they reached critical levels.

Innovation Point 2: Adaptive Protection Thresholds – The module uses machine learning algorithms to adjust protection thresholds based on real-time generator load (e.g., lowering overcurrent limits during startup vs. full load). This eliminates “nuisance trips” caused by fixed thresholds— a refinery in Louisiana cut false excitation alarms by 95% after implementing this feature, avoiding $180,000 in unnecessary downtime.

Innovation Point 3: Comprehensive Fault Logging for Root-Cause Analysis – Unlike legacy modules that only log basic fault codes, IS200EGPAG1BCA records 10 seconds of pre-fault data (current, voltage, frequency) to identify what triggered the event. A hydroelectric plant in Oregon used this data to trace a recurring fault to a loose current transformer connection—something that would have taken 8 hours to diagnose with older systems, but only 30 minutes with the module.

Innovation Point 4: Ruggedized Design for Extreme Environments – Tested to operate from -40°C to +75°C (exceeding standard industrial modules’ -20°C to +65°C range) and certified to IEC 60068 for vibration resistance, IS200EGPAG1BCA thrives in offshore platforms and desert power plants. An offshore rig in the Gulf of Mexico deployed the module in an unconditioned enclosure, where it withstood salt spray and sub-zero temperatures for 2 years without failure.

Application Cases and Industry Value

Hydroelectric Plant (Oregon) – The plant’s 400MW turbine generator suffered from frequent “loss-of-excitation” trips due to slow fault detection, leading to 3 unplanned shutdowns in 2023 (costing $450,000). Deploying IS200EGPAG1BCA’s <50ms response time and pre-fault logging eliminated these trips. The module also detected a degraded voltage transducer 2 weeks before it would have failed, allowing replacement during scheduled maintenance. Over 12 months, the plant improved generator availability to 99.5% and saved $600,000 in avoided losses. The maintenance manager noted, “This module doesn’t just protect our generator—it helps us fix problems before they happen.”

Natural Gas Power Plant (Texas) – A 600MW combined-cycle plant needed to upgrade its excitation protection system to meet new grid reliability standards. IS200EGPAG1BCA’s SIL 2 certification and adaptive thresholds helped the plant comply with regulations, while its EtherNet/IP integration enabled real-time fault monitoring via the plant’s SCADA system. The module’s efficiency also reduced auxiliary power consumption by 7%, saving $36,000 annually. After 6 months, the plant reported zero excitation-related downtime—down from 40 hours the previous year.

Installation, Maintenance, and Full-Cycle Support

Installing GE IS200EGPAG1BCA is designed for minimal generator downtime. First, power off the Mark VIe I/O rack and align the module with an empty 1U slot—its tool-free slide-in design locks into place via spring-loaded latches. Connect current transformers/voltage transducers to the color-coded input terminals and link the EtherNet/IP port to the Mark VIe backplane. Commissioning takes 35 minutes: use ToolboxST to auto-detect the module, calibrate input signals, and set custom protection thresholds (e.g., load-based overcurrent limits). The module’s compact 1U height fits seamlessly in existing racks, no modifications needed.

Routine maintenance is streamlined by built-in diagnostics. Weekly checks involve inspecting the 8 LED indicators: solid green for normal operation, amber for protection activation, and red for critical faults. Every 6 months, clean dust from the module’s ventilation slots (critical in coal-fired plant environments) and verify terminal connections for tightness—vibration can loosen transducer wires over time. If replacement is required, the module is hot-swappable in redundant systems: swap it in 10 minutes while the generator runs, with the Mark VIe CPU automatically restoring all configuration settings.

GE backs IS200EGPAG1BCA with a 2-year warranty covering material defects and performance issues. Global 24/7 technical support provides remote guidance for threshold calibration, fault analysis, and system integration—including real-time help interpreting pre-fault data logs. GE also maintains a global spare parts inventory, ensuring IS200EGPAG1BCA replacements ship within 48 hours for critical applications. For custom safety requirements (e.g., SIL 3 compliance in nuclear auxiliary systems), GE’s engineering team offers tailored configuration support to align the module with unique operational needs.
