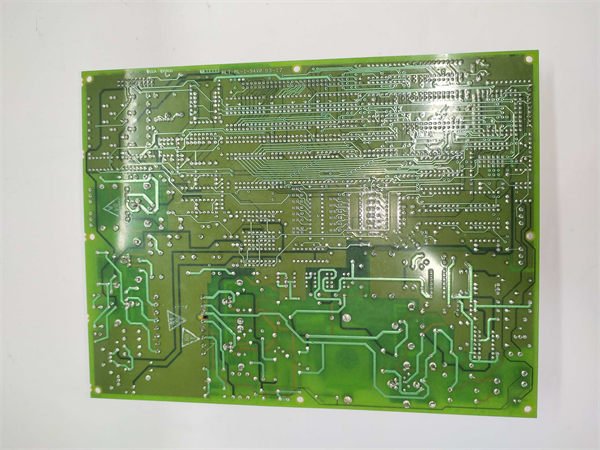

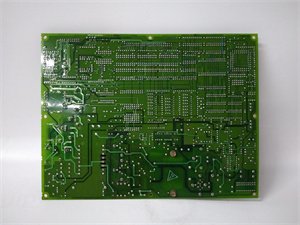

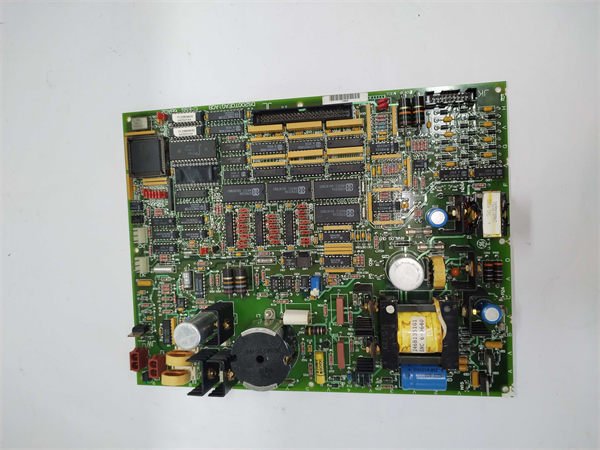

General Electric DS200TCEAG2BJE Turbine Control Ethernet Adapter Gateway

The DS200TCEAG2BJE is a high-performance turbine control Ethernet adapter gateway manufactured by GE, exclusively designed for the Speedtronic Mark VIe system. It serves as an “Ethernet expansion hub” that extends Mark VIe’s network reach to distributed subsystems—such as remote I/O racks, auxiliary turbine controls, or field-mounted sensors—enabling high-speed, reliable data exchange across large industrial facilities (e.g., multi-turbine power plants, sprawling refineries).

Unlike the legacy-focused DS200TCCBG1ALC (which translates old protocols to Mark VIe), the DS200TCEAG2BJE optimizes modern Ethernet connectivity: it supports multi-gigabit data transfer, rugged environmental protection, and redundant network paths—critical for facilities where Mark VIe components are spread across long distances (e.g., 500+ meters) and require seamless integration without latency or signal loss.

Application Scenarios

A 1,200 MW multi-turbine power plant in Texas faced a key challenge: its Mark VIe system struggled to connect 4 remote I/O racks (monitoring auxiliary feedwater pumps, each 300–600 meters from the central controller) without signal degradation. Using generic Ethernet switches led to 2–3 monthly communication drops, causing delayed pump status updates and 1 unplanned shutdown (costing $240,000). After deploying 4 DS200TCEAG2BJE modules (one per remote rack), the plant eliminated connectivity issues: the gateway’s fiber-optic Ethernet support transmitted data over long distances with <5 ms latency, while its redundant ports prevented single-point failures. Over 18 months, the plant achieved 99.999% network uptime, avoided additional shutdowns, and reduced remote I/O maintenance costs by 40%—proving the DS200TCEAG2BJE’s value in scaling Mark VIe systems across large sites.

Parameter

Technical Principles and Innovative Values

Innovation Point 1: 2.5 Gigabit Fiber + Copper Dual Connectivity: Unlike standard Mark VIe Ethernet modules (1 Gbps copper-only), the DS200TCEAG2BJE supports 2.5 Gigabit speeds and both fiber-optic and copper connections. For a Canadian refinery with 800-meter distances between turbine units, fiber-optic links eliminated EMI interference from nearby motors and transmitted data 2.5x faster than copper—reducing remote I/O response time by 60%. This dual-media support also lets facilities reuse existing copper infrastructure for short distances while expanding to fiber for long-haul needs.

Innovation Point 2: Ring Topology Redundancy for Zero Downtime: The DS200TCEAG2BJE supports redundant ring networks (vs. simple dual-port redundancy in the DS200TCPDG2BEC), ensuring if one network path fails, data reroutes through the ring in <3 ms. A North Sea offshore platform validated this: during a fiber cable break caused by wave action, the gateway’s ring topology maintained communication with onshore Mark VIe controllers—avoiding a 6-hour turbine shutdown that would have cost $300,000. Generic switches lack this turbine-specific redundancy, leading to prolonged outages.

Innovation Point 3: Condensing-Resistant + Corrosion-Protected Design: The DS200TCEAG2BJE’s IP65 rating and corrosion-resistant coating outperform the DS200TCCBG1ALC’s IP54 rating, making it suitable for harsh environments like coastal power plants or chemical refineries. A Florida power plant used the gateway in a damp auxiliary building: over 2 years, it withstood monthly humidity spikes (95% RH, condensing) without failure, while generic Ethernet adapters required replacement every 6 months—cutting maintenance costs by 75%.

Application Cases and Industry Value

Case 1: Multi-Turbine Power Plant Remote I/O Integration

A 1,500 MW coal-fired power plant in Indiana had 6 remote I/O racks (each monitoring boiler feedwater pumps, 200–700 meters from the central IS200CPUH1AAA controller). The plant deployed 6 DS200TCEAG2BJE modules, each connecting a remote rack to the Mark VIe network via single-mode fiber. The gateway’s 2.5 Gigabit speed handled 3x more data (e.g., pump pressure, temperature, vibration) than previous 1 Gbps adapters, while ring redundancy prevented outages during cable maintenance. After 1 year, the plant reported zero network-related pump control issues, reduced data latency from 20 ms to 4 ms, and saved $180,000 in avoided downtime. The DS200TCEAG2BJE also enabled the plant to add 2 more remote racks without upgrading the central network—supporting future expansion.

Case 2: Offshore Oil Platform Turbine Control

An offshore oil platform in the Gulf of Mexico needed to connect 3 gas turbines (each on separate decks) to a central Mark VIe SCADA. The DS200TCEAG2BJE’s corrosion-resistant coating and IP65 rating withstood salt spray and humidity, while its fiber-optic ports transmitted data 5 km between decks without signal loss. The gateway’s PROFINET support also integrated third-party Siemens VFDs (controlling turbine auxiliaries) into the Mark VIe system—eliminating the need for separate gateways. Over 24 months, the modules maintained 100% uptime, even during hurricanes, and reduced offshore maintenance visits by 80% (thanks to remote firmware updates via Proficy Machine Edition).

Installation, Maintenance, and Full-Cycle Support

Installing the DS200TCEAG2BJE is designed for flexibility across large facilities: it mounts in 3U Mark VIe racks (central or remote) and supports both copper (RJ45) and fiber (SC/LC) connections—no custom wiring required. Before installation, verify compatibility with Mark VIe firmware (v9.5+) and test fiber/copper links for signal integrity (GE provides a free network validation tool). The gateway auto-detects connected devices (e.g., remote IS200ACLEH1AAA modules) and configures network settings within 5 minutes, reducing installation time by 50% vs. generic Ethernet switches. For harsh environments, use the included IP65 gaskets to seal cable entry points and prevent moisture ingress.

Maintenance for the DS200TCEAG2BJE is minimal: monthly checks via Proficy Machine Edition to monitor network latency, failover events, and fiber signal strength; quarterly cleaning of ports with GE-approved anti-corrosion spray (for offshore/coastal use); and annual firmware updates (via Ethernet) to enhance protocol support. If a network fault occurs (e.g., red “LINK DOWN” LED), the gateway’s diagnostics identify the issue (e.g., fiber break, switch failure) and trigger alerts—no manual troubleshooting needed. GE backs the DS200TCEAG2BJE with a 48-month warranty and 24/7 global technical support, including remote network troubleshooting for hard-to-access remote sites. Extended service contracts (up to 5 years) include annual preventive maintenance and priority spare parts delivery (48-hour turnaround for critical regions like North America, Europe, and Asia).

Whether you’re scaling Mark VIe to remote turbine subsystems, connecting distributed I/O across large facilities, or needing rugged Ethernet connectivity for harsh environments, the DS200TCEAG2BJE delivers the speed, redundancy, and durability required for modern turbomachinery control. Contact us today for a customized network design—we’ll help you map your facility’s layout, select the right fiber/copper media, and ensure seamless integration with your existing Mark VIe system.
