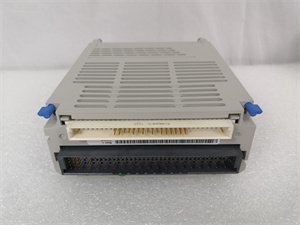

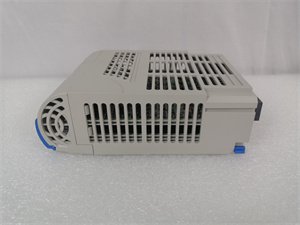

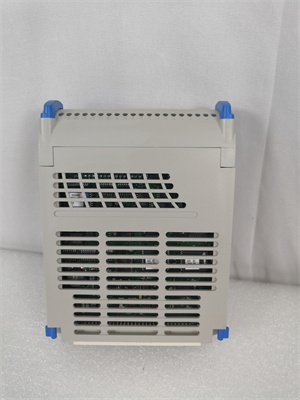

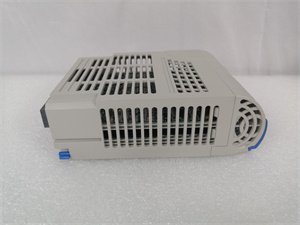

Emerson 5X00070G04 Ovation High-Speed Analog Input Module

The Emerson 5X00070G04 is a high-performance analog input module designed for critical industrial applications, particularly within the Ovation control system by Emerson. This module is engineered to deliver precise signal acquisition and processing, making it ideal for industries such as power generation, oil & gas, and process automation. With its advanced features and robust design, the 5X00070G04 ensures reliable operation in demanding environments.

Product Overview

The Emerson 5X00070G04 serves as a key component in industrial control systems, enabling the conversion of analog signals into digital data for monitoring and analysis. Built for the Ovation platform, it supports up to 8 channels of high-speed analog input, with a 14-bit resolution and a wide range of signal types, including thermocouples (±20mV, ±50mV, ±100mV) and low-level voltage inputs. Its modular design allows seamless integration into existing systems, while its rugged construction ensures durability in harsh industrial settings.

Product Parameters

Advantages and Features

• High-Speed Performance: Capable of sampling up to 100 samples per second, the 5X00070G04 ensures real-time data acquisition for dynamic processes.
• Wide Input Range: Supports multiple signal types, including thermocouples and low-level voltages, eliminating the need for external signal conditioning.
• Reliability: Engineered with redundancy and fault-tolerant design, it minimizes downtime and ensures continuous operation in critical applications.
• Easy Integration: Designed for the Ovation system, it simplifies configuration and reduces installation complexity.
• Longevity: Built with high-quality components, the module offers a 1-year warranty and compatibility with Emerson’s long-term support programs.

Application Areas and Case Studies

Industry Applications:

• Power Generation: Monitoring temperature and pressure in turbines and boilers.
• Oil & Gas: Real-time analysis of process variables in refineries and offshore platforms.
• Chemical Processing: Precise control of reaction parameters in production lines.

Case Study:

In a petrochemical plant, the 5X00070G04 was deployed to monitor thermocouple signals from 16 reactors. Its high-speed sampling and accuracy enabled operators to detect anomalies within milliseconds, preventing potential equipment failures and reducing maintenance costs by 20%.

Competitor Comparison

The 5X00070G04 outperforms many analog input modules in the market with its combination of 14-bit resolution, high-speed sampling, and wide input range. Unlike some competitors, it supports thermocouple inputs directly without additional modules, streamlining system design. Its compatibility with the Ovation ecosystem also ensures seamless integration, a feature not universally offered by other brands.

Selection Recommendations

• Compatibility: Ensure the module aligns with your Ovation system’s architecture and software version.
• Input Requirements: Verify signal types and ranges match your application (e.g., thermocouples vs. voltage inputs).
• Expansion Needs: Consider future scalability by selecting modules with additional channels if required.
• Budget: Balance cost with features like redundancy and advanced diagnostics.

Precautions

• Installation: Use proper ESD protection during handling and follow DIN rail mounting guidelines.
• Environment: Operate within -20°C to +60°C and avoid exposure to moisture or corrosive gases.
• Maintenance: Regularly check for loose connections and update firmware to benefit from security patches and performance improvements.
