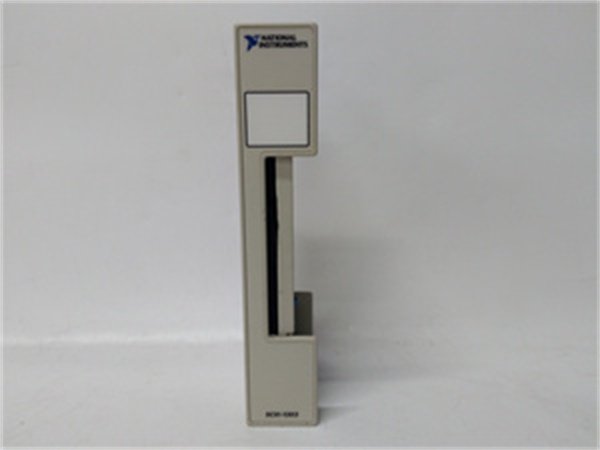

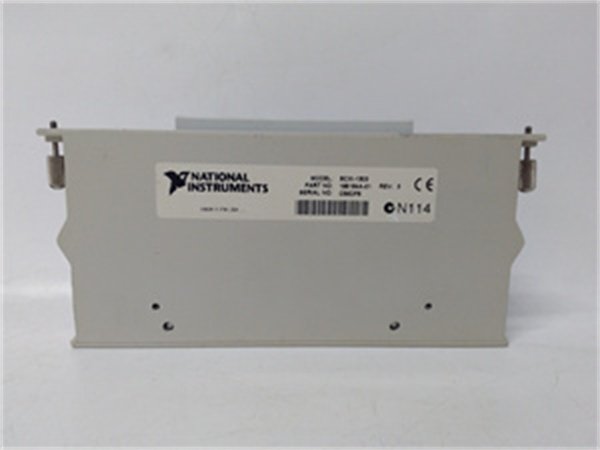

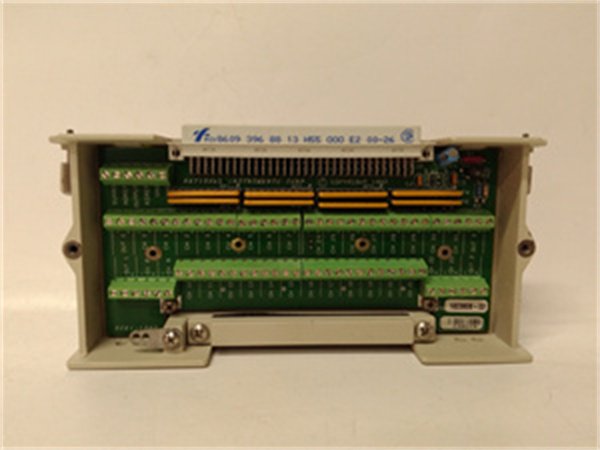

NI SCXI-1303 Isothermal Terminal Block

The National Instruments SCXI – 1303 is a 32 – channel isothermal terminal block, an integral part of the SCXI (Signal Conditioning eXtension for Instrumentation) platform. It serves as a specialized interface, designed to meet the demands of high – precision temperature and voltage measurements in data acquisition, testing, and control systems.

Functionally, the SCXI – 1303 is engineered to connect various types of sensors, with a particular emphasis on thermocouples, to compatible SCXI modules like the SCXI – 1100, SCXI – 1102, SCXI – 1102B, and SCXI – 1102C. Its modular design allows for seamless integration within the SCXI ecosystem, enhancing the overall functionality of the measurement and control setup. Whether in a research laboratory conducting in – depth material analysis or an industrial plant monitoring critical processes, the SCXI – 1303 plays a vital role in ensuring accurate data collection.

Detailed Parameter Table

Core Advantages and Technical Highlights

High – Precision Thermocouple Measurements

The SCXI – 1303 stands out for its ability to perform extremely accurate thermocouple measurements. It features an isothermal copper assembly, which minimizes errors caused by thermal gradients between terminals and the cold – junction sensor. This is crucial in applications where precise temperature readings are required, such as in scientific research on materials’ thermal properties or in industrial processes where temperature control is critical for product quality.

Open – Thermocouple Detection

Incorporating dedicated circuitry for open – thermocouple detection, the SCXI – 1303 adds an extra layer of reliability. In a large – scale industrial data acquisition system with numerous thermocouples, this feature allows for quick identification of any malfunctioning sensors. This not only saves time in troubleshooting but also ensures the integrity of the overall data collection process, as incorrect data from an open thermocouple can lead to misinterpretation of results.

Versatile Ground Referencing

The terminal block offers automatic ground referencing for floating (non – grounded) thermocouples. When used with the SCXI – 1102 or SCXI – 1102B/C modules, it provides a high – impedance path (10 MΩ) from the negative input terminal to ground. This versatility enables the system to work dependably with both floating and grounded thermocouples, accommodating different sensor setups and electrical environments.

Typical Application Scenarios

In industrial manufacturing, the SCXI – 1303 is highly useful for monitoring and controlling temperature – sensitive processes. For example, in a semiconductor manufacturing plant, precise temperature control is essential during the wafer fabrication process. The SCXI – 1303 can be used to connect thermocouples placed at various points in the manufacturing equipment to the SCXI – 1100 or SCXI – 1102 modules. This allows for real – time temperature monitoring, ensuring that the process remains within the optimal temperature range and minimizing the risk of product defects.

In scientific research laboratories, especially those focused on materials science, the SCXI – 1303 plays a crucial role. When studying the phase transitions of materials under different temperature conditions, accurate temperature measurement is fundamental. The SCXI – 1303 enables researchers to connect multiple thermocouples to the SCXI system, providing reliable data for their experiments. This helps in understanding the material’s behavior and developing new materials with improved properties.

For test and calibration facilities, the SCXI – 1303 is an ideal choice. When calibrating temperature – measuring instruments, high – precision temperature references are required. The SCXI – 1303 can be used to connect reference thermocouples to the SCXI system, ensuring accurate calibration and quality control of temperature – related equipment.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the SCXI – 1303, ensure the SCXI chassis is in a clean, dry, and well – ventilated environment. Power off the chassis to prevent any electrical accidents during installation. Gather standard hand tools such as screwdrivers, which are required to secure the terminal block in place. When handling the SCXI – 1303, take care not to damage the screw terminals or any internal components. Identify the appropriate slot on the front of the SCXI chassis where the SCXI – 1303 will be installed, following the chassis layout guidelines provided in the SCXI system documentation.

Maintenance Suggestions

For daily maintenance, visually inspect the SCXI – 1303 for any signs of physical damage, such as loose screws or damaged terminals. Check for any signs of overheating, which could indicate a potential electrical issue. If an open – thermocouple detection error is flagged, refer to the user manual to troubleshoot. First, check the thermocouple connections at the SCXI – 1303 terminal block. In case of a malfunction, if a spare part replacement is needed, always use genuine NI replacement parts to ensure compatibility and maintain the high – performance standards of the SCXI – 1303. Regularly cleaning the terminal block to remove dust and debris can also help in maintaining its optimal performance.

Service and Guarantee Commitment

NI offers a comprehensive quality assurance program for the SCXI – 1303. The product undergoes extensive testing during the manufacturing process to ensure it meets the highest industry standards for performance and reliability. In terms of after – sales service, NI provides detailed user manuals and installation guides, which are available online for easy access. Technical support is accessible through user forums, where users can interact with NI experts and other users to solve any issues they may encounter. In case of a product defect within the warranty period, NI will provide repair or replacement services. This commitment to quality and customer support gives users the confidence that the SCXI – 1303 is a reliable choice for their automation and measurement needs.
