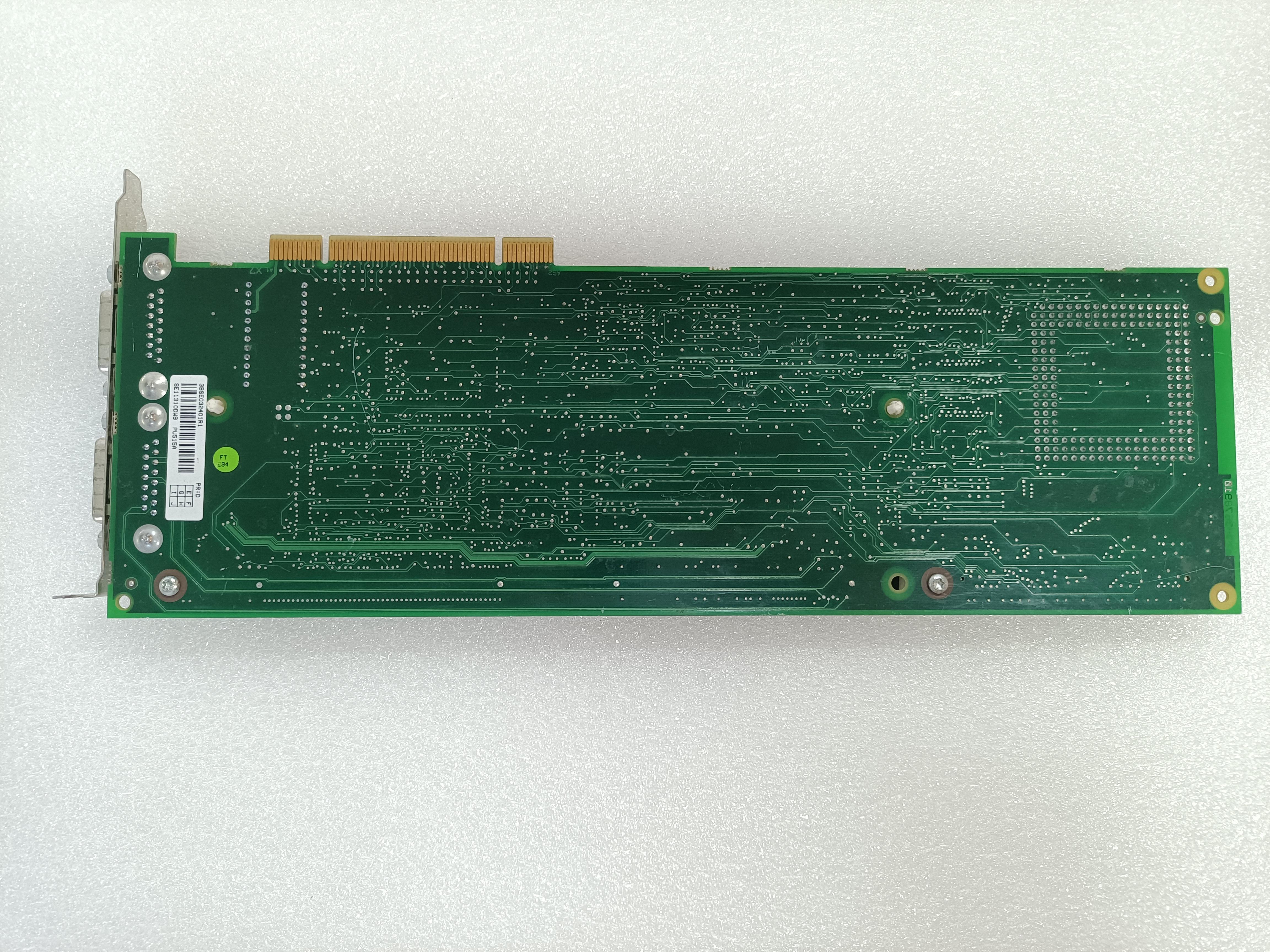

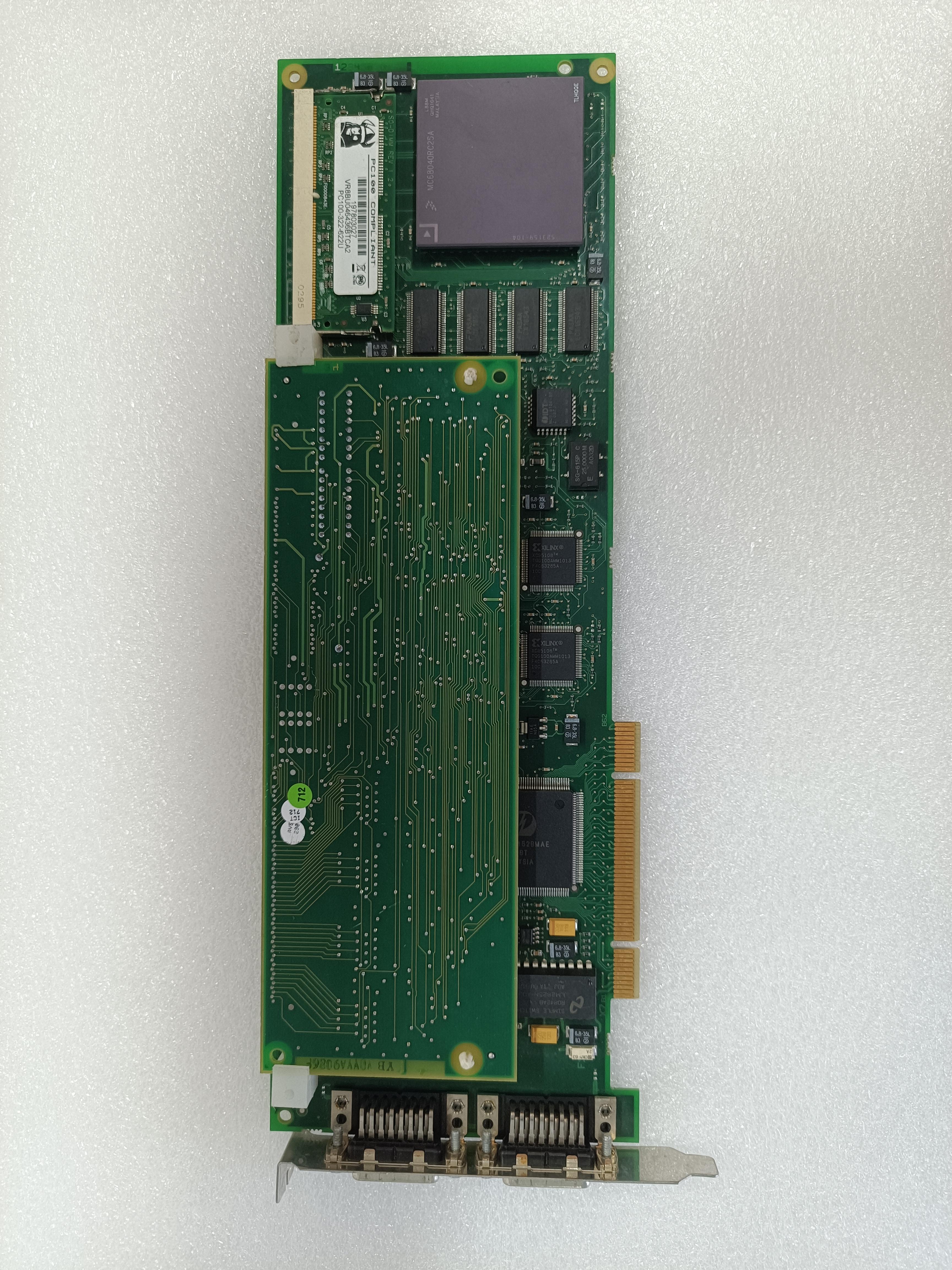

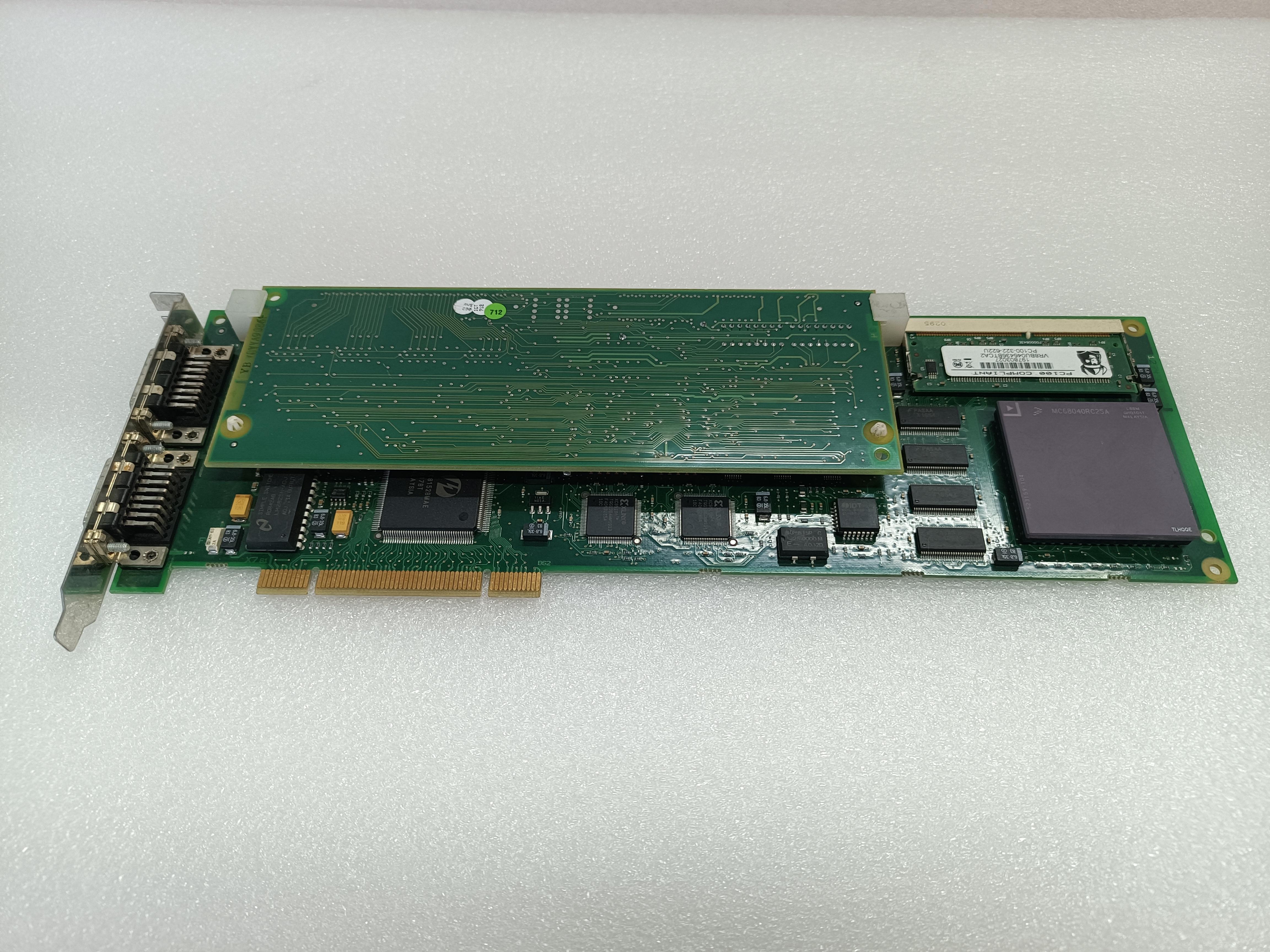

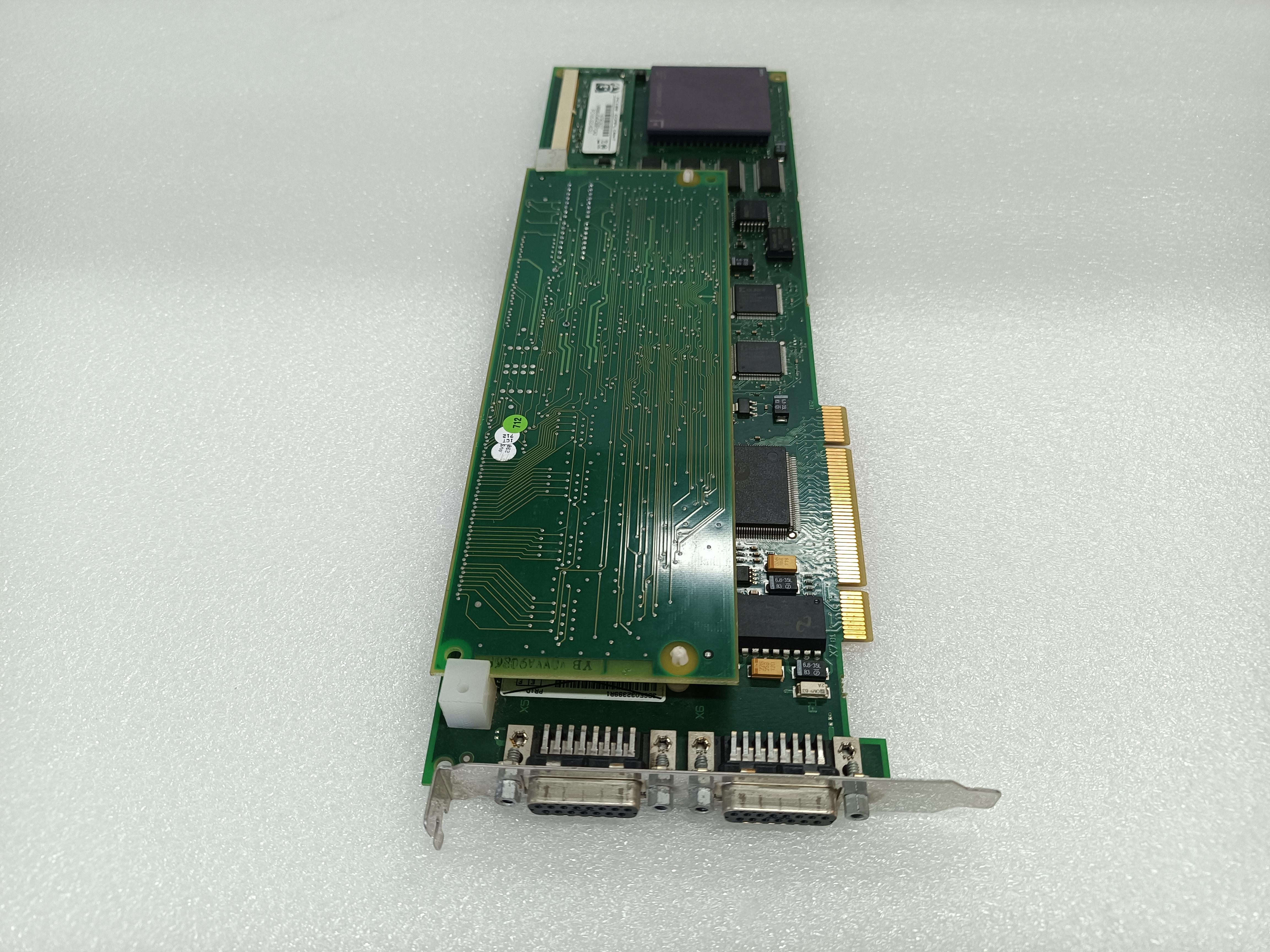

ABB PU515A 3BSE032401R1 Real-Time Accelerator (RTA) Board

The ABB PU515A 3BSE032401R1 is a Real-Time Accelerator (RTA) board designed for ABB’s Advant OCS systems, including the Advant Station 500 series, to enhance real-time processing and communication in industrial automation. As a high-performance module, the PU515A 3BSE032401R1 offloads computational tasks from the main CPU, enabling faster data transfer and reduced latency in critical applications. It features a 32-bit/64-bit PCI/PCI-X interface (33 MHz/100/133 MHz), dual-channel MB300 communication (via CS503V1 module), and 16 MB RAM for handling complex control algorithms. With two 15-pin D-sub connectors, it integrates seamlessly with field devices, sensors, and actuators. The PU515A 3BSE032401R1 is ideal for industries requiring rapid data processing, such as power generation, manufacturing, and oil/gas, where real-time responsiveness is critical.

Product Parameters

Advantages and Features

• Real-Time Performance: Reduces CPU load by 40–60% for faster control loops (e.g., PID algorithms, HMI updates).
• Dual-Channel Communication: Supports redundant MB300 networks for reliable data exchange with field devices.
• Flexible Integration: Compatible with 32-bit/64-bit PCI slots (retrofit-friendly for legacy systems).
• Compact Design: Space-saving form factor (34.2×25.9×7.42 cm) for modular control cabinets.
• Industrial Grade: Operates in harsh environments (-25°C to +60°C) with EMI/RFI protection.
• Hot-Swap Capability: Replaceable without system shutdown (requires compatible backplane).

Case Study: A power plant upgraded its boiler control system with PU515A 3BSE032401R1, achieving 20% faster response times in turbine speed regulation, reducing downtime by 15%.

Application Areas and Use Cases

• Industries: Power generation, oil/gas, manufacturing, water treatment.
• Scenarios: Real-time data acquisition, PLC/HMI acceleration, distributed control systems (DCS).
• Use Case: A chemical plant used the PU515A 3BSE032401R1 to manage 500+ analog inputs in a distillation unit, enabling sub-10ms data processing for precise temperature control.

Competitor Comparison

Compared to generic RTAs:

• Native Compatibility: Optimized for ABB Advant OCS, ensuring plug-and-play integration (vs. generic PCI cards requiring custom drivers).
• Redundancy Support: Dual MB300 channels for fault tolerance (vs. single-channel alternatives).
• Performance Density: 16 MB RAM + dedicated processing cores vs. 8–12 MB in standard modules.
• Long-Term Support: Backed by ABB’s lifecycle management (vs. short-lived third-party solutions).

Selection Recommendations

• System Compatibility: Verify compatibility with ABB Advant OCS (e.g., Advant Station 500, AC 800M).
• Processing Needs: Choose PU515A for mid-scale systems (500–1,000 I/O points); upgrade to PU518/PU519 for larger installations.
• Interface Requirements: Ensure PCI/PCI-X slots are available (avoid USB-dependent modules for deterministic performance).
• Budget: Balances cost ($500–$1,500) with industrial-grade reliability (vs. premium-brand RTAs costing 20–30% more).

Precautions

• Installation:
  • Use anti-static gear; avoid bending PCI pins.
  • Securely fasten the module to the backplane (torque screws to 0.5 N·m).
• Power Management: Ensure stable 3.3V/5V supply (voltage spikes >10% may damage the board).
• Maintenance:
  • Clean dust from vents quarterly (use compressed air).
  • Replace thermal paste every 3 years (for prolonged high-temperature use).
• Software: Update firmware via ABB’s System 800xA Toolbox (critical for security patches).
