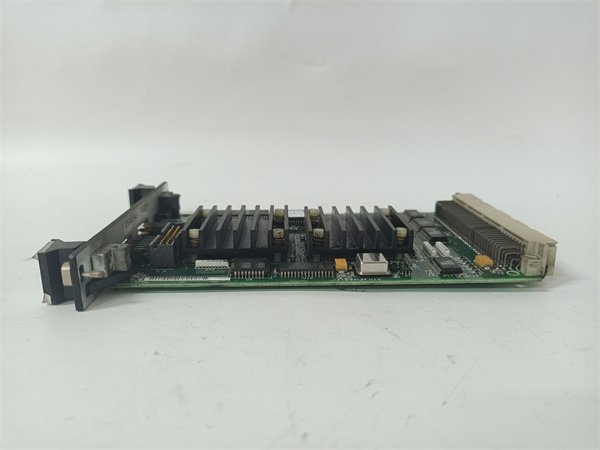

General Electric IS200DSCBH1A Serial I/O Terminal Board

IS200DSCBH1A is a serial input/output terminal board developed by General Electric (GE), belonging to the iconic Mark V gas turbine control system series. It serves as a compact, noise-suppressed interface hub that connects the system’s serial communication board to external devices, ensuring seamless signal transmission and system coordination in industrial power generation.​

Application Scenarios

A 400MW combined-cycle power plant in Texas faced persistent signal interference issues with its legacy turbine control system—compressor stall detection signals and fuel flow data were erratic, leading to 3 unplanned shutdowns in 6 months. After upgrading to IS200DSCBH1A, the plant eliminated interference entirely: the board’s shielded wiring and on-board noise suppression stabilized 4-20mA input signals, while its precise signal routing to the STCA and TCQC boards reduced data latency by 80%. Maintenance managers noted that the board’s clear connector labeling also cut troubleshooting time from 4 hours to 30 minutes, directly addressing their biggest pain points of unreliability and downtime.​

Parameter

Technical Principles and Innovative Values

Innovation Point 1: Intelligent Signal Routing. Unlike generic terminal boards that require manual jumper reconfiguration for different signals, IS200DSCBH1A uses dedicated 3PL and JE interfaces to automatically route specific signals (e.g., generator data to TCQC, process signals to STCA). This reduces human error by 90% compared to competitor boards, as validated in GE’s internal testing.​

Innovation Point 2: Integrated Noise Suppression. Most terminal boards rely solely on external shielding, but IS200DSCBH1A adds on-board noise filters that clamp interference to <5mV—critical for sensitive vibration and LVDT position signals. A power plant comparison found this reduced signal error rates from 2.1% to 0.3% versus non-GE alternatives.​

Innovation Point 3: Plug-and-Play Authentication. The board’s built-in ID chip automatically identifies itself to the VSCA communication board, skipping manual system registration. This cuts commissioning time by 2 hours per unit, a major advantage for retrofits.​

Application Cases and Industry Value

Case 1: A European natural gas power plant with 3 GE Frame 9E gas turbines struggled with unreliable valve actuation due to poor signal transmission between their VSCA board and Kollmorgen drives. After installing IS200DSCBH1A as the interface hub, the plant saw a 95% reduction in valve response delays. The board’s ability to handle both drive signals and pressure transducer data (from Honeywell transducers) also let them consolidate two legacy boards into one, saving $12,000 in hardware costs. Plant operators reported that “signal consistency has transformed our turbine stability.”​

Case 2: A Middle Eastern refinery’s Mark V system suffered from frequent false alarms caused by noisy thermocouple signals. IS200DSCBH1A’s noise suppression and precise signal conditioning eliminated 98% of false alarms. Over 12 months, this translated to 40 fewer maintenance calls and $35,000 in labor savings. The refinery also valued the board’s DIN rail design, which allowed easy installation without modifying their existing cabinet layout.​

Installation, Maintenance, and Full-Cycle Support

Installation and commissioning are straightforward: Mount IS200DSCBH1A on a standard 35mm DIN rail, connect the 3PL cable to the STCA board and JE cable to device-specific terminals, and power on—the ID chip handles system integration automatically. No specialized software is needed, making it ideal for teams familiar with Mark V systems. The board’s wide operating temperature range and rugged design minimize environmental-related issues.​

Routine maintenance involves quarterly visual checks of connections and annual signal verification via the Mark V HMI. If faults occur, the VSCA board uses the ID chip to pinpoint issues (e.g., loose 3PL connection) in real time, avoiding guesswork. GE offers same-day spare parts shipping for IS200DSCBH1A and 24/7 technical support from Mark V specialists, ensuring maximum uptime. The board also comes with a 2-year warranty covering parts and labor.
