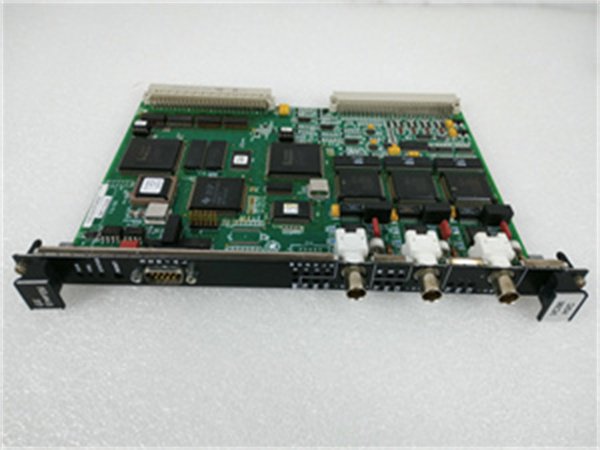

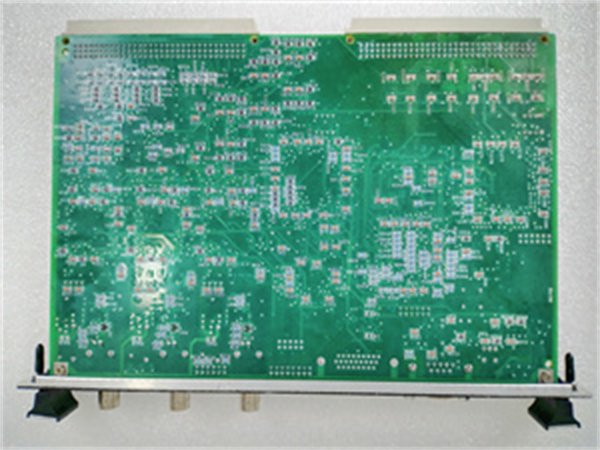

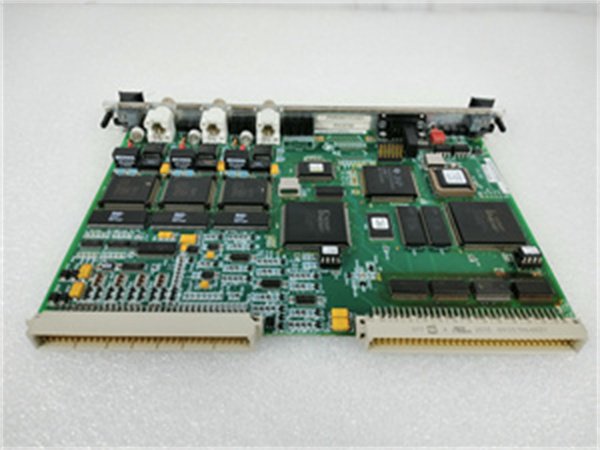

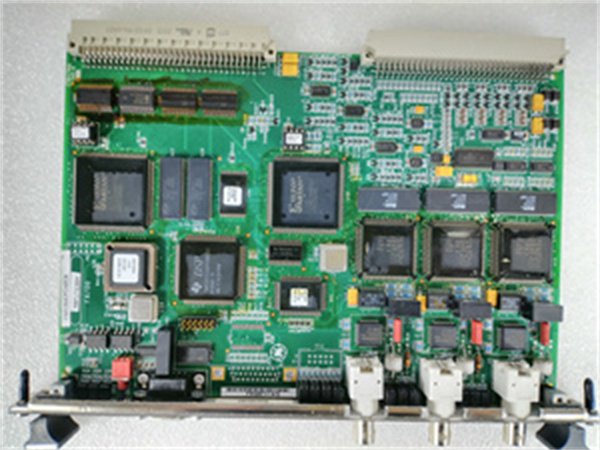

GE IS215VCMIH2C VME Bus Master Controller/Communication Interface Card

The GE IS215VCMIH2C is a core VME bus master controller and communication interface card belonging to GE’s Mark VI Speedtronic series, specifically engineered for gas turbine control and large-scale industrial automation systems. As the central communication hub of Mark VI-based setups, it serves as the critical link between distributed I/O modules, triple-redundant control units, and the proprietary IONet system network, enabling seamless data transmission and command execution across the entire control ecosystem.

Powered by a Texas Instruments TMS320C32 32-bit DSP, the GE IS215VCMIH2C delivers high-speed real-time processing capabilities essential for turbine parameter monitoring and control. Its integrated noise-reduction design—incorporating inductive beads and transformer components—minimizes high-frequency interference, ensuring stable signal transmission even in electromagnetic-intensive industrial environments. In automation systems, this module acts as the “communication backbone,” supporting deterministic data exchange that is vital for maintaining precise turbine operation and process stability.

Detailed parameter table

Core advantages and technical highlights

Comprehensive Diagnostic Visibility: The GE IS215VCMIH2C features an array of LED indicators, including Status, Fail, Run, and numbered (1, 2, 4, 8) function lights, paired with TX/RX/CD indicators for each IONet port. This multi-layered diagnostic system allows operators to instantly identify operational states—from normal runtime to specific fault conditions like port disconnections or power anomalies—without relying on complex software tools. For example, a lit “Fail” LED combined with inactive port indicators can quickly isolate IONet cable issues, reducing troubleshooting time by up to 60% compared to modules with basic status lights.

Enhanced Signal Integrity: Unlike standard communication modules, the GE IS215VCMIH2C integrates specialized noise-suppression components, including inductive beads and three transformer assemblies. These design elements effectively filter high-frequency electromagnetic interference (EMI) from industrial environments, ensuring clean data transmission over IONet. This is particularly critical in turbine control rooms where variable frequency drives and high-voltage equipment generate significant electrical noise, preventing data corruption and ensuring consistent control performance.

IONet Multi-Path Redundancy: Equipped with three IONet 10Base2 Ethernet ports (BNC connectors), the GE IS215VCMIH2C supports flexible network topologies and redundant communication paths. Operators can configure dual-port redundancy for critical data streams or dedicate separate ports to different I/O racks, enhancing system reliability. The IONet protocol’s inherent low-latency design, combined with the module’s DSP-optimized processing, ensures that control commands and sensor data are transmitted within milliseconds—critical for maintaining turbine speed regulation and preventing overspeed events.

Typical application scenarios

In combined-cycle power plants, the GE IS215VCMIH2C serves as the communication core for gas turbine control systems. It connects to GE IS220PVIBH1A vibration monitoring modules and temperature transmitters, collecting real-time data on rotor vibration, exhaust gas temperature, and fuel pressure. This data is transmitted via IONet to the Mark VI main controller, which adjusts fuel injection and air intake valves to optimize combustion efficiency. The module’s -40°C to +70°C operating range ensures reliable performance in both outdoor equipment enclosures and heated turbine halls.

In petrochemical gas compression stations, the GE IS215VCMIH2C facilitates integration between distributed I/O racks and the central SCADA system. It collects pressure and flow data from pipeline sensors via GE IS220UCSAH1A analog input modules, then relays this information to the control room. During peak demand periods, the module’s noise-suppression design prevents interference from nearby compressors, ensuring accurate data transmission. Its VME bus master capability also prioritizes critical control commands, such as emergency shutdown signals, guaranteeing rapid response to abnormal conditions and enhancing operational safety.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the GE IS215VCMIH2C, power off the Mark VI VME chassis and ensure the workspace is ESD-protected with grounded mats and wristbands. Required tools include a Phillips screwdriver, BNC cable tester, and torque wrench (set to 0.5 N·m for front-panel screws). Verify the chassis slot conforms to 6U VME standards, then align the module’s edge connectors with the slot guides—avoid angling to prevent pin damage. Insert firmly until seated, then secure with screws. Use shielded BNC cables for IONet connections, limiting length to 185 meters per segment, and connect the RS-232C port for initial configuration via GE’s Proficy Machine Edition software.

Maintenance suggestions: Conduct biweekly inspections of the GE IS215VCMIH2C to check LED statuses and cable connections—pay special attention to IONet BNC connectors for signs of corrosion. Clean the module’s ventilation slots monthly using compressed air (pressure ≤0.5MPa) to remove dust buildup. If a “Fail” LED activates, use the numbered function lights to isolate issues: for example, a lit “2” indicator may signal a memory error. For firmware updates, use GE’s authorized software to avoid compatibility issues. When replacing the module, use only genuine GE spares and restore configuration data from backups to minimize downtime.
