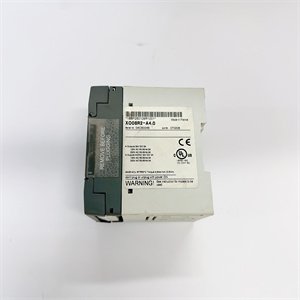

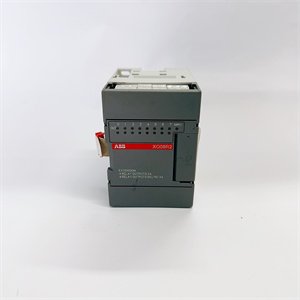

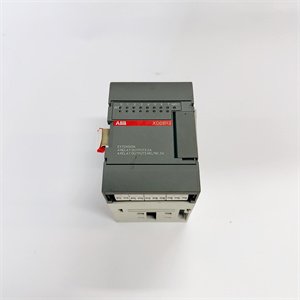

ABB XO08R2 1SBP260109R1001 Relay Output Extension Module

The ABB XO08R2 1SBP260109R1001 is a high-performance relay output extension module designed for industrial automation systems, particularly compatible with ABB’s DCS (Distributed Control System) and PLC (Programmable Logic Controller) setups. As part of the ABB DCS Control I/O series, this module enhances system flexibility by expanding relay output capabilities, enabling precise control of industrial processes. With support for Profinet communication, the XO08R2 1SBP260109R1001 integrates seamlessly with modern automation networks, acting as a slave device for PLC systems without requiring additional hardware. Its compact design, rugged construction, and advanced diagnostics make it ideal for applications demanding reliability and efficiency.

Product Parameters

Advantages and Characteristics

1. Profinet Integration:

   • Seamless slave communication with PLC systems (e.g., ABB’s ADVANT OCS) via Profinet, eliminating the need for additional hardware.
   • Configurable via ABB’s control panel (Industrial Network settings), ensuring quick setup and compatibility with master stations.

2. Reliability and Durability:

   • Industrial-grade construction with electrical isolation for noise immunity.
   • Red LED diagnostics for error detection (e.g., overload, short circuit).
   • 12-month warranty and factory-sealed packaging for long-term performance.

3. Flexible Configuration:

   • 8 individually configurable relay outputs (24V DC) for diverse control tasks (e.g., motor drives, valves).
   • Support for up to 256 bytes of Profinet data exchange, enabling complex signal handling.

4. Energy Efficiency:

   • Low power consumption (optimized for industrial continuous operation).

Application Areas and Case Studies

Industry Applications:

• Manufacturing: Machine control, assembly lines, and robotics.
• Energy: Power plant automation, HVAC systems.
• Process Control: Petrochemical, water treatment, and food processing.

Case Study:

A European automotive factory integrated the XO08R2 1SBP260109R1001 into its assembly line PLC system. By expanding relay outputs via Profinet, the system achieved real-time control of 50+ robotic arms, reducing downtime by 15% and improving precision. The module’s diagnostics helped identify faulty relays proactively, minimizing maintenance costs.

Competitive Differentiation

Compared to similar relay extension modules, the XO08R2 1SBP260109R1001 stands out with:

• Native Profinet Support: Pre-configured slave functionality (no software licenses required).
• Compact Design: Space-saving form factor for dense control cabinets.
• ABB Ecosystem Compatibility: Seamless integration with ABB’s DCS/PLC platforms (e.g., MOD 30, S800L).
• Advanced Diagnostics: Real-time error monitoring (e.g., overload detection) for predictive maintenance.

Selection Recommendations

1. Compatibility:

   • Ensure your PLC/protocol supports Profinet slave communication (e.g., ABB, Siemens, Allen-Bradley).
   • Verify voltage requirements (24V DC) and output count (8 relays).

2. Environment:

   • Rated for industrial environments (check temperature/humidity limits: -20°C to +60°C).
   • Suitable for dusty or vibration-prone settings (rugged enclosure).

3. Cost Efficiency:

   • Balance between performance and budget: The XO08R2 1SBP260109R1001 offers premium features at a competitive price compared to modular alternatives.

Installation and Maintenance Notes

1. Installation:

   • Follow ABB’s wiring guidelines (terminals for 24V DC power and relay outputs).
   • Configure Profinet station name and data bytes via the control panel (consistent with PLC settings).

2. Safety:

   • Disconnect power before wiring or servicing.
   • Avoid overloading relays (max current: 5A per channel).

3. Maintenance:

   • Regularly inspect LED indicators for faults.
   • Replace faulty modules within the warranty period (contact ABB-certified technicians).

Conclusion

The ABB XO08R2 1SBP260109R1001 is a versatile relay output extension module that combines Profinet connectivity, reliability, and ease of integration. Ideal for industrial automation, it empowers users to expand control capabilities while minimizing downtime and maintenance.
