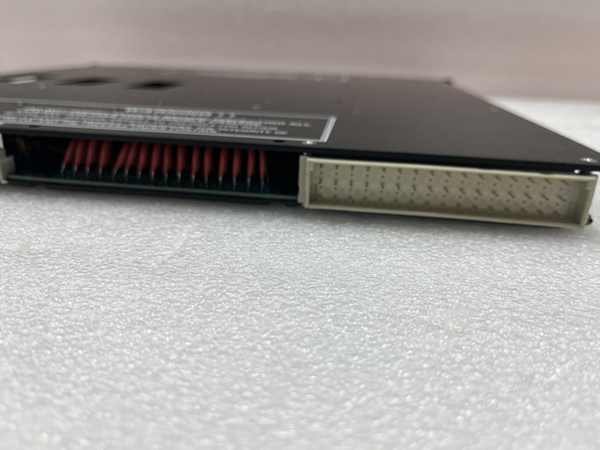

Triconex 3601E digital input module

Triconex 3601E is a high-reliability tripartite digital input module designed for safety-critical industrial automation systems. As a core component of Triconex’s Triplex® series, the 3601E is engineered to acquire digital signals from field devices with exceptional accuracy and fault tolerance, ensuring seamless integration into triple modular redundancy (TMR) architectures. This module is built to withstand harsh industrial environments while delivering deterministic performance, making it ideal for applications requiring fail-safe operation, such as emergency shutdown systems and critical process control. The 3601E plays a pivotal role in enhancing system integrity across industries like oil and gas, power generation, and chemical processing.

Product Parameters

Advantages and Features

The 3601E’s TMR architecture is a key differentiator, providing self-diagnostic capabilities and fault detection with 99% coverage, ensuring continuous operation even in the presence of single-point failures. Its galvanic isolation for each channel prevents ground loops and voltage spikes, safeguarding against electrical noise in industrial settings. The module’s hot-swappable design allows maintenance without disrupting system operation, reducing mean time to repair (MTTR) by up to 50%. For example, in a liquefied natural gas (LNG) plant, the 3601E’s ability to handle high-speed digital signals from safety switches enabled rapid detection of valve malfunctions, minimizing downtime risks.

Application Areas and Use Cases

The Triconex 3601E is widely deployed in industries requiring rigorous safety and reliability, including:

• Oil and Gas: Monitoring emergency shutdown (ESD) signals, valve positions, and motor status in offshore platforms.
• Power Generation: Managing turbine trip signals and breaker status in thermal power plants.
• Chemical Processing: Ensuring safe operation of batch reactors through real-time digital input monitoring.

Use Case: A large refinery integrated the 3601E into its TMR safety system to monitor over 80 digital inputs from fire and gas detectors. The module’s fast response time and fault tolerance allowed the system to achieve a safety integrity level (SIL) 3 rating, reducing annual risk exposure by 90%.

Competitor Comparison

Compared to non-redundant digital input modules, the 3601E offers threefold redundancy, significantly improving system availability. Its wide temperature range and EMC compliance exceed standard industrial modules, making it suitable for extreme environments where competitors’ solutions may fail. The module’s built-in diagnostics also provide more granular fault information than basic LED indicators found in simpler designs.

Selection Recommendations

When specifying the 3601E, consider:

• Safety Requirements: Ensure alignment with your application’s SIL rating (e.g., SIL 2/3).
• Channel Density: Evaluate if 16 channels meet current and future I/O needs.
• Environmental Stressors: Confirm compatibility with vibration, humidity, and electromagnetic interference (EMI) levels.
• System Integration: Verify backplane compatibility with your Triconex controller model.

Precautions

• Wiring Practices: Use shielded cables and follow Triconex’s guidelines for signal routing to minimize EMI.
• Configuration: Validate channel settings (e.g., debounce time, fail-safe states) during system commissioning.
• maintenance routine: Regularly review diagnostic reports via the Tricon software to identify aging components or intermittent faults.
