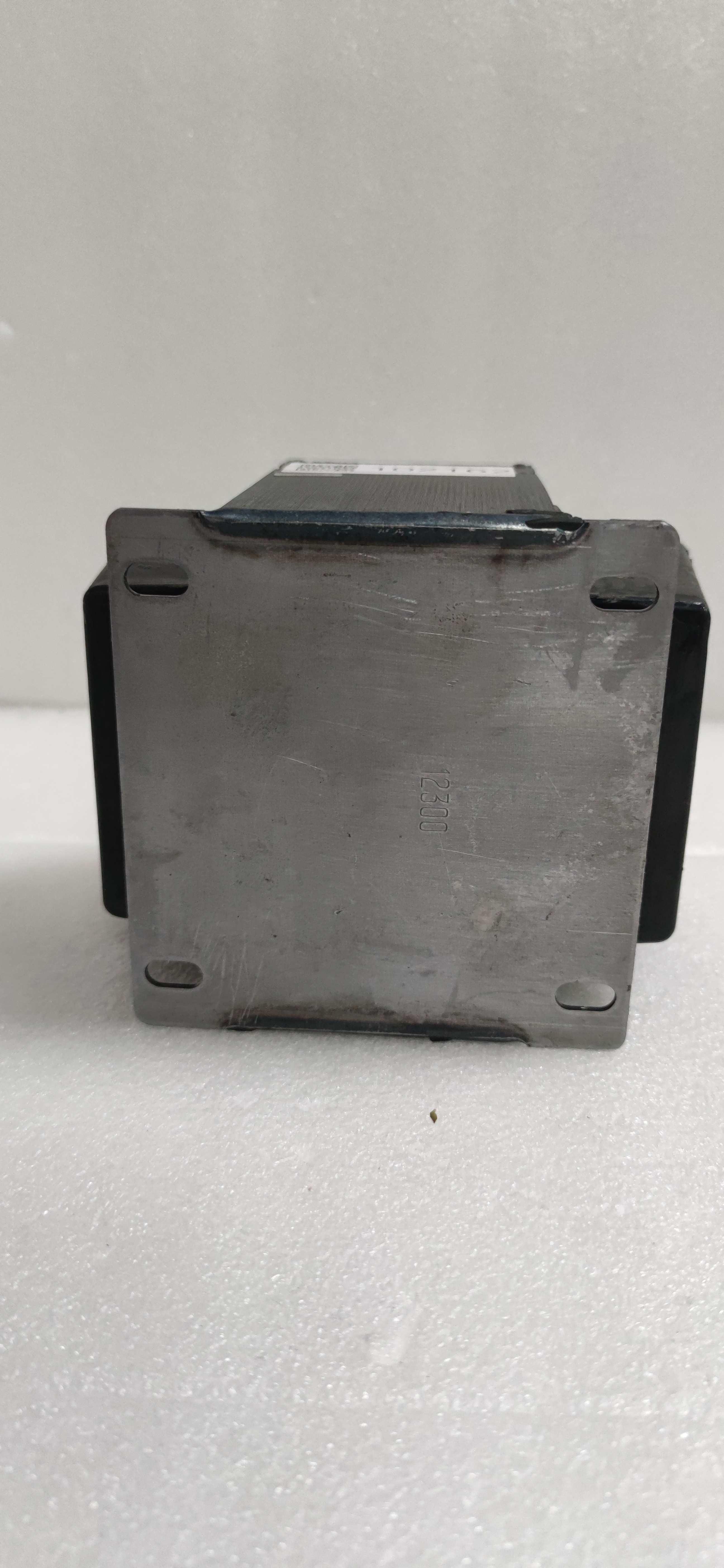

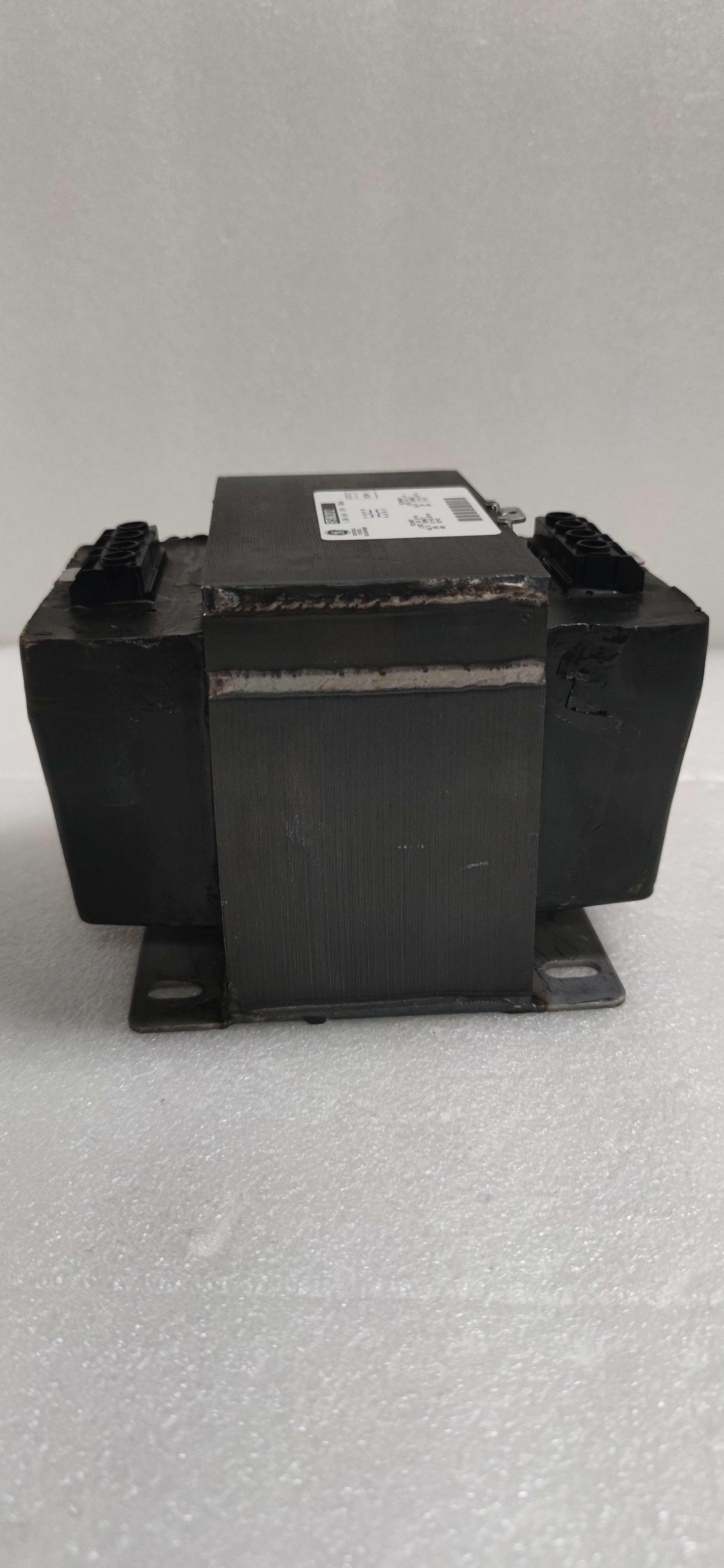

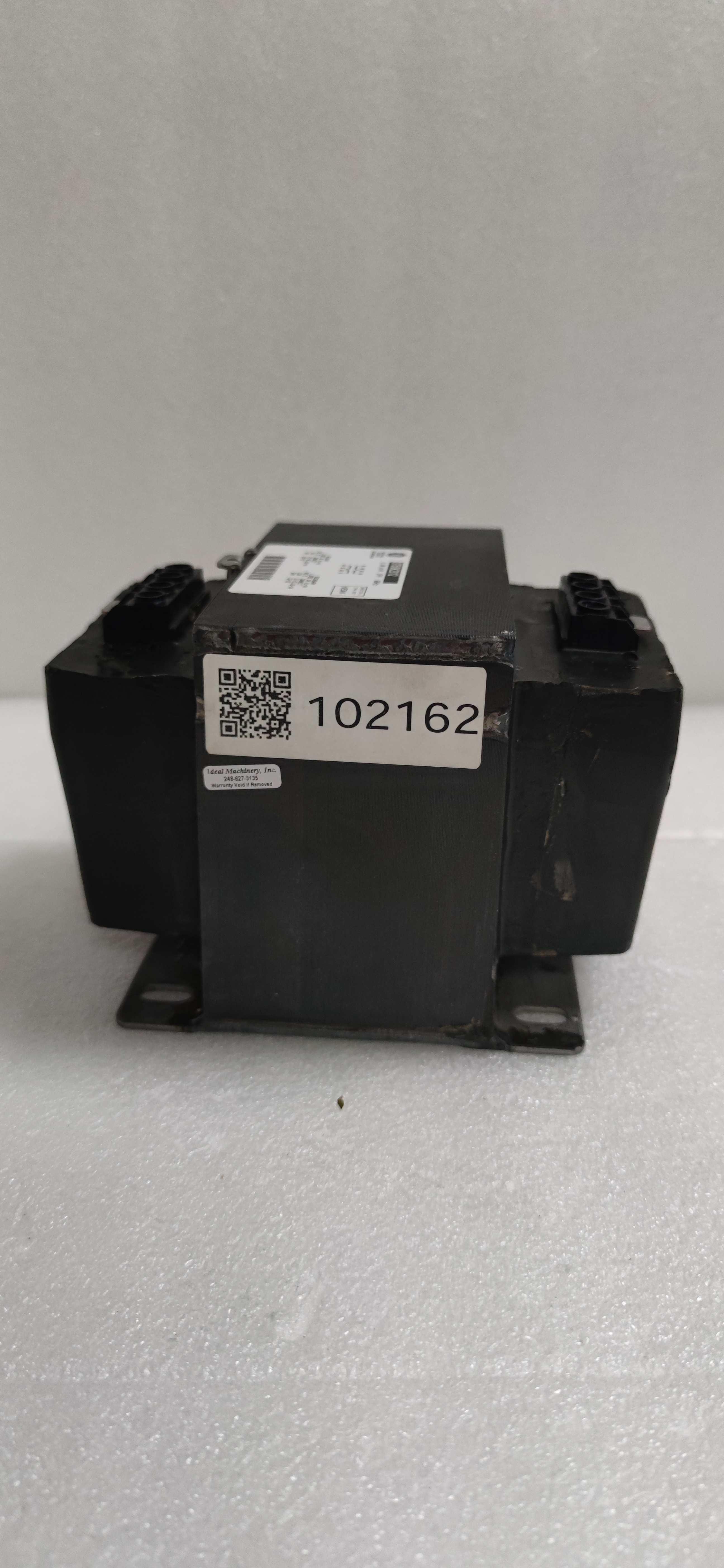

GE 9T58K2812 Type IP Control Power Transformer

The GE 9T58K2812 is a 1 kVA single-phase dry-type control power transformer engineered for industrial and commercial applications requiring reliable voltage conversion. Part of GE’s 9T58K series, the 9T58K2812 features a fully encapsulated epoxy coil and welded core, providing superior protection against moisture, dust, and vibration. With selectable primary (240/480 VAC) and secondary (120/240 VAC) voltages, it supports flexible configurations for machine tools, control panels, HVAC systems, and lighting circuits. The transformer’s rugged design includes finger-safe terminals, pressure plate connections, and an 180°C temperature class (IS-12), ensuring safety and durability in harsh environments. Certified to CE, CSA, and UL standards (File No. E2739), the 9T58K2812 delivers stable performance with a 4:1 turns ratio, making it ideal for critical industrial operations.

Technical Parameters

Advantages and Features

• Encapsulated Design: Epoxy-sealed coil resists moisture and contaminants, ensuring reliability in humid or dusty environments.
• Quiet Operation: Welded core reduces noise levels compared to traditional laminated cores.
• Voltage Flexibility: Dual primary/secondary voltage options (240/480:120/240 VAC) for versatile applications.
• Safety Features: Finger-safe terminals and rugged plastic terminal board prevent accidental contact.
• Secure Connections: Pressure plate terminals with #8 brass screws ensure corrosion-resistant wiring.
• Case Study: A manufacturing plant reduced downtime by 20% using the 9T58K2812 in a machine tool control system, leveraging its moisture-resistant design and quick-terminal replacements.

Application Areas and Use Cases

• Industries: Manufacturing, energy, HVAC, telecommunications, and industrial automation.
• Scenarios: Control panel power supply, machine tool voltage regulation, lighting isolation, and signal system backup.
• Use Case: A food processing facility deployed the 9T58K2812 to convert 480 VAC to 120 VAC for conveyor belt controls, achieving stable operation in a high-moisture environment with zero voltage fluctuations over 24 months.

Competitive Comparison

Compared to similar industrial transformers, the 9T58K2812 offers:

• Superior Protection: Full epoxy encapsulation (vs. partial coating in alternatives).
• Voltage Flexibility: Dual primary/secondary voltage options (vs. fixed-ratio models).
• Safety Compliance: Finger-safe terminals and UL/CSA certifications (vs. basic safety standards).
• Cost Efficiency: Welded core design reduces vibration-related failures and maintenance needs.

Selection Recommendations

• Voltage Compatibility: Verify primary/secondary voltage requirements (e.g., 480 VAC input for industrial grids).
• Environment: Opt for the 9T58K2812 in wet/dusty settings (encapsulated coil); choose open-frame models for clean environments.
• Space Constraints: Compact dimensions (5.31 x 4.56 inches) suit tight control panels; confirm wall/rack mounting requirements.
• Load Type: Suitable for resistive (lighting) and inductive (motors) loads up to 1 kVA.

Precautions

• Installation: Ensure proper grounding and torque terminals to 8–10 lb-in (avoid over-tightening).
• Temperature: Operate within -10°C to 40°C ambient; derate capacity in high-temperature environments.
• Fusing: Use GE-recommended fuse clips (optional) for overcurrent protection (2x–3x full-load current).
• Maintenance: Inspect terminals annually for corrosion; clean dust with a dry cloth (avoid solvents).
