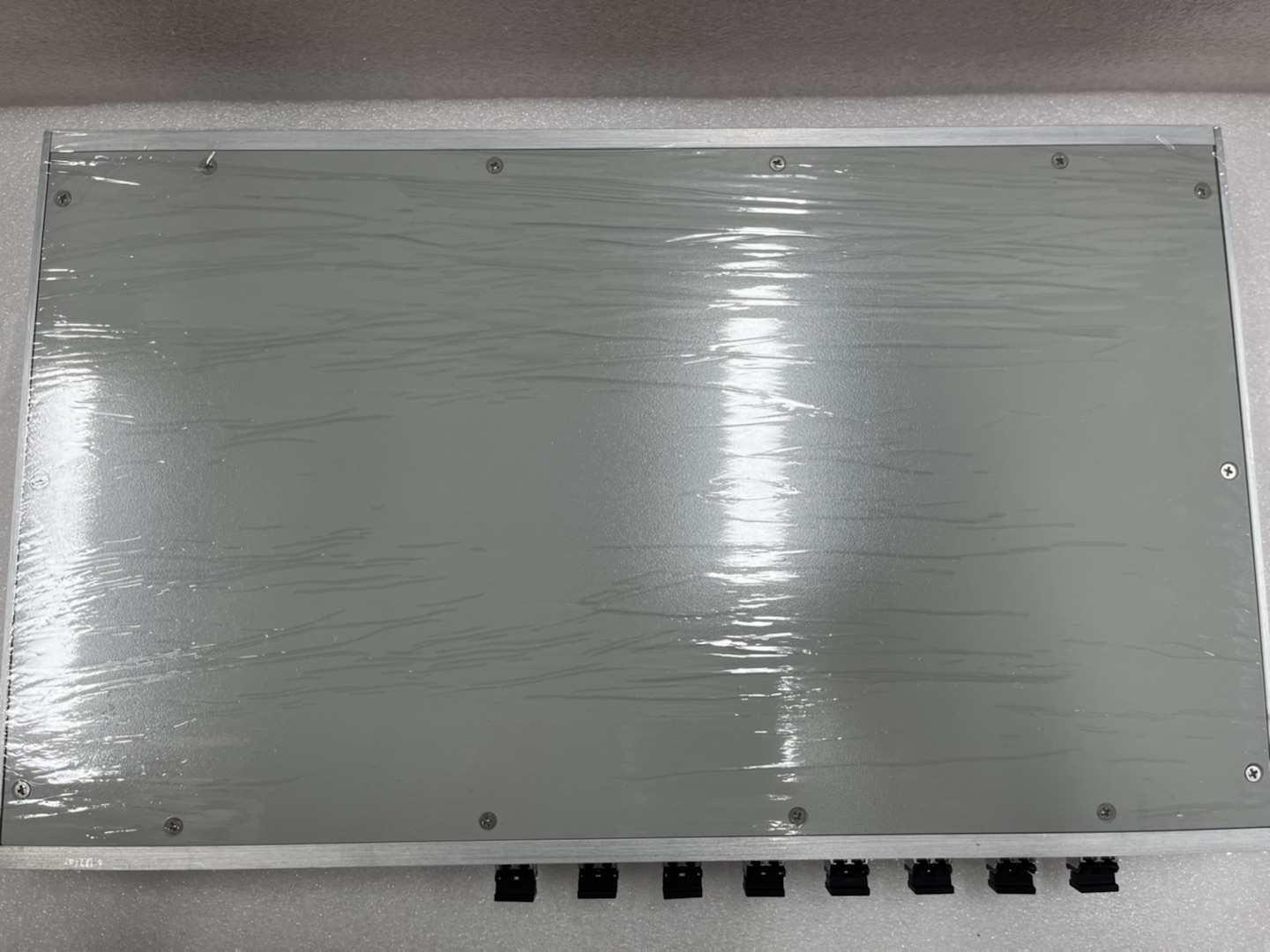

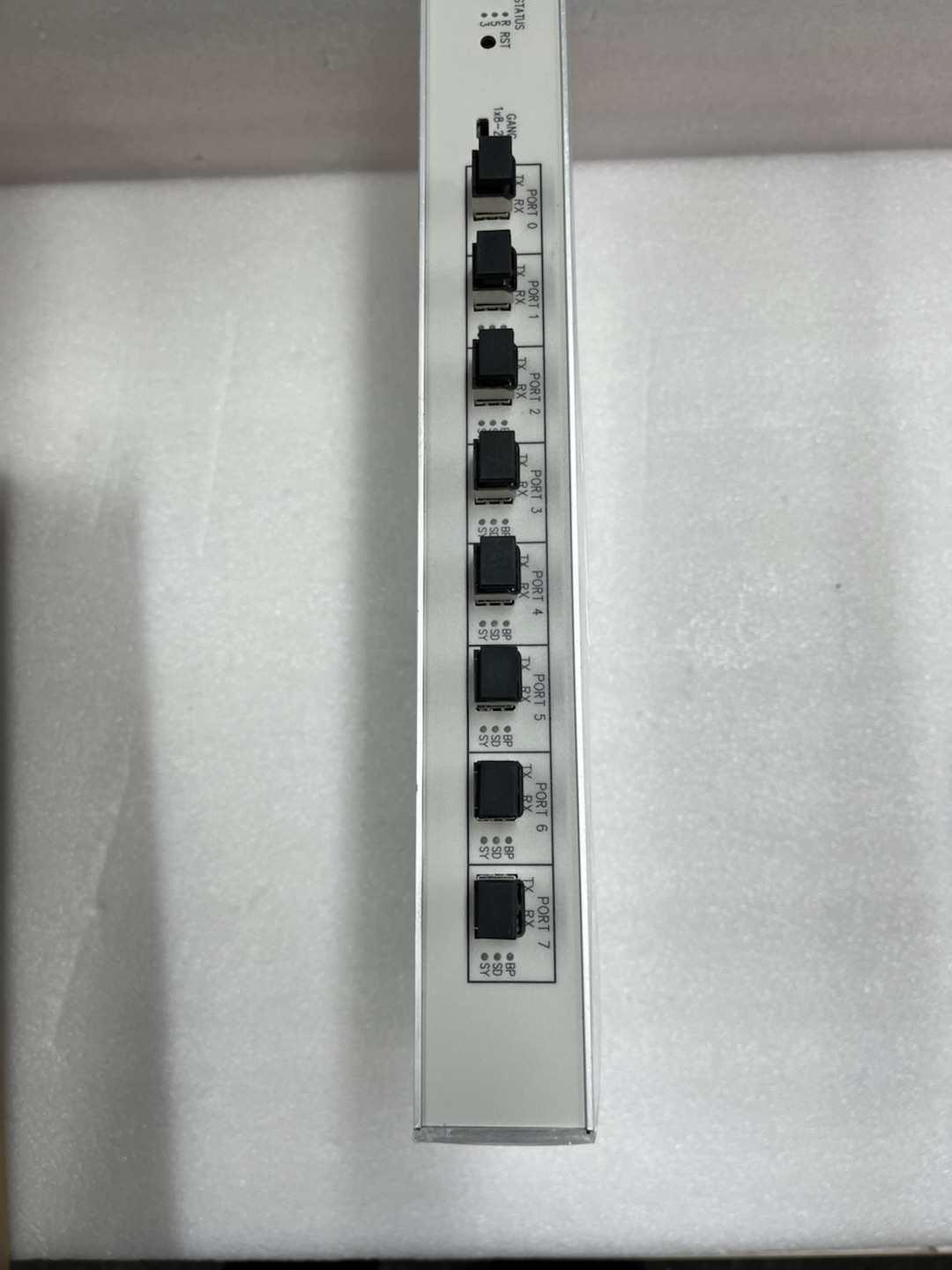

GE ACC-5595-208 Reflective Memory Hub

The GE ACC-5595-208 is a high-performance reflective memory hub designed for real-time data communication in industrial and critical applications. Built for GE Intelligent Platforms’ 5565 series reflective memory networks, the ACC-5595-208 enables deterministic data sharing with low latency, making it ideal for systems requiring synchronized operations across distributed nodes. Its core functions include signal regeneration, automatic bypass of faulty nodes, and support for both multi-mode (short-distance) and single-mode (long-distance) SFP transceivers. With up to 8 configurable ports and the ability to cascade up to 256 nodes, the ACC-5595-208 offers scalability for small to large networks. Remote management via Ethernet (TCP/IP) and local control via RS232 ensure easy integration and monitoring.

Technical Parameters

Advantages and Features

• Automatic Fault Bypass: Detects signal loss or invalid sync patterns and bypasses faulty ports to maintain network integrity (firmware v02.00+).
• Signal Regeneration: Each port regenerates optical signals, reducing jitter and eliminating cable attenuation issues.
• Scalability: Supports cascading for large networks (256 nodes), ideal for expanding industrial systems.
• Remote Management: Ethernet and RS232 interfaces enable remote configuration, monitoring, and troubleshooting.
• Flexible Deployment: Optional rack mount or desktop enclosure with universal power supply for global compatibility.
• Case Study: In a manufacturing plant, the ACC-5595-208 minimized downtime by bypassing a faulty node in a 50-node network, ensuring continuous real-time data flow.

Application Areas and Use Cases

• Industries: Industrial automation, aerospace, energy, telecommunications, and defense.
• Scenarios: Real-time data acquisition, distributed control systems, and high-speed synchronization.
• Use Case: A power generation plant used the ACC-5595-208 to synchronize turbine control systems across multiple sites, achieving sub-millisecond latency and 99.99% uptime.

Competitive Comparison

Compared to similar hubs, the ACC-5595-208 offers superior scalability (256 nodes vs. typical 128-node limits) and advanced bypass logic (signal loss + sync pattern detection). Its dual management interfaces (Ethernet + RS232) provide redundant control options, while universal power and modular SFP ports reduce deployment costs.

Selection Recommendations

• Compatibility: Ensure compatibility with GE 5565 series reflective memory cards.
• Network Size: Choose based on node count (e.g., 8 ports for small networks, cascading for large systems).
• Distance: Use single-mode SFP for long-distance (10 km) or multi-mode for short-range (300 m).
• Installation: Opt for rack mount in industrial environments; desktop for lab setups.

Precautions

• Environmental Conditions: Operate within -10°C to 55°C and avoid extreme humidity.
• SFP Transceivers: Use GE-certified transceivers to ensure signal integrity.
• Grounding: Properly ground the hub to prevent electrostatic discharge.
• Firmware Updates: Regularly update firmware for optimal bypass and security features.
