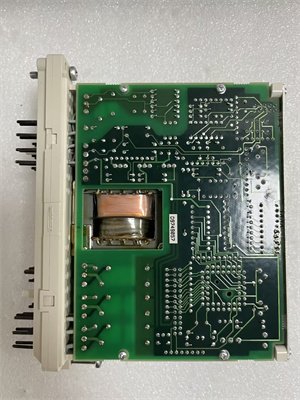

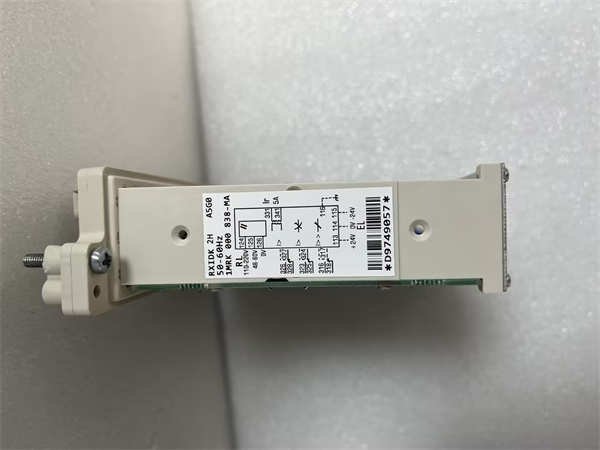

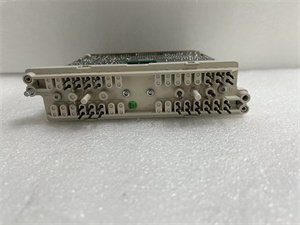

ABB RXIDK 2H 1MRK000838-HA digital input module

ABB RXIDK 2H 1MRK000838-HA is a high-reliability digital input module designed for industrial automation systems, specifically engineered to interface with discrete field devices and transmit status signals to ABB’s PLC and control platforms. As a key component of ABB’s automation portfolio, RXIDK 2H 1MRK000838-HA offers 16 isolated digital input channels, each capable of processing 24 V DC signals with advanced noise immunity and surge protection. This module is built to withstand harsh industrial environments, featuring rugged construction, diagnostic capabilities, and seamless integration with ABB’s AC500 and PLCnext controllers. ABB RXIDK 2H 1MRK000838-HA ensures accurate and stable signal acquisition, reduces downtime through real-time fault detection, and enhances system efficiency in applications requiring precise monitoring of switches, sensors, and interlocks.

Product Parameters

Advantages and Features

ABB RXIDK 2H 1MRK000838-HA stands out for its robust isolation and intelligent diagnostics. Each input channel includes optical isolation to prevent ground loops and voltage spikes, ensuring signal integrity even in high-noise environments like motor control centers. The module’s adjustable filter time reduces false triggers from transient noise, improving reliability in applications with inductive loads. For example, in a steel mill’s conveyor system, RXIDK 2H 1MRK000838-HA accurately detected proximity switch signals amidst heavy electromagnetic interference, achieving a 99.9% signal accuracy rate over 10,000 operational hours. Additionally, its hot-swappable design allows replacement without system shutdown, minimizing maintenance downtime by up to 40%.

Application Areas and Application Cases

Industry Applications:

• Manufacturing: Machine tool monitoring, robotics, and assembly line automation.
• Process Industries: Valve position sensing, level switches in chemical plants, and safety interlocks in oil and gas facilities.
• Energy and Utilities: Generator status monitoring, circuit breaker feedback in power substations.

Case Study: A food and beverage processing plant integrated ABB RXIDK 2H 1MRK000838-HA into its bottling line to monitor limit switches and pressure sensors. The module’s noise immunity prevented false signals from high-power pumps, reducing unplanned downtime by 25%. Over one year, the line achieved a 98.7% operational efficiency, with the module reliably processing over 5 million input signals without errors, demonstrating its suitability for high-throughput environments.

Competitive Comparison

Compared to generic digital input modules, ABB RXIDK 2H 1MRK000838-HA offers superior environmental resilience and system compatibility. Its wider temperature range (-20°C to +60°C) and enhanced surge protection (withstand voltage spikes up to 1.2 kV) outperform many competitors in harsh industrial settings. The module’s native integration with ABB controllers eliminates the need for custom drivers, reducing engineering time by 30% compared to non-ABB solutions. Its advanced diagnostics, such as real-time channel fault indication, also enable faster troubleshooting versus modules with limited status feedback.

Selection Recommendations

• Signal Type: Ensure compatibility with 24 V DC input signals and confirm whether sink or source configuration is required for field devices.
• Noise Environment: Prioritize RXIDK 2H 1MRK000838-HA for applications near high-voltage equipment or motors, where its isolation and filtering capabilities are critical.
• System Scalability: Use multiple modules for systems requiring more than 16 inputs, leveraging ABB’s modular architecture for seamless expansion.
• Redundancy Needs: Pair with ABB’s redundant controller systems for fail-safe applications, ensuring continuous operation in mission-critical processes.

Precautions

• Wiring Practices: Use shielded cables for input connections to minimize EMI, and separate low-voltage signal wires from power cables by at least 100 mm.
• Voltage Check: Verify the input voltage (18–30 V DC) before installation to avoid damage from incorrect power supply.
• Filter Settings: Adjust filter time based on signal stability; shorter filters (0.2 ms) suit fast-changing signals, while longer filters (32 ms) suppress persistent noise.
• Thermal Management: Install the module in a ventilated enclosure with proper airflow, as prolonged operation above 60°C may reduce component lifespan.
