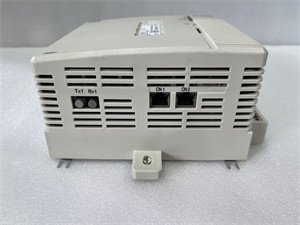

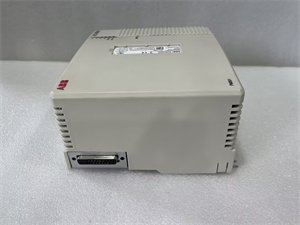

ABB AC800M 3BSE053240R1 PM891 Automation Processor Module
Manufacturer: ABB
Product Number: PM891 (3BSE053240R1)
Category: Automation Processor Module
System Compatibility: ABB AC800M control system, ABB Ability System 800xA platform
Processor Speed: 450 MHz
Memory: 32 MB RAM, 16 MB Flash
Communication Interfaces: 2x Ethernet (10/100 Mbps), 1x RS-232
Redundancy Support: Yes, with PM891A for controller redundancy
Operating Temperature: -25°C to +55°C
Product Description
The ABB AC800M 3BSE053240R1 PM891 is a high-performance processor unit designed for the ABB AC800M control system, which is an integral part of the ABB Ability System 800xA platform. This module plays a pivotal role in industrial automation setups across diverse industries, including manufacturing, power generation, and process control.
Detailed Parameter Table for ABB AC800M 3BSE053240R1 PM891
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AC800M 3BSE053240R1 PM891 |
| Manufacturer | ABB |
| Product category | Automation Processor Module |
| Operating Voltage | 24 V DC (19.2 – 30 V DC) |
| Processor | MPC 8270, 450 MHz |
| Memory | 256 MB RAM, 256 MB Flash |
| Communication Interfaces | 2 × RJ45 Ethernet ports (10/100 Mbit/s), 1 × RJ45 serial port (COM4) |
| Real-Time Clock | Yes |
| SD Card Interface | Yes |
| INIT Push Button | Yes |
| LED Indicators | Yes, for status monitoring |
| Processing Time | Approximately 0.043 milliseconds |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 245 mm (W) × 105 mm (H) × 280 mm (D) |
| Weight | 2.1 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 |
| Mounting | Horizontal DIN rail |
| Protection Level | IP20 |
Core Advantages and Technical Highlights
-
High-Performance Processing Core:
-
Powered by a 450 MHz MPC 8270 processor, it offers remarkable computational capabilities, enabling it to handle complex control algorithms with high precision and speed.
-
Equipped with 256 MB of RAM and 256 MB of flash memory, it can store and manipulate large amounts of data in real-time, ensuring seamless operation even in data-intensive applications.
-
-
Redundant Communication Architecture:
-
Features dual Ethernet ports (10/100 Mbit/s) for redundant communication paths, ensuring uninterrupted communication with other devices in the control network.
-
Supports communication redundancy, allowing for seamless failover to a backup path in case of a failure.
-
-
Compact and Integrated Design:
-
The PM891 is a monolithic unit that integrates the power supply, CPU boards, and unit termination, simplifying installation and reducing space requirements.
-
Includes a real-time clock, LED indicators, and an INIT push button for easy status monitoring and initialization procedures.
-
-
Versatile I/O Connectivity Support:
-
The optical module bus can connect up to seven clusters of S800 I/O units, with each cluster comprising up to 12 units, allowing for extensive I/O connectivity.
-
Supports CPU redundancy, ensuring high availability of the control system^].
-
Typical Application Scenarios
The ABB AC800M 3BSE053240R1 PM891 is widely used in various industrial applications, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB AC800M 3BSE053240R1 PM891, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-25°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ABB AC800M 3BSE053240R1 PM891. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The ABB AC800M 3BSE053240R1 PM891 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
