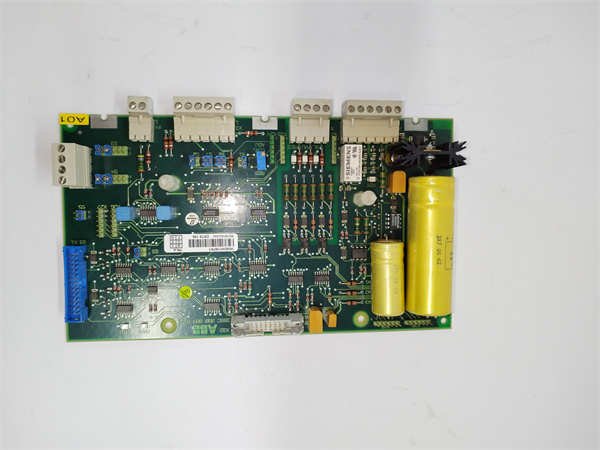

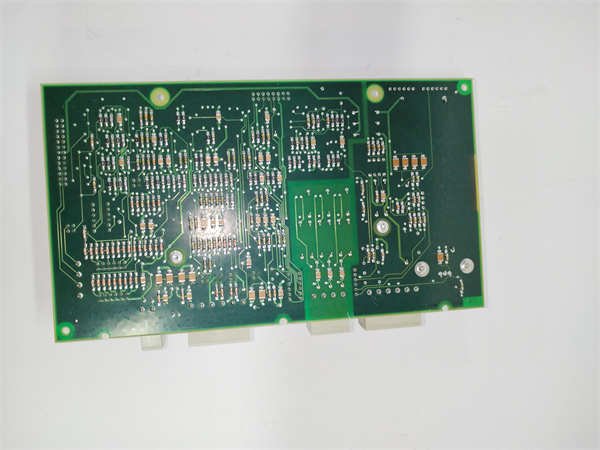

ABB DSTS106 3BSE007287R1 Trigger Pulse Generator Card
Manufacturer: ABB
Product Number: DSTS106 (3BSE007287R1)
Category: Trigger Pulse Generator Card
Function: Generates precise trigger pulses for various control applications
System Compatibility: ABB Advant OCS system
Application: Industrial control systems requiring precise timing and triggering
Product Description
The ABB DSTS106 3BSE007287R1 is a high-performance trigger pulse generator card designed for industrial control systems. It is part of ABB’s Advant OCS system and is used to generate precise trigger pulses for various control applications. The card operates on a rated voltage of 24V DC and features an output current of up to 3A. It is designed to work reliably in a wide temperature range of -20°C to +70°C, making it suitable for harsh industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTS106 |
| Manufacturer | ABB |
| Product Category | Trigger Pulse Generator Card |
| Input Voltage | 24V DC (±10%) |
| Output Current | 3A |
| Operating Temperature Range | -20°C to +70°C |
| Dimensions (L x W x H) | 263 mm x 58 mm x 28 mm |
| Weight | 0.43 kg |
| Communication Interface | Internal communication interfaces for connection to ABB control system backplane |
| Certifications | CE, RoHS |
Core Advantages and Technical Highlights
High-Performance Trigger Pulse Generation: The DSTS106 is designed to efficiently generate trigger pulses, ensuring precise control in automation systems.
Wide Operating Temperature Range: The card can operate reliably in temperatures ranging from -20°C to +70°C, making it suitable for diverse industrial environments.
Compact Design: With dimensions of 263 mm x 58 mm x 28 mm and a weight of 0.43 kg, the DSTS106 is compact and lightweight, making it easy to install in space-constrained control cabinets.
Robust Construction: The card features IP20 protection, ensuring resistance to dust and water ingress, and is built with high-quality components for long-term reliability.
Compatibility: The DSTS106 is compatible with ABB’s Advant OCS system, simplifying the integration process and reducing the complexity and time required to set up an automation system.
Typical Application Scenarios
The DSTS106 3BSE007287R1 is widely used in various industrial sectors, including manufacturing, power generation, and process control. It is ideal for applications requiring precise control and regulation, such as:
-
Industrial automation systems
-
Power generation plants
-
Process control systems
-
Renewable energy systems.
Installation Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the DSTS106 3BSE007287R1, ensure the designated location meets the specified temperature and humidity requirements. Mount the card securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The DSTS106 3BSE007287R1 is backed by ABB’s comprehensive support and quality assurance. The card comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
