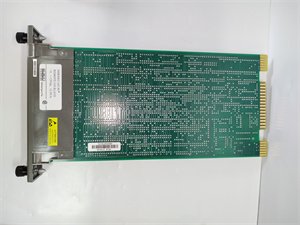

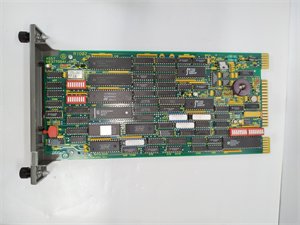

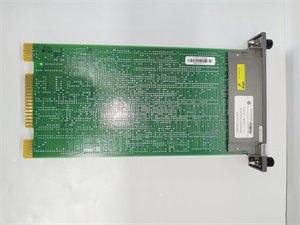

ABB IMRIO02 Remote I/O Slave Module

The ABB IMRIO02 is a remote I/O slave module designed for reliable data communication in industrial automation systems. As part of the ABB Bailey Infi 90 series, it provides a robust solution for connecting field devices such as sensors and actuators to the main control system. The module supports a wide range of analog inputs and outputs, ensuring flexibility and scalability in various industrial applications. With its compact design, low power consumption, and wide operating temperature range, the ABB IMRIO02 is well-suited for harsh industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

Remote I/O Functionality: The ABB IMRIO02 allows for the distribution of I/O points outside the main control system, reducing field wiring and improving system reliability and flexibility. It exchanges data with the master station through a high-speed communication interface, making it ideal for distributed control architectures.

Multi-Channel Input and Output: Supporting 8 analog inputs and 8 analog outputs, the ABB IMRIO02 significantly enhances the capacity for data collection and control actions. This makes it suitable for applications requiring high throughput and precision.

Strong Anti-Interference Capability: The module features isolation technology that effectively suppresses electromagnetic interference, ensuring the stability and accuracy of signal transmission.

Modular Design: The ABB IMRIO02 is designed for easy installation, maintenance, and expansion. Its modular structure allows for flexible configuration of I/O points according to specific application needs.

Compatibility and Scalability: The module supports multiple communication protocols, such as EtherCAT and infiNET, and is compatible with various control systems. As part of the ABB Bailey Infi 90 series, it seamlessly integrates with other ABB products.

Typical Application Scenarios

The ABB IMRIO02 is widely used in process industries such as chemical, petroleum, natural gas, and power, where it monitors and controls process variables like temperature, pressure, and flow. In manufacturing, it connects sensors and actuators on automated production lines to enable remote monitoring and control of equipment. Additionally, it is applied in water treatment and energy management to improve system reliability and efficiency.

Installation Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the installation environment meets the specified temperature and humidity requirements. The ABB IMRIO02 should be installed in a standard industrial cabinet with sufficient ventilation to dissipate heat. Verify that the power supply voltage is within the specified range to avoid damage to the module.

Maintenance Suggestions: Regularly inspect the module for signs of wear or damage, and ensure that all connections are secure. Use the module’s diagnostic features to monitor its performance and identify potential issues early. In case of faults, refer to the user manual for troubleshooting guidance and contact ABB support if necessary.

Service and Guarantee Commitment

ABB provides comprehensive support for the ABB IMRIO02, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
