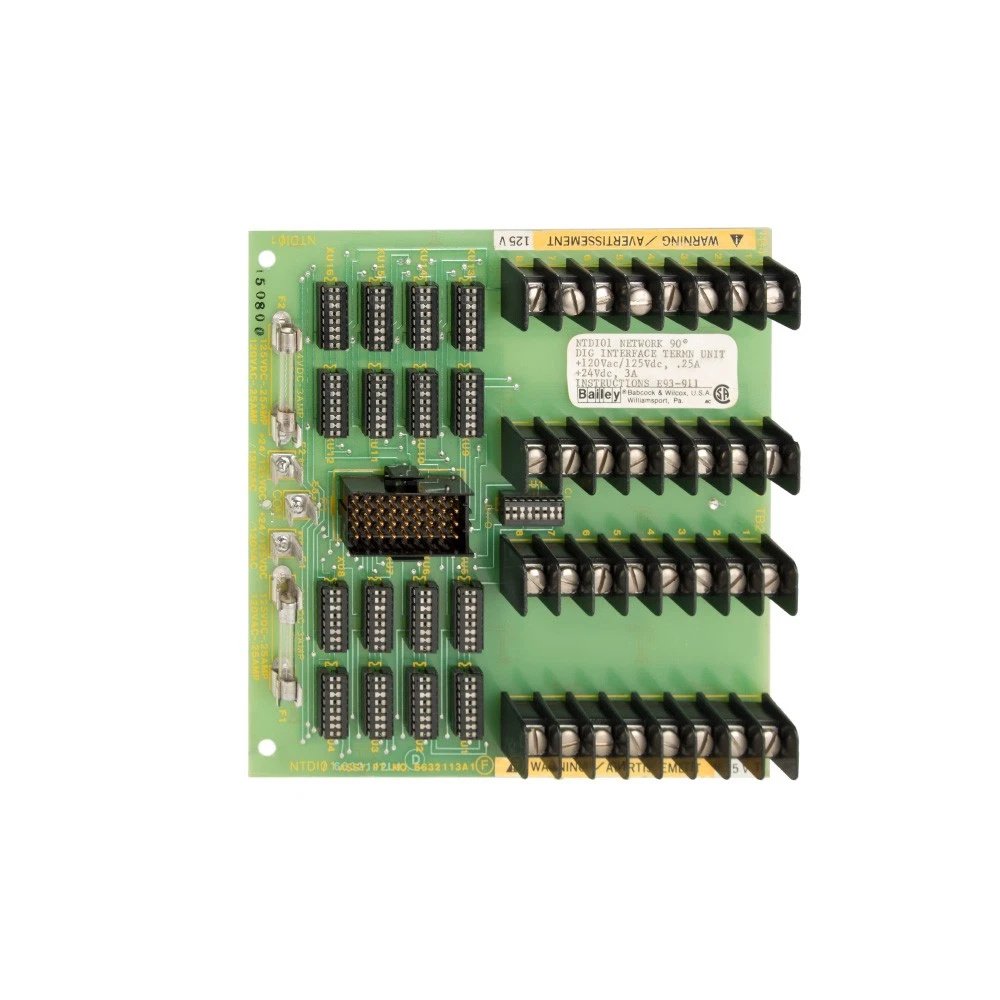

ABB NTDI01 Digital I/O Termination Unit

The ABB NTDI01 is a high-performance digital I/O termination unit designed for seamless integration into industrial automation systems. It provides reliable and efficient signal termination for digital input and output signals, ensuring precise data transmission and enhanced system reliability. The NTDI01 is part of the ABB Bailey INFI 90 control system, offering robust performance in various industrial applications.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Reliability:

• The ABB NTDI01 offers high precision with a resolution of up to 12 bits and an accuracy of ±0.1%, ensuring reliable signal conversion.

Wide Application Compatibility:

• Compatible with various ABB control systems, including INFI 90 and Symphony Harmony, the NTDI01 can handle both digital input and output signals.

Robust Industrial Design:

• Designed for harsh industrial environments, the NTDI01 features an IP65 protection rating and operates reliably within a temperature range of -20°C to +60°C.

Fast Response and Low Latency:

• With a response time of less than 1 ms, the module ensures real-time control and monitoring, critical for high-speed industrial processes.

Easy Integration and Configuration:

• The module supports multiple communication protocols, including RS-485 and Ethernet, and can be easily configured using ABB’s Control Builder M software.

Typical Application Scenarios

The ABB NTDI01 is widely used across various industrial sectors:

• Manufacturing: For precise control of robotic arms, CNC machines, and packaging lines.

• Energy Management: For monitoring and controlling valve positions and conveyor belts in power plants.

• Process Control: For precise position and speed control in industrial processes.

• Robotics: For joint control and motion synchronization in robotic systems.

Installation Commissioning, and Maintenance Instructions

Installation Preparation:

• Ensure the installation environment meets the specified temperature and humidity requirements. The termination unit should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC ±10%) to avoid damage to the module.

Maintenance Suggestions:

• Regularly inspect the installation to ensure the termination unit is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.

Service and Guarantee Commitment

ABB provides comprehensive support for the ABB NTDI01, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
