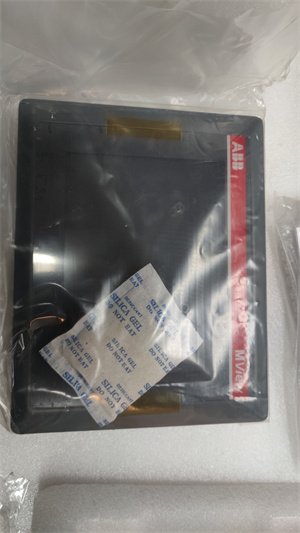

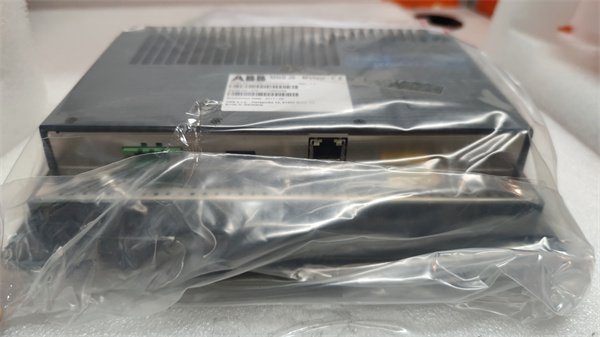

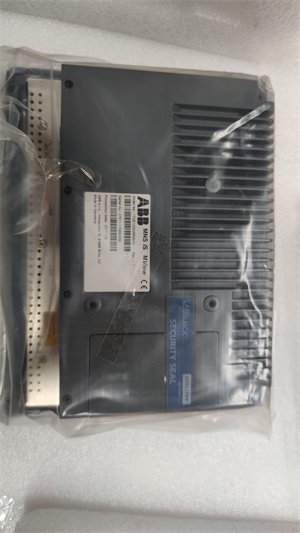

ABB 1TGE120028R0010 Human-Machine Interface
Manufacturer: ABB
Product Number: 1TGE120028R0010
Category: Human-Machine Interface (HMI)
System Compatibility: ABB MNS iS systems for motor and feeder control units
Function: Intuitive user interface supporting device control, monitoring, and diagnostics
Application: Industrial touch screen HMI for automation
Product Description
The ABB 1TGE120028R0010 is a high-performance industrial touch screen human-machine interface (HMI) designed for motor and feeder control units, particularly for MNS iS systems. This HMI provides an intuitive user interface that supports device control and monitoring through a touch screen, making it suitable for industrial environments that require visual operations and real-time data feedback.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1TGE120028R0010 |
| Manufacturer | ABB |
| Product Category | Human-Machine Interface (HMI) |
| Screen Size | 8.4 inches |
| Resolution | High resolution |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 247 mm × 185 mm × 82 mm |
| Weight | 5 kg |
| Communication Protocols | Ethernet, RS-232, RS-485 |
| Protection Level | IP20 |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
Core Advantages and Technical Highlights
Intuitive User Interface: The 1TGE120028R0010 features a high-resolution touch screen display, providing clear visualization of various information and data. It supports a variety of data acquisition, analysis, and processing functions to meet real-time data needs.
Robust Design: The HMI is designed for harsh industrial environments, with an operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C. It also features a protection level of IP20, ensuring reliability in dusty and wet conditions.
Versatile Communication Options: The 1TGE120028R0010 supports multiple communication protocols, including Ethernet, RS-232, and RS-485, enabling seamless integration with various industrial automation equipment.
High Reliability: Made of high-quality materials and components, the HMI has undergone rigorous quality inspection and environmental adaptability testing to ensure stable operation under various harsh conditions.
Typical Application Scenarios
The ABB 1TGE120028R0010 is widely used in various industrial sectors, including:
-
Motor Control: For controlling the start, stop, speed regulation, and other operations of motors.
-
Feeder Control Units: For monitoring and managing the operational status of feeder systems.
-
Process Control: In chemical and petrochemical engineering, for real-time monitoring and control of equipment such as reactors, pumps, and valves.
-
Energy Management: For remote monitoring and control of power grids, transmission, and distribution systems.
Installation Commissioning, and Maintenance Instructions
Installation Preparation: Before installation, carefully read the installation and use instructions provided by ABB to understand the equipment structure, functions, technical parameters, and installation requirements. Ensure that power lines and grounding facilities meet the requirements to avoid equipment damage or safety accidents caused by electrical issues.
Maintenance Suggestions: Regularly inspect the HMI for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the HMI’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 1TGE120028R0010 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
