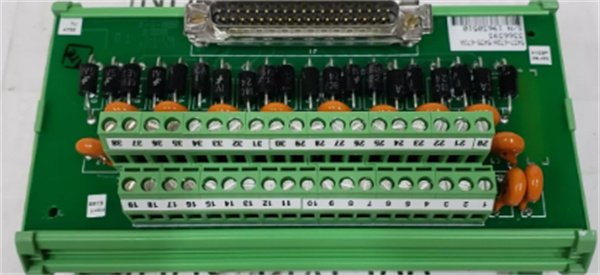

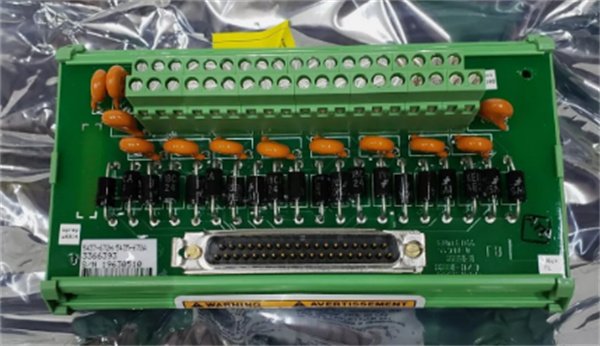

Woodward 5437-672 NetCon Field Terminal Module
Manufacturer: Woodward
Product Number: 5437-672
Category: NetCon Field Terminal Module
System Compatibility: Woodward NetCon series, distributed control systems (DCS)
Function: Critical interface between field devices (sensors, actuators) and control systems
Application: Industrial automation and process control
Product Description
The Woodward 5437-672 is a NetCon Field Terminal Module designed for seamless integration into industrial control systems, serving as a critical interface between field devices (sensors, actuators) and distributed control systems (DCS) or programmable logic controllers (PLC). Engineered with robust construction and advanced signal conditioning, the 5437-672 ensures reliable data transmission and efficient system performance in challenging environments. Its modular design and compatibility with Modbus RTU protocol make it ideal for applications such as turbine control, power generation, and process automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 5437-672 |
| Type | NetCon Field Terminal Module |
| Input Voltage | 24V DC / 120/240V AC (variant-dependent) |
| Current Rating | 1A |
| Communication Interface | RS-485, Modbus RTU |
| Data Transfer Rate | 9600 bps |
| Input Signal Range | -10V to +10V (analog) |
| Operating Temperature | -40°C to +85°C |
| Protection Rating | IP67 (dust and water resistance) |
| Dimensions | 15.9 cm x 8.9 cm x 6.3 cm |
| Weight | 0.3 kg |
| Certifications | CE, UL, CSA |
Advantages and Features
- Signal Integrity: Built-in isolation and conditioning minimize interference, ensuring accurate data acquisition.
- Wide Voltage Range: Supports both 24V DC and 120/240V AC inputs, enhancing flexibility across industrial setups.
- Rugged Design: IP67-rated housing withstands harsh conditions, including extreme temperatures and vibrations.
- Modular Scalability: 16-channel configuration allows easy expansion for complex systems.
- Energy Efficiency: Low power consumption reduces operational costs.
Application Areas and Case Studies
- Power Generation: Connects sensors in steam turbine control systems for real-time monitoring.
- Oil and Gas: Integrates with DCS in refineries to manage actuator signals efficiently.
- Manufacturing: Optimizes automation in automotive assembly lines via precise sensor integration.
- Case Study: A North American power plant reduced downtime by 25% after deploying the 5437-672, achieving consistent signal reliability in high-temperature boiler environments.
Competitor Comparison
Compared to standard terminal modules, the 5437-672 offers superior temperature resilience (-40°C to +85°C vs. typical -20°C to +70°C) and broader voltage compatibility. Its IP67 rating exceeds many alternatives, making it suitable for outdoor or wet environments.
Selection Recommendations
- Voltage Compatibility: Confirm input voltage requirements (DC/AC) based on your system’s power supply.
- Environmental Demands: Choose IP67-rated modules for outdoor or high-moisture settings.
- Scalability: Evaluate channel count (16 channels) against your device density needs.
Precautions
- Installation: Ensure proper grounding to prevent EMI interference.
- Power Management: Avoid exceeding current ratings to prevent module overheating.
- Maintenance: Regularly inspect connectors for corrosion or start connections.
