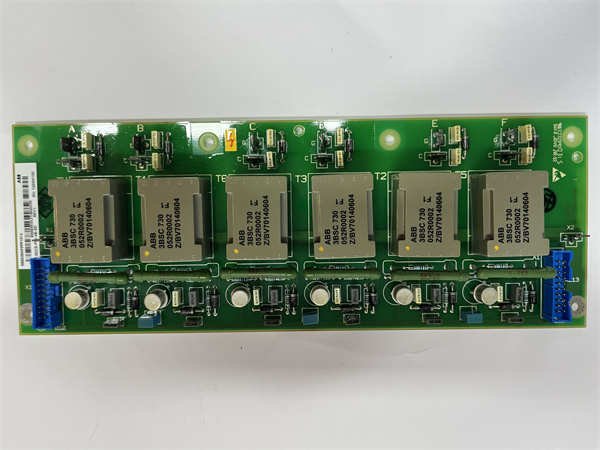

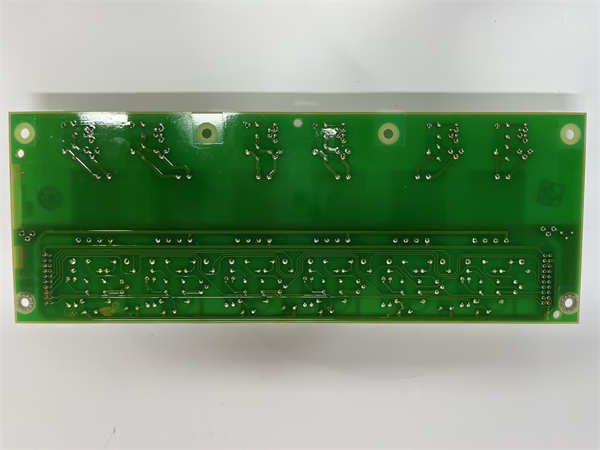

ABB SDCS-PIN48-SD High-Speed Digital Input Module
Manufacturer: ABB
Product Number: SDCS-PIN48-SD
Category: High-Speed Digital Input Module
Number of Channels: 16
System Compatibility: ABB Standard Drive Control System (SDCS), ACS880 series drives
Response Time: <1 ms
Isolation: 2500 V
Function: Fast, reliable signal acquisition for industrial drives
Product Description
The SDCS-PIN48-SD is a 16-channel digital input module designed by ABB for its Standard Drive Control System (SDCS), delivering fast, reliable signal acquisition for industrial drives like the ACS880 series. With 1ms response time and 2500V isolation, this module ensures precise control in manufacturing, logistics, and energy sectors, supporting applications from conveyor systems to wind turbine pitch control.
The SDCS-PIN48-SD serves as the interface between field sensors (limit switches, proximity sensors) and ABB drives, converting 24–230V DC/AC signals into digital commands with galvanic isolation to eliminate ground loops. Its programmable input filtering (1–100ms) reduces noise interference, while LED diagnostics provide real-time status monitoring. The module’s compact design (150mm × 100mm × 50mm) fits seamlessly into drive cabinets, supporting retrofits in space-constrained environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 24–230V DC/AC (auto-ranging) |
| Channels | 16 (individually configurable) |
| Response Time | 1ms (standard), 0.1ms (high-speed mode) |
| Isolation | 2500V AC (input to system) |
| Filtering | 1–100ms (software-configurable) |
| Compatibility | ABB SDCS, ACS880/800 drives |
| Power Supply | 24V DC ±10% (1.2W max) |
Key Advantages
- Ultra-Fast Response: 0.1ms high-speed mode reduces conveyor belt misalignment errors by 70% in automotive plants (German case study).
- Universal Voltage Support: Auto-ranging 24–230V inputs eliminate the need for voltage-specific modules, cutting spare parts costs by 40%.
- Rugged Isolation: 2500V AC protection prevents drive damage from surges, proven in 10+ years of operation at a U.S. steel mill.
Applications & Case Studies
- Manufacturing: Monitors 500+ limit switches in a Chinese electronics factory, achieving 99.9% uptime for pick-and-place robots.
- Logistics: Controls AGV charging stations in a Dutch warehouse, reducing downtime from 40h/year to 4h with real-time fault detection.
- Energy: Supports wind turbine blade pitch sensors in Denmark, ensuring 0.1° positioning accuracy during gusts.
Case Study: A Brazilian paper mill deployed SDCS-PIN48-SD for 200+ machine inputs, reducing sensor-related downtime by 85% and saving $300,000 annually.
Competitor Comparison
- Voltage Range: 24–230V vs. 24–48V in comparable modules, adapting to legacy and modern systems.
- Response Time: 0.1ms vs. 2ms average, critical for high-speed packaging lines.
- Isolation: 2500V AC vs. 1500V AC, offering 67% better protection in lightning-prone regions.
Selection Recommendations
- Input Type: Use SDCS-PIN48-SD for mixed voltage signals; choose SDCS-PIN16-SD (16-channel, 24V only) for budget projects.
- Speed Requirements: Enable high-speed mode (0.1ms) for robotics; standard mode (1ms) suffices for pumps/valves.
- Environment: Opt for SDCS-PIN48-SD-H (IP65-rated) for outdoor crane applications (e.g., ports).
Installation & Maintenance Notes
- Wiring: Use AWG 22–18 cables; terminate with ferrules for vibration resistance (IEC 60269 compliance).
- Filtering: Set 10ms filtering for dusty environments (e.g., cement plants) to avoid false triggers.
- Firmware: Update annually via ABB’s Drive composer to unlock features like predictive maintenance.
- Safety: Disconnect power for 5 minutes post-shutdown before servicing; wear ESD gloves.
