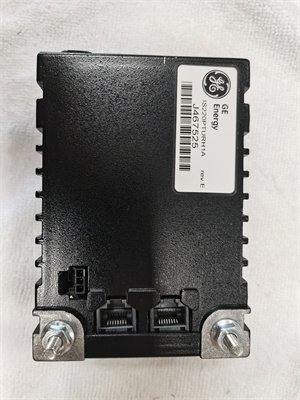

GE Fanuc IS220PTURH1A Primary Turbine Trip Module

GE Fanuc IS220PTURH1A is a high-reliability I/O trip module designed for critical turbine control systems, specifically engineered for GE’s Speedtronic Mark VIe series. This module serves as a primary interface between turbine control systems and field sensors/actuators, ensuring safe and efficient operation of gas and steam turbines. With dual 100Mbps Ethernet ports, advanced diagnostic capabilities, and rugged construction, the IS220PTURH1A delivers real-time data processing and redundant functionality, making it ideal for mission-critical applications in energy, power generation, and industrial automation.

Product Parameters

Advantages and Features

1. High Reliability:

   • The IS220PTURH1A is built with redundant power supplies and error-checking mechanisms, ensuring uninterrupted operation in harsh industrial environments. Its Mean Time Between Failures (MTBF) exceeds 100,000 hours, aligning with GE’s rigorous reliability standards.
   • Conformal coating on the PCB protects against moisture, dust, and temperature extremes, extending operational lifespan in challenging conditions.

2. Real-Time Data Processing:

   • Supports high-speed data acquisition and transmission, enabling precise monitoring of turbine parameters such as speed, vibration, and temperature.
   • Dual Ethernet ports facilitate seamless integration with GE’s Mark VIe controllers and third-party systems, ensuring low-latency communication.

3. Flexible Configuration:

   • Modular design allows scalable deployment for simplex, dual, or triple-redundant systems, adapting to varying application requirements.
   • Easy firmware updates via ControlST software ensure compatibility with the latest system enhancements.

4. Safety-Critical Functionality:

   • Dedicated trip pack functionality triggers emergency shutdowns when 异常 conditions are detected, preventing catastrophic turbine failures.
   • Built-in self-diagnostics identify faults instantly, reducing downtime and maintenance costs.

Application Areas and Use Cases

• Energy Sector:

  Deployed in power plants to monitor steam and gas turbines, ensuring optimal performance and compliance with safety standards.

• Oil and Gas:

  Integrates with offshore platforms to manage compressors and pumps, enhancing operational efficiency and safety.

• Manufacturing:

  Used in high-speed production lines to synchronize machinery and prevent mechanical failures.

Case Study:

A major European utility company upgraded its gas turbine control system with IS220PTURH1A modules. By continuously monitoring vibration and temperature data, the system detected a critical imbalance in a turbine rotor during routine operation. The module’s trip functionality triggered an immediate shutdown, avoiding a potential €1.5 million outage. Post-installation, predictive maintenance reduced downtime by 35% within the first year.

Competitor Comparison

The IS220PTURH1A outperforms similar I/O modules in:

• Redundancy: Supports triple-redundant configurations, whereas many competitors limit redundancy to dual systems.
• Temperature Range: Operates reliably from -40°C to 85°C, exceeding the typical 0°C to 60°C range of comparable products.
• Processing Speed: 32-bit ARM Cortex-A9 processor delivers faster data handling than legacy 16-bit controllers used by some competitors.

Selection Recommendations

• System Compatibility: Ensure the module aligns with your existing Mark VIe system and required communication protocols (e.g., Ethernet/IP).
• Environmental Requirements: Verify the operating temperature range matches your application’s conditions, especially for extreme environments.
• Redundancy Needs: Choose the IS220PTURH1A for mission-critical systems requiring triple-redundant protection.

Precautions

1. Installation:

   • Follow GE’s guidelines for proper grounding and wiring to avoid electromagnetic interference.
   • Use anti-static equipment during handling to prevent ESD damage.

2. Maintenance:

   • Regularly inspect for loose connections and dust accumulation.
   • Update firmware periodically to access the latest features and security patches.

3. Safety:

   • Power off the system before performing maintenance to avoid electrical hazards.
   • Ensure adequate airflow around the module to prevent overheating.
