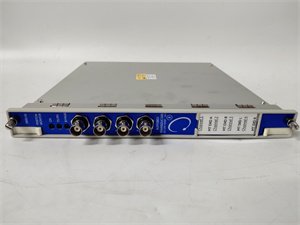

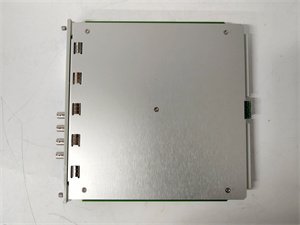

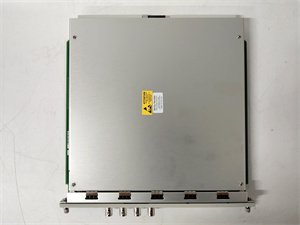

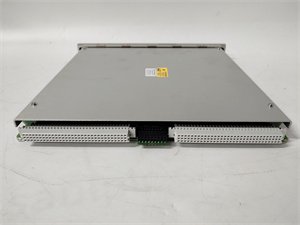

Bently Nevada 3500/45 Position monitor module

The Bently Nevada 3500/45 is a precision position monitor module, a cornerstone of the 3500 series machinery protection system. It specializes in measuring critical position parameters of rotating and reciprocating machinery, serving as a vital link between sensors and control systems in industrial automation setups.

This 4-channel module processes signals from various position sensors to monitor parameters like axial thrust, differential expansion, valve position, and casing expansion. The 3500/45 converts raw sensor data into standardized 4-20mA outputs, enabling seamless integration with external control systems. In machinery protection architectures, it acts as a guardian—detecting abnormal position deviations that could indicate bearing failure, misalignment, or thermal expansion issues, thus preventing catastrophic equipment damage.

Detailed parameter table

Core advantages and technical highlights

Multi-sensor compatibility: The 3500/45 accepts inputs from a wide range of position sensors, including proximity transducers, LVDTs, and rotary position sensors. This versatility eliminates the need for multiple specialized monitors, simplifying system design. For example, it can simultaneously track turbine thrust position via proximity probes and valve position via potentiometers, providing a unified monitoring solution.

User-configurable alarms: Operators can program custom alarm thresholds for each channel of the 3500/45, including warning and danger levels. The module features non-volatile memory to retain settings during power loss, ensuring consistent protection. In critical applications like steam turbines, this allows precise alignment of alarms with machinery design limits, reducing false trips while maintaining safety.

High-accuracy measurement: With ±0.25% full-scale accuracy, the 3500/45 captures subtle position changes—such as 0.01mm shifts in bearing position—that precede major failures. Its 100Hz update rate ensures real-time monitoring, even in high-speed applications like centrifugal compressors. This level of precision enables predictive maintenance by tracking wear trends over time.

Extreme environment durability: Built to thrive in harsh industrial settings, the 3500/45 operates reliably from -40°C to +85°C. Its rugged construction withstands vibration, humidity, and electrical noise, making it suitable for offshore platforms, steel mills, and chemical plants. This durability ensures consistent performance in environments where electronic components typically degrade.

Typical application scenarios

In power generation, the 3500/45 monitors steam turbine thrust position and differential expansion. By tracking axial movement of the rotor relative to the bearing housing, it detects thrust bearing degradation—critical for preventing rotor-to-stator rubs. The module’s outputs feed into the plant DCS, triggering protective shutdowns or maintenance alerts before damage occurs.

Within oil refineries, the 3500/45 monitors reciprocating compressor rod position and cylinder clearance. It processes LVDT signals to detect rod stretch or piston misalignment, common issues that can cause cylinder scoring. By integrating with the 3500/92 communication gateway, this data becomes accessible to plant-wide monitoring systems, enabling coordinated maintenance scheduling.

In paper mills, the 3500/45 tracks dryer roll expansion and bearing position. It adjusts for thermal growth during startup, ensuring proper nip pressure between rolls. The module’s ability to operate in high-humidity environments ensures reliable performance despite the mill’s moisture-rich conditions, preventing paper web breaks and production losses.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the 3500/45, power off the 3500 rack and verify proper grounding. Check that the installation environment meets temperature and humidity specifications. Required tools include a torque wrench (0.5-0.7Nm), Phillips screwdriver, and anti-static wrist strap. Inspect the module for damage and clean connectors with isopropyl alcohol. Align with rack guides and gently insert until backplane connector engages, then secure with mounting screws.

Maintenance suggestions: Perform quarterly visual inspections of the 3500/45 to check for loose connections or dust accumulation. Calibrate annually using Bently Nevada’s calibration kit to maintain accuracy. If output drift occurs, verify sensor connections and check for electrical noise. For fault codes, consult the 3500 system diagnostics via the rack interface. Use genuine Bently Nevada replacement parts to ensure compatibility. Keep a maintenance log documenting calibrations, alarms, and repairs to track long-term performance.
