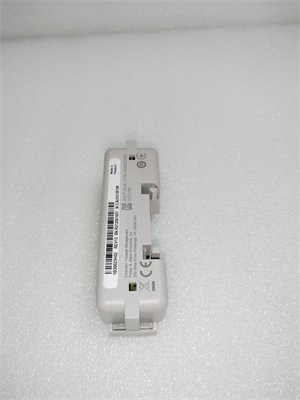

Emerson 1B30023H02 Precision Analog Output Module
Manufacturer: Emerson
Product Number: 1B30023H02
Category: Precision Analog Output Module
System Compatibility: Emerson Ovation Distributed Control System (DCS)
Output Signal Types: 4-20 mA or 0-10 V
Function: Converts digital control signals from the DCS into precise analog outputs to regulate field devices
Product Description
Emerson 1B30023H02 is a high-accuracy analog output module designed for Emerson’s Ovation Distributed Control System (DCS). This module converts digital control signals from the DCS into precise analog outputs (4–20 mA or 0–10 V) to regulate field devices such as control valves, variable frequency drives (VFDs), and actuators. Built for reliability in demanding environments, Emerson 1B30023H02 ensures stable performance in industries like chemical processing, power generation, and water treatment. Its advanced signal conditioning and isolation capabilities make it indispensable for maintaining process accuracy and safety.
Technical Parameters
| Category | Specifications |
|---|---|
| Analog Outputs | 8 channels (4–20 mA, 0–10 V) |
| Resolution | 16-bit |
| Accuracy | ±0.05% of full scale |
| Isolation | 1500 V AC between channels and system |
| Load Capacity | Up to 500 Ω per channel |
| Communication | RS-485, integrates with Ovation DCS via backplane |
| Power Supply | 24 V DC ±10% |
| Dimensions | 130 mm × 30 mm × 25 mm |
| Weight | 190 g |
| Material | Aluminum alloy, corrosion-resistant coating |
| Protection Rating | IP65 |
| Operating Temp. | -40°C to +70°C |
Key Advantages and Features
- Ultra-High Precision: 16-bit resolution and ±0.05% accuracy ensure precise control of critical processes.
- Enhanced Isolation: 1500 V AC isolation prevents ground loops and signal interference.
- Scalable Configuration: 8 independently configurable channels support mixed voltage/current outputs.
- Rugged Design: IP65-rated housing protects against harsh industrial conditions, including dust and moisture.
-
Seamless Integration: Compatible with Emerson Ovation DCS and third-party systems via standard protocols.
- Case Study: A South Korean semiconductor fab achieved 99.8% yield stability by using Emerson 1B30023H02 to control chemical dosing pumps with sub-0.1% error margins.
Applications and Use Cases
Primary Industries:
- Chemical Processing: Flow control of reactive fluids, pH adjustment systems.
- Power Generation: Boiler feedwater valve regulation, turbine speed control.
- Water Treatment: Chlorine dosing, pump speed modulation.
- Pharmaceuticals: Batch reactor temperature/pressure control.
Application Example:
In a Canadian oil sands facility, Emerson 1B30023H02 was deployed to manage steam injection valves for bitumen extraction. The module’s high-resolution outputs reduced valve hysteresis by 40%, optimizing energy consumption and production throughput.
Competitive Differentiation
Compared to generic analog output modules, Emerson 1B30023H02 delivers:
- Superior Accuracy: ±0.05% vs. typical ±0.1% in competing modules.
- Higher Channel Density: 8 channels in a compact design vs. 4–6 channels in similar units.
- Extended Load Capacity: Supports 500 Ω loads, enabling direct control of high-impedance actuators.
Selection Guidelines
- Signal Requirements: Match output types (4–20 mA or 0–10 V) to actuator/valve specifications.
- Environmental Conditions: Ensure IP65 rating aligns with installation area (e.g., outdoor, hazardous zones).
- System Compatibility: Verify integration with Emerson Ovation DCS or third-party controllers.
- Future-Proofing: Reserve channels for potential system expansions or redundancy.
Installation and Usage Notes
- Wiring: Use shielded twisted-pair cables to minimize electromagnetic interference (EMI).
- Calibration: Perform initial calibration using certified tools to maintain accuracy.
- Thermal Management: Avoid installing near heat sources exceeding 70°C.
- Firmware Updates: Schedule periodic updates via Emerson’s technical support portal.
