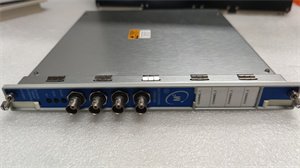

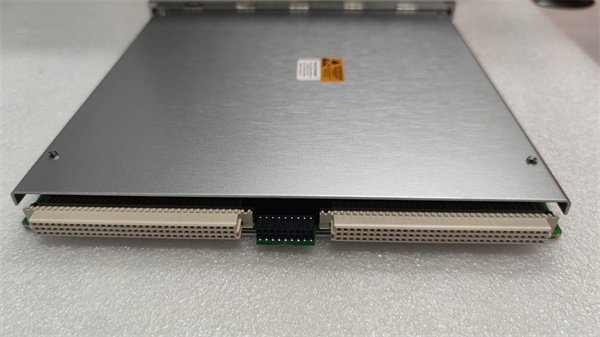

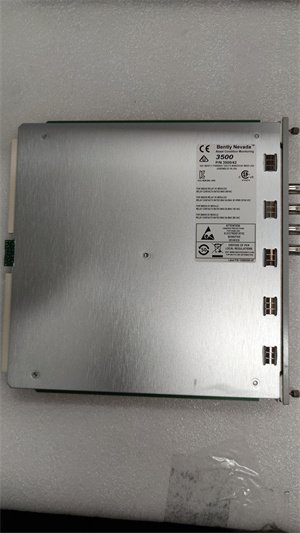

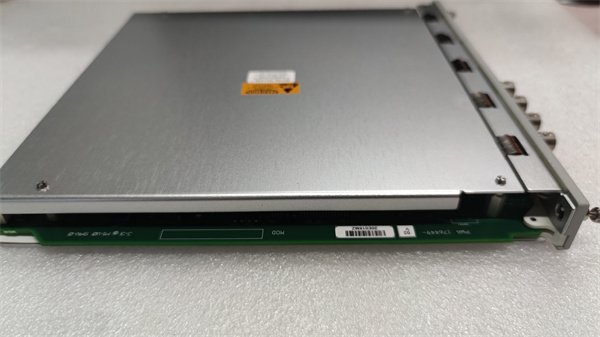

Bently 3500/42-01-00 AC Power Input Module
Manufacturer: Bently Nevada
Product Number: 3500/42-01-00
Category: AC Power Input Module
Series: Bently 3500 Series mechanical protection systems
Function: Converts AC voltage into stable DC power for the 3500 Rack ensuring reliable operation of vibration monitoring and protection modules
Product Description
The Bently 3500/42-01-00 is a high-performance AC power input module designed for Bently 3500 Series mechanical protection systems. It converts AC voltage into stable DC power for the 3500 Rack, ensuring reliable operation of vibration monitoring and protection modules. With dual-channel redundancy and self-diagnostic capabilities, the 3500/42-01-00 supports continuous operation in critical environments. It is compatible with both high-voltage (175–264 VAC) and low-voltage (85–132 VAC) inputs, making it versatile for global industrial applications.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 175–264 VAC (High Voltage) or 85–132 VAC (Low Voltage) |
| Output Voltage | 24 VDC ±10% |
| Current Capacity | 5 A |
| Redundancy | Dual-channel support (via 3500/15 Rack) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Compatibility | Bently 3500/05 Rack, 3500/15 Power Supply |
Advantages and Features
- Dual-Channel Redundancy: Ensures uninterrupted power supply by supporting two independent input sources.
- Wide Voltage Range: Adapts to global power standards without additional converters.
- Self-Diagnostic Function: Monitors output stability and triggers alarms for voltage deviations.
- Hot-Swap Capability: Enables safe replacement without system shutdown.
- EMI/RFI Protection: Reduces interference for reliable signal transmission.
Application Fields and Case Studies
- Energy: Powering turbine vibration monitoring systems in power plants.
- Manufacturing: Providing stable power for compressor protection modules in automotive factories.
- Oil & Gas: Supporting offshore drilling equipment’s condition monitoring systems.
Case Study: A chemical plant in Texas reduced unplanned downtime by 20% using the 3500/42-01-00’s redundancy feature to prevent power-related failures in critical pumps.
Competitor Comparison
The 3500/42-01-00 outperforms alternatives with:
- Higher voltage tolerance (264 VAC vs. 250 VAC).
- Built-in redundancy support (dual-channel vs. single-channel).
- Faster response time to voltage fluctuations (≤5 ms).
Selection Recommendations
- Redundancy Requirements: Pair with 3500/15-02-02-00 for dual AC power inputs in safety-critical systems.
- Voltage Standards: Choose 3500/42-01-00 for high-voltage regions or 3500/42-02-00 for low-voltage environments.
- Space Constraints: Opt for compact rack-mounted configurations (3500/05) for limited spaces.
Precautions
- Installation: Ensure proper grounding and use shielded cables to prevent electrical noise.
- Maintenance: Replace fuses (01720025) only with Bently-approved parts.
- Firmware Updates: Regularly update via Bently’s System 1 software to enhance compatibility.
