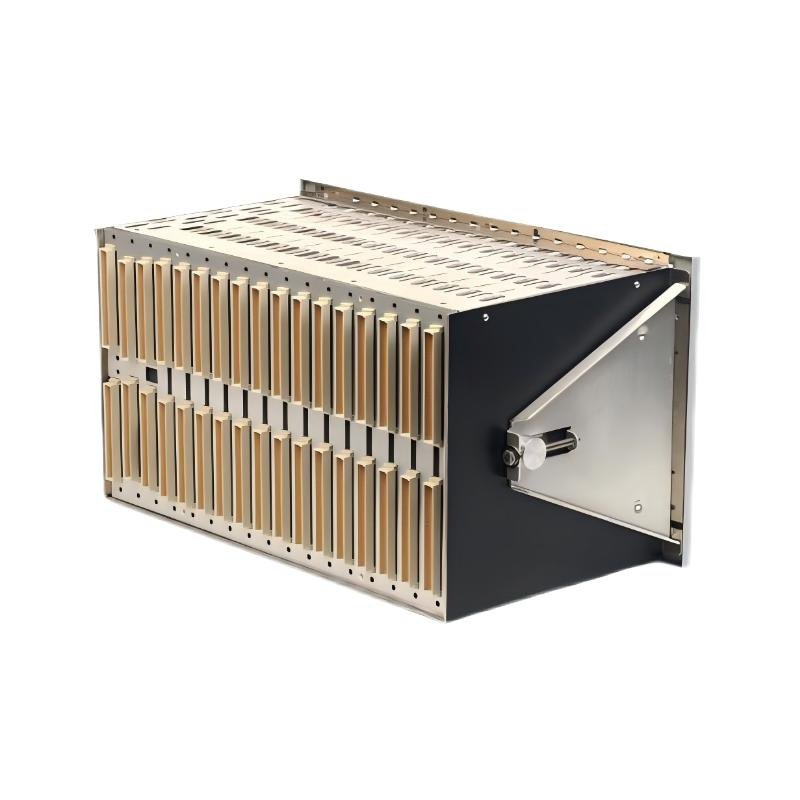

Bently Nevada 3500/05-01-02-01-00-00 rack assembly
Manufacturer: Bently Nevada
Product Number: 3500/05-01-02-01-00-00
Category: 19-Inch Rack Assembly
Number of Slots: 14
Series: 3500 Series Machinery Protection System
Mounting: Standard 19-inch rack mount
Backplane: High-speed serial communication
Product Description
The Bently Nevada 3500/05-01-02-01-00-00 is a full-size 19-inch rack designed for the Bently Nevada 3500 Series machinery protection system. It provides 14 slots for mounting monitor modules and power supplies, facilitating seamless communication between modules and ensuring reliable power distribution. This rack is essential for creating a centralized monitoring hub in industrial machinery protection applications.
Main Features
-
14-slot capacity: Accommodates up to 14 modules, including monitor modules and power supplies.
-
19-inch EIA standard: Fits into standard 19-inch equipment racks for easy integration.
-
Full-size design: Offers more space for module expansion compared to mini-racks.
-
Mounting options: Designed for rack mounting, ensuring secure installation.
-
Agency approval: Complies with European CE standards for safety and electromagnetic compatibility.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/05-01-02-01-00-00 |
| Product Type | System Rack |
| Mounting | Rack Mount (19-inch EIA) |
| Operating Temp. | -52°C to +100°C |
| Storage Temp. | -52°C to +105°C |
| Compliance | CE |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC |
| Module Slots | 14 |
| Hot-Swappable | Yes |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 10–90% RH (non-condensing) |
| Vibration | 5–150 Hz, 2G |
| Shock Resistance | 15G, 11ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/05-01-02-01-00-00 system rack is widely utilized in various industries for machinery protection and monitoring:
-
Oil & Gas: Monitoring of pumps, compressors, and turbines in refineries and offshore platforms.
-
Power Generation: Protection of critical equipment like generators and turbines.
-
Chemical Processing: Monitoring of reactors and mixers to ensure safe operations.
-
Water Treatment: Protection of pumps and motors in water treatment facilities.
-
Mining: Monitoring of crushers, conveyors, and mills in mining operations.
