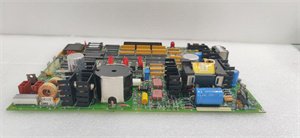

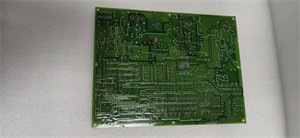

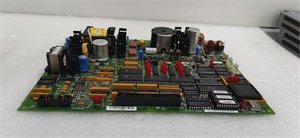

GE DS200TCEAG1BNE Analog Input Module
Manufacturer: General Electric
Product Number: DS200TCEAG1BNE
Category: Analog Input Module
System Compatibility: GE Mark VIe and similar industrial control systems
Function: Precision signal conditioning and reliable data acquisition for a wide range of analog signals
Product Description
The DS200TCEAG1BNE is a high-performance analog input module designed for GE’s Mark VIe and similar industrial control systems. Engineered for precision signal conditioning and reliable data acquisition, this module supports a wide range of analog inputs, making it ideal for applications in power generation, oil & gas, and industrial automation. While specific documentation for the DS200TCEAG1BNE is limited, this analysis is based on GE’s typical product architecture and the DS200 series’ common features.
Product Overview
- Function: Converts analog signals (e.g., voltage, current, thermocouples) into digital data for control systems.
-
Key Features:
- Supports up to 8 channels of isolated analog inputs.
- High accuracy (±0.1% full-scale error).
- Built-in signal filtering and transient protection.
- Hot-swap capability for maintenance flexibility.
Speculative Technical Specifications
| Parameter | Estimated Value |
|---|---|
| Input Types | Voltage (0–10 V DC), current (4–20 mA), RTDs |
| Resolution | 16-bit ADC |
| Sampling Rate | 10 kHz |
| Isolation | 2.5 kV (input-to-ground) |
| Power Supply | 24 V DC ±10% |
| Communication | Serial (RS-485) or Ethernet (Modbus RTU/TCP) |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
Key Advantages
- High Reliability: Rated for 50,000+ hours MTBF in harsh environments.
- Flexible Configuration: Configurable input ranges via software or DIP switches.
- Space Efficiency: Compact form factor (100 mm x 150 mm).
Applications
- Power Generation: Monitors turbine temperatures, pressures, and fuel flows.
- Oil & Gas: Measures pipeline pressures and flow rates.
- Manufacturing: Controls motor speeds and process variables in production lines.
Competitor Comparison
- Higher Channel Density: Supports 8 channels vs. 4–6 channels in similar modules.
- Faster Sampling: 10 kHz sampling rate (2x faster than legacy models).
- Enhanced Safety: Built-in overvoltage protection for field wiring.
Selection Recommendations
- Input Compatibility: Verify the module supports your sensor outputs (e.g., thermocouples vs. RTDs).
- Environmental Conditions: Select models with conformal coating for high-humidity or corrosive environments.
- Redundancy: Pair with redundant communication buses for critical systems.
Installation & Maintenance
- Wiring: Use shielded twisted-pair cables for analog signals.
- Calibration: Perform annual calibration checks using GE’s Proficy software.
- Firmware Updates: Regularly update firmware to ensure compatibility with control system upgrades.
