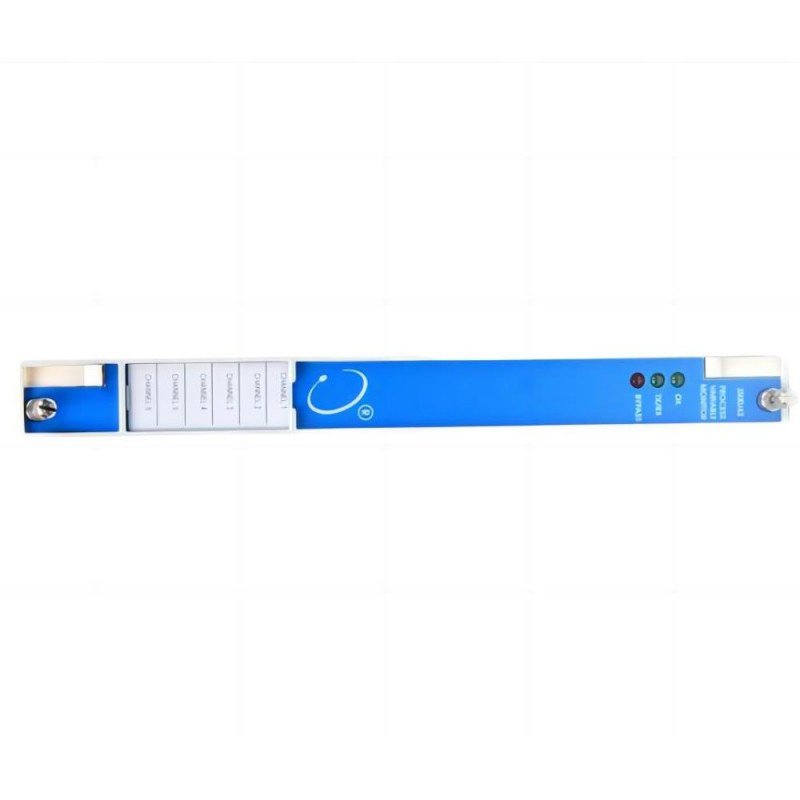

Bently Nevada 3500/62 163179-03 Dual-Channel Temperature Monitor
Manufacturer: Bently Nevada
Product Number: 3500/62 (163179-03)
Category: Dual-Channel Temperature Monitor
Number of Channels: 2
Series: 3500 Machinery Protection System
Application: High-accuracy real-time temperature measurement for turbines, compressors, and other critical machinery
Product Description
The Bently Nevada 3500/62 (163179-03) is a dual-channel temperature monitoring module used within the 3500 Machinery Protection System. It provides high-accuracy, real-time temperature measurement for critical machinery such as turbines, compressors, motors, and pumps.
This module combines precise signal conditioning, digital processing, and alarm logic to continuously monitor two independent temperature inputs. Each channel can be configured to accept either Resistance Temperature Detectors (RTDs) or Thermocouples (TCs).
The 163179-03 version includes an Isolated Input/Output (I/O) module, providing complete channel-to-channel and channel-to-ground isolation. This isolation improves noise immunity and minimizes ground loop interference, making it ideal for electrically noisy or high-voltage industrial environments.
Each channel includes two programmable alarms (Alert and Danger) and one 4–20 mA analog output proportional to the measured temperature.
Key Features
-
Two fully independent temperature measurement channels.
-
Accepts both RTD and Thermocouple inputs.
-
Provides 4–20 mA analog outputs for each channel.
-
Two programmable alarms per channel (Alert and Danger).
-
High isolation between channels, I/O, and backplane (500 V typical).
-
Full compatibility with Bently Nevada 3500 racks and software.
-
Complies with API 670, CE, CSA, and ATEX standards.
-
Ideal for temperature monitoring of rotating and process equipment.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/62 | Dual-channel temperature monitor |
| Assembly Number | 163179-03 | Isolated I/O version |
| System Compatibility | Bently Nevada 3500 Rack | Full-height slot required |
| Number of Channels | 2 channels | Independently configurable |
| Input Types | RTD or Thermocouple | Field-configurable |
| Supported RTDs | Pt100, Nickel, Copper | 2-, 3-, or 4-wire connection |
| Supported Thermocouples | Type E, J, K, T | Software selectable |
| Input Isolation | 500 V channel-to-channel and channel-to-ground | Prevents electrical interference |
| Recorder Output | 4–20 mA per channel | Linear with temperature measurement |
| Alarm Setpoints | Two per channel | Programmable via configuration software |
| Accuracy | ±3 °C typical | Depending on input type and calibration |
| Power Consumption | Approx. 7 W | Normal operational load |
| Operating Temperature Range | –30 °C to +65 °C | Continuous operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5% to 95% non-condensing | Suitable for industrial use |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical assembly weight |
| Mounting Type | Full-height rack slot | Installed in 3500 rack chassis |
| Compliance | API 670, CE, CSA, ATEX | Global industry certifications |
