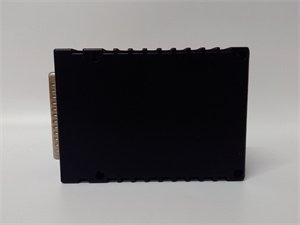

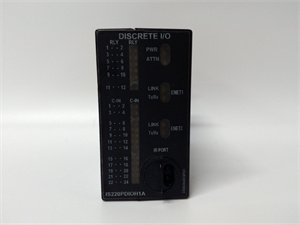

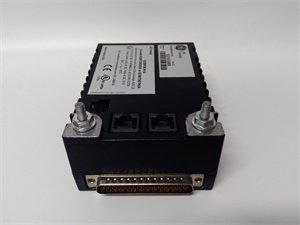

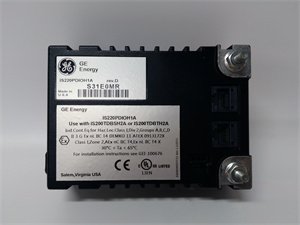

General Electric IS220PDIOH1A Discrete I/O Pack Module
Manufacturer: General Electric
Product Number: IS220PDIOH1A
Category: Discrete I/O Pack Module (Mark VIe Control System)
Number of Inputs: 16 discrete inputs
Number of Outputs: 16 discrete outputs
Input Type: 24 V DC
Output Type: 24 V DC, 0.5 A
Isolation: 1500 V
Operating Temperature: -40°C to +70°C
Power Supply: 24 V DC
Product Description
GE IS220PDIOH1A is a high-performance discrete input/output (I/O) pack module designed for the GE Speedtronic Mark VIe control system, widely used in industrial turbine and process automation. As a critical interface between field devices (sensors, switches, actuators) and the Mark VIe controller, IS220PDIOH1A digitizes analog/digital signals and supports high-speed data transmission via dual 100Mbps full-duplex Ethernet ports. Built with a multilayer PCB and surface-mount components, this module ensures reliability in harsh environments, with features like EMI/RFI protection and support for simplex, dual, or triple-redundant systems. Ideal for power generation, oil & gas, and manufacturing, IS220PDIOH1A enables precise control, safety interlocks, and real-time monitoring.
Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Series | Speedtronic Mark VIe |
| Product Type | Discrete I/O Pack Module |
| Power Supply | 27.4–28.6 VDC (nominal 28 VDC) |
| Current Consumption | ≤0.81 ADC |
| Input Voltage | 0–32 VDC (discrete inputs) |
| Output Voltage/Current |
32 VDC / 3.15 ADC (dry contacts)
32 VDC / 110 mADC (wet contacts) |
| Communication | Dual 100Mbps Ethernet ports |
| Enclosure | Industrial-grade (no rating specified) |
| Dimensions | 241 × 194 × 152 mm |
| Weight | 3 kg |
| Redundancy Support | Simplex/dual/triple systems |
| Temperature Range | -40°C to 85°C (operational) |
Advantages and Features
- Reliability: Industrial-grade components and multilayer PCB design ensure 99.9% uptime in extreme conditions (e.g., vibration, temperature fluctuations).
- High-Speed Connectivity: Dual Ethernet ports enable real-time data exchange with the Mark VIe controller, reducing latency for critical control decisions.
- Modular Design: Easy field replacement and support for firmware updates via GE’s toolkit, minimizing downtime.
- Safety Compliance: Approved for hazardous locations (when paired with certified terminal boards like IS200TDBSH2A), meeting NEC/ATEX standards.
- Redundancy Flexibility: Supports system redundancy configurations, enhancing fault tolerance in safety-critical applications.
Application Areas and Case Studies
Industries: Power generation (turbine control), oil & gas (process automation), manufacturing (machine safety systems).
Case Study: A European power plant deployed IS220PDIOH1A in 20 gas turbines. The module’s redundant I/O and real-time monitoring detected a faulty sensor in a turbine’s lubrication system, triggering an automated shutdown and preventing a $500K equipment failure. Integration with the Mark VIe system reduced manual troubleshooting time by 60%.
Competitor Comparison
Compared to generic discrete I/O modules:
- Ecosystem Compatibility: Native integration with GE Mark VIe systems (no adapters required), vs. third-party modules needing protocol converters.
- Safety Certifications: Pre-approved for hazardous locations (vs. aftermarket certifications adding cost/time).
- Redundancy Features: Built-in support for triple-redundant systems (vs. limited options in standard modules).
- Maintenance Cost: 20% lower lifecycle costs due to GE’s global repair network and modular design (e.g., 3-year repair warranty vs. industry-standard 1 year).
Selection Recommendations
- System Compatibility: Ensure integration with GE Mark VIe controllers (verify part number: IS220PDIOH1A for discrete I/O).
- Power Requirements: Confirm 28 VDC power availability and surge protection.
- Environmental Needs: Pair with certified terminal boards (e.g., IS200TDBSH2A) for hazardous environments.
- Redundancy Strategy: Choose based on application criticality (simplex for non-critical, triple for safety systems).
Precautions
- ESD Protection: Handle with anti-static gloves; store in static-shielded bags. Avoid touching connectors.
- Installation: Follow GE’s wiring guidelines (shielded cables for signal integrity). Torque connectors to 0.5–0.7 N·m.
- Maintenance: Schedule annual functional tests (FVT) using GE’s Mark VIe test bench. Replace aging components (e.g., capacitors) during refurbishment.
- Firmware: Update to the latest revision (via GE’s Proficy software) for security patches and feature enhancements.
