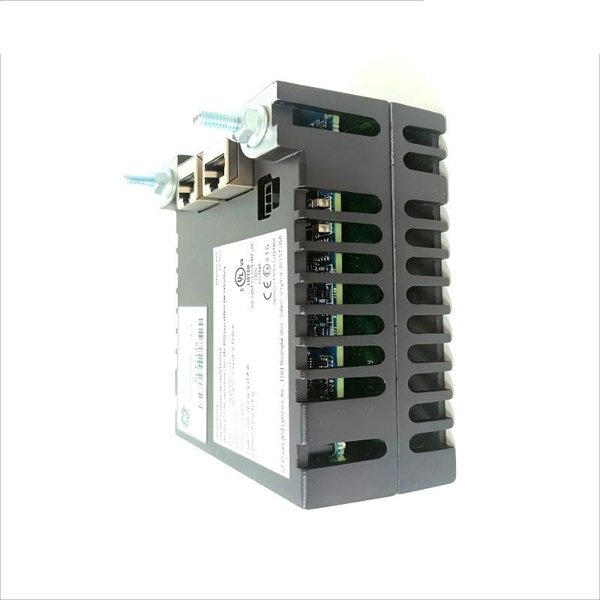

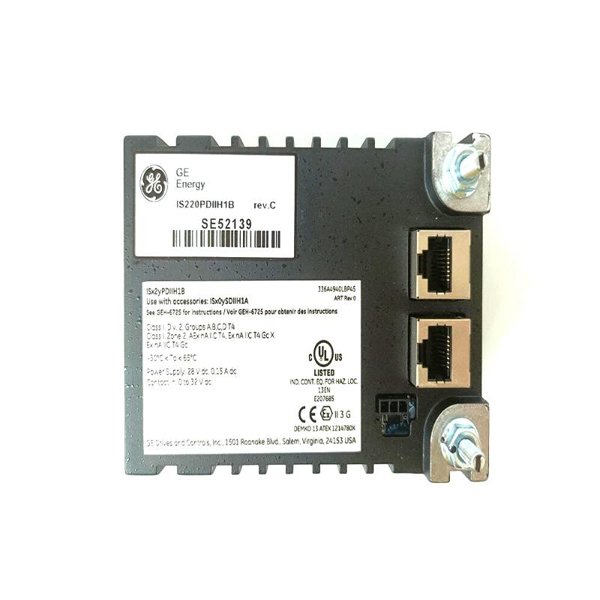

General Electric IS220PDIIH1B Mark VIe system Discrete I/O Pack
Manufacturer:GE
Product Number:IS220PDIIH1B
Product Type:Discrete I/O Pack
Origin:USA
Dimensions:86.2 × 149 × 121 mm
Weight:0.5 kg
Views:86
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS220PDIIH1B is a Discrete Input/Output (I/O) Pack designed for the Mark VIe control system, primarily used in industrial automation and turbine control. It handles discrete signals with high reliability, supporting both sourcing and sinking inputs. It integrates seamlessly with I/O terminal boards and provides real-time signal processing and system diagnostics.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IS220PDIIH1B |
| Function | Discrete I/O Pack |
| Input Type | Sourcing/Sinking Discrete Inputs |
| Output Type | Dry Contact Discrete Outputs |
| Channels | 24 Inputs, 12 Outputs |
| Communication | Ethernet (profinet or control network) |
| Diagnostic LEDs | Yes |
| Operating Temperature | -30°C to +65°C |
| Power Supply | 28 VDC nominal |
| Dimensions (mm) | 86.2 × 149 × 121 |
| Weight | 0.5 kg |
Applications
-
Gas and steam turbine control
-
Industrial process automation
-
Safety interlocking systems
-
Power generation control systems
-
Discrete signal monitoring in control panels
Product Advantages
-
High Signal Reliability: Accurate handling of discrete input/output signals.
-
Robust Design: Industrial-grade construction ensures durability in harsh environments.
-
System Integration: Seamlessly connects with Mark VIe system terminal boards.
-
Self-Diagnostics: Built-in status and fault LEDs enhance operational awareness.
-
Compact Footprint: Saves panel space while maintaining full functionality.
Frequently Asked Questions (FAQ)
Q1: What types of signals does the IS220PDIIH1B support?
A1: It supports discrete (on/off) signals, including sourcing and sinking types.
Q2: Can this module be used in safety-critical systems?
A2: Yes, it is suitable for safety interlocks when configured correctly in Mark VIe systems.
Q3: Is the module hot-swappable?
A3: Yes, the IS220PDIIH1B supports hot-swapping without system shutdown.
Q4: Does it provide channel-level diagnostics?
A4: Yes, each channel has diagnostics and fault indication via LED.
Q5: What is the maximum operating temperature?
A5: The module operates up to +65°C.
Q6: Is Ethernet communication supported?
A6: Yes, it uses Ethernet for communication within the Mark VIe system.
Q7: Can it be directly mounted on the terminal board?
A7: Yes, it plugs directly into compatible I/O terminal boards.
Q8: What is the typical power requirement?
A8: The unit typically operates at 28 VDC.
Q9: Does it support both input and output channels?
A9: Yes, it features 24 discrete inputs and 12 outputs.
Q10: Is it compatible with other GE Mark VIe I/O Packs?
A10: Yes, it integrates seamlessly within the Mark VIe system architecture.
