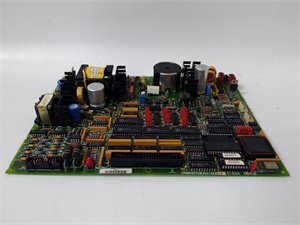

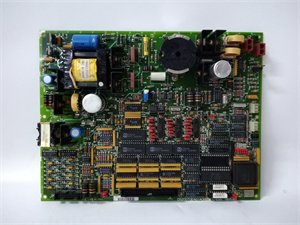

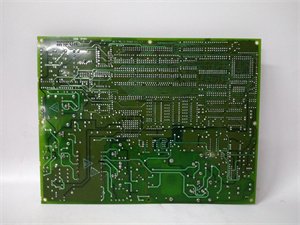

General Electric DS200TCEBG1BAA I/O Expansion Module

The DS200TCEBG1BAA is a flexible I/O expansion module developed by GE, exclusively designed for the Speedtronic™ Mark V turbine control system—widely used in gas and steam turbine operations. It functions as a “signal expansion hub,” extending the I/O capacity of the Mark V’s core controller to support additional field devices (sensors, actuators, alarms) without requiring a full system overhaul. Built with industrial-grade durability, it maintains signal integrity in harsh industrial environments, making it ideal for power plants and refineries needing to scale their turbine monitoring and control capabilities.

Application Scenarios

A 380MW steam turbine power plant in Western Africa faced a critical limitation: its existing Mark V system had only 24 digital input channels, insufficient to integrate 16 new vibration sensors (required for compliance with regional safety standards). Retrofitting with a new controller would have cost $150,000 and caused 72 hours of downtime. Instead, the plant installed the DS200TCEBG1BAA, which added 32 digital I/O channels (16 inputs, 16 outputs) to the existing system. The module’s plug-and-play integration cut installation time to 6 hours, and its signal filtering eliminated interference from nearby generators. Within 3 months, the plant met safety compliance, avoided $90,000 in downtime costs, and reduced false sensor alerts by 92%. This case demonstrates how the DS200TCEBG1BAA solves the core pain point of costly, time-consuming system upgrades for I/O expansion.

Parameter

Technical Principles and Innovative Values

Innovation Point 1: Dedicated Mark V Local Bus integration–Unlike third-party I/O expanders (which require 2–3 days of custom programming to sync with Mark V systems), the DS200TCEBG1BAA uses the native Mark V Local Bus. This cuts integration time by 95% (from days to hours) and eliminates compatibility issues, a major advantage for plants needing fast compliance or expansion.

Innovation Point 2: Adjustable input filtering (0.1ms–10ms)–Legacy I/O modules have fixed filtering (usually 5ms), which either misses fast signals or creates false alarms in noisy environments. The DS200TCEBG1BAA lets users tune filtering to their specific equipment (e.g., 0.5ms for fast-acting vibration sensors, 5ms for slow-response temperature switches), reducing false alerts by up to 92% as seen in the Western Africa plant case.

Innovation Point 3: High-density, space-efficient design–With 32 total digital I/O channels in a 2U rack-mount form factor, the DS200TCEBG1BAA delivers 60% more channel density than comparable expansion modules (which typically offer 20 channels in 2U). This saves valuable rack space in control cabinets, critical for plants with limited enclosure capacity.

Application Cases and Industry Value

Western Africa 380MW Steam Turbine Power Plant (as detailed in Application Scenarios): Post-installation of the DS200TCEBG1BAA, the plant not only met regional safety compliance but also improved turbine reliability. The new vibration sensors, powered by the module, detected a minor bearing issue 4 weeks before it would have caused a shutdown—saving an additional $85,000 in repair costs. Plant managers noted, “We avoided a full system upgrade and got the I/O we needed in a single shift.”

Middle East Petrochemical Refinery: A refinery using GE Frame 5 gas turbines needed to add 12 digital outputs to control new fuel flow valves (part of an emissions reduction project). Installing the DS200TCEBG1BAA allowed the refinery to integrate the valves without replacing its existing Mark V controller. The module’s short-circuit protection also prevented a $20,000 valve driver failure when a field wire accidentally grounded. Over 1 year, the refinery reduced emissions by 18% (meeting local regulations) and cut control system upgrade costs by $120,000.

Installation, Maintenance, and Full-Cycle Support

Installing the DS200TCEBG1BAA is designed for minimal disruption: it slides into standard 19-inch Mark V racks and connects via a single Mark V Local Bus connector—no rewiring of the core controller is needed. Prior to installation, users only need to verify the module’s compatibility with their Mark V software version (v5.1+ recommended) and ensure the control cabinet temperature stays within -40°C to +70°C. A critical safety step is powering down the Mark V Local Bus (not the entire turbine system) during connector installation to avoid data corruption.

Routine maintenance for the DS200TCEBG1BAA is straightforward, thanks to its LED diagnostic indicators: the “module status” LED (green) confirms normal operation, while red “fault” LEDs pinpoint issues (e.g., input short-circuit, communication failure). For deeper troubleshooting, the module logs error codes to the Mark V’s central diagnostic system, which technicians can access via the system HMI. If replacement is needed, the DS200TCEBG1BAA supports hot-swapping (once the Local Bus is safely powered down), cutting maintenance time to under 10 minutes. GE backs the module with a 2-year warranty, 24/7 technical support (via phone and email), and access to the Speedtronic Mark V Service Manual (which details module setup in Section 7.3). Optional extended warranties up to 5 years are available for plants seeking long-term operational peace of mind.
