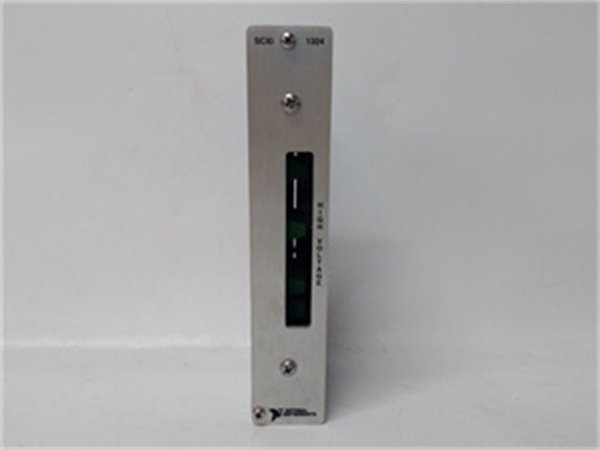

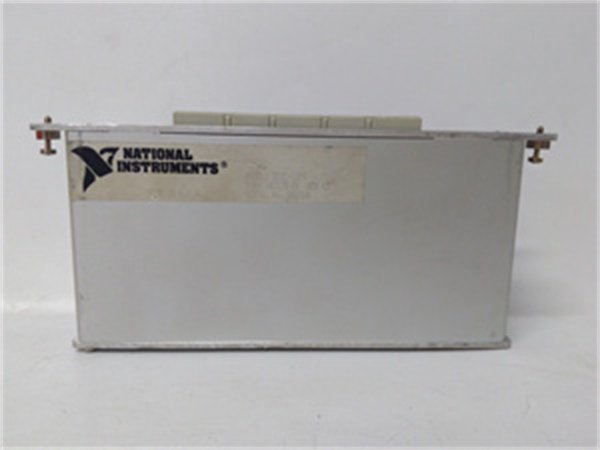

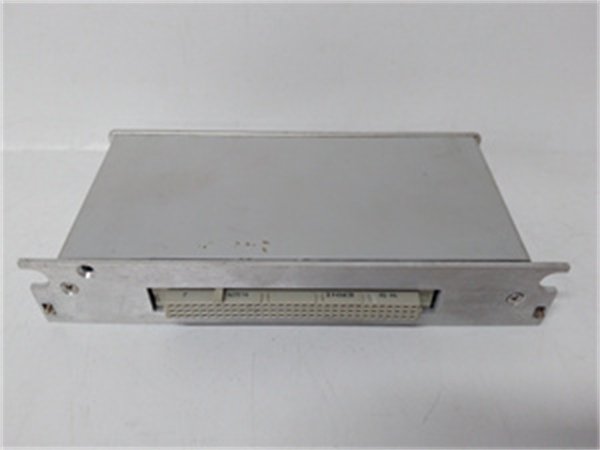

NI SCXI-1324 High–Voltage Screw Terminal Block

The National Instruments SCXI–1324 is a high–voltage screw terminal block that plays a crucial role in high–voltage general–purpose switching applications. As part of the SCXI (Signal Conditioning eXtension for Instrumentation) platform, it offers a reliable and efficient way to interface with other components in a data acquisition, testing, or control system.

Functionally, the SCXI–1324 is engineered to connect to the SCXI–1160 relay module. Its 48 screw terminals establish connections to the 16 relays inside the SCXI–1160 relay module. This connection enables the seamless routing and control of high–voltage signals, making it an essential component for applications where precise switching of high–voltage signals is required. Whether in an industrial power distribution system or a high–voltage research experiment, the SCXI–1324 provides the necessary interface to ensure smooth operation.

Detailed Parameter Table

Core Advantages and Technical Highlights

High–Voltage Handling Capability

The SCXI–1324 is specifically designed to handle high–voltage signals, with a common–mode isolation of 250 VRMS for both channel–to–channel and channel–to–ground. This high–voltage handling ability makes it suitable for applications such as industrial power control systems, where high–voltage signals are used to operate large–scale equipment. In these applications, the SCXI–1324 can safely and effectively route high–voltage signals, ensuring the proper functioning of the system while maintaining electrical safety.

Ample Connection Points

With 48 screw terminals, the SCXI–1324 offers a large number of connection points. This is beneficial in complex systems where multiple high–voltage signals need to be connected and routed. For example, in a multi–channel high–voltage testing setup, the numerous screw terminals allow for easy connection of different sensors, actuators, or other components, simplifying the wiring process and reducing the chances of wiring errors.

Compatibility with SCXI–1160

The seamless compatibility with the SCXI–1160 relay module is a significant advantage. When integrated with the SCXI–1160, the SCXI–1324 can take full advantage of the relay module’s capabilities for signal switching and control. This compatibility ensures that the overall system can be easily configured and optimized for specific high–voltage switching applications, whether it’s for industrial automation, power grid monitoring, or high–voltage research.

Typical Application Scenarios

In industrial power distribution systems, the SCXI–1324 is used to control and monitor high–voltage circuits. For instance, in a large manufacturing plant, high–voltage electricity is used to power heavy–duty machinery. The SCXI–1324, in combination with the SCXI–1160, can be used to switch these high–voltage circuits on and off, ensuring that the machinery receives power when needed and is safely isolated when not in use. This helps in protecting the equipment and ensuring the smooth operation of the manufacturing process.

In high–voltage research laboratories, the SCXI–1324 is invaluable for conducting experiments. When studying the behavior of high–voltage electrical components or materials under different conditions, precise control and routing of high–voltage signals are essential. The SCXI–1324 allows researchers to connect various high–voltage sensors and instruments to the SCXI system, enabling them to accurately measure and analyze the data obtained from their experiments. This contributes to advancements in fields such as electrical engineering, materials science, and high–voltage technology.

For power grid monitoring and control, the SCXI–1324 plays a role in ensuring the reliable operation of the power grid. High–voltage signals in the power grid need to be monitored and controlled to maintain grid stability. The SCXI–1324 can be used to connect sensors that measure parameters such as voltage, current, and power quality. By routing these high–voltage signals to the appropriate SCXI modules, the data can be processed and analyzed, allowing operators to detect and address any issues in the power grid promptly.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the SCXI–1324, ensure that the SCXI chassis is in a suitable environment. It should be clean, dry, and well–ventilated to prevent any issues related to dust, moisture, or overheating. Power off the chassis to avoid electrical accidents during the installation process. Gather the necessary tools, which include a wire cutter, wire insulation stripper, long–nose pliers, a 1/8 in. flathead screwdriver, and number 1 and 2 Philips–head screwdrivers. When handling the SCXI–1324, take care not to damage the screw terminals or any internal components. Identify the appropriate slot on the front of the SCXI chassis where the SCXI–1324 will be installed, following the chassis layout guidelines provided in the SCXI system documentation.

Maintenance Suggestions

For regular maintenance, visually inspect the SCXI–1324 for any signs of physical damage, such as loose screws, damaged terminals, or signs of overheating. Check for any abnormal odors, which could indicate an electrical problem. If there are issues with signal routing or switching, refer to the user manual to troubleshoot. First, verify the connections at the screw terminals to ensure they are secure. In case of a malfunction, if a spare part replacement is needed, always use genuine NI replacement parts to maintain the high–performance and safety standards of the SCXI–1324. Regularly clean the terminal block to remove dust and debris, as this can help in maintaining optimal electrical conductivity and preventing short–circuits.

Service and Guarantee Commitment

NI offers a comprehensive quality assurance program for the SCXI–1324. The product undergoes rigorous testing during the manufacturing process to ensure it meets the highest industry standards for performance, safety, and reliability. In terms of after–sales service, NI provides detailed user manuals and installation guides, which are available online for easy access. Technical support is accessible through user forums, where users can interact with NI experts and other users to solve any issues they may encounter. In case of a product defect within the 3–year warranty period, NI will provide repair or replacement services. This commitment to quality and customer support gives users the confidence that the SCXI–1324 is a reliable choice for their high–voltage switching and data acquisition needs.
