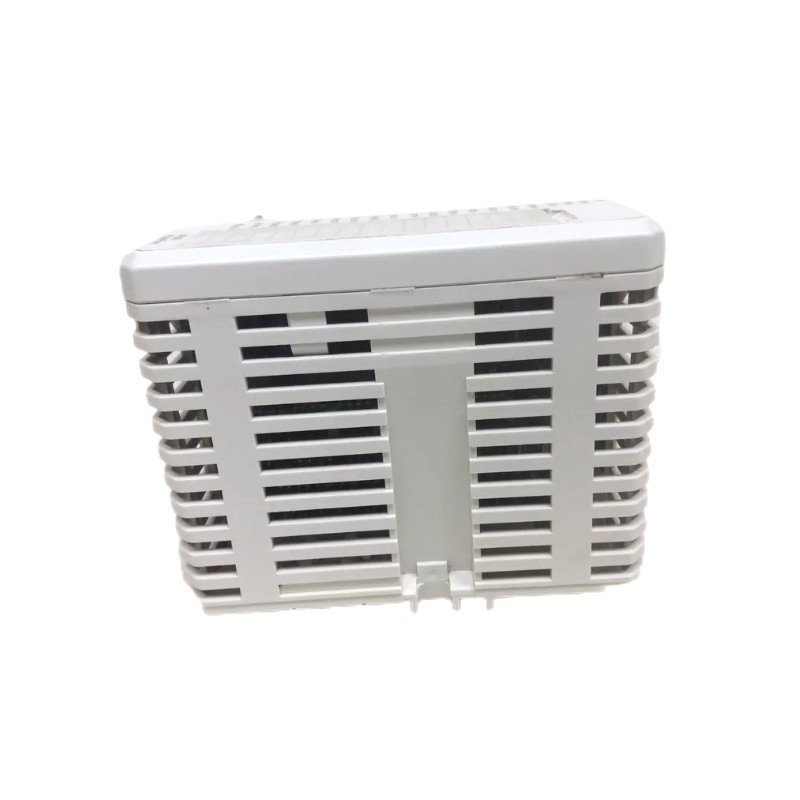

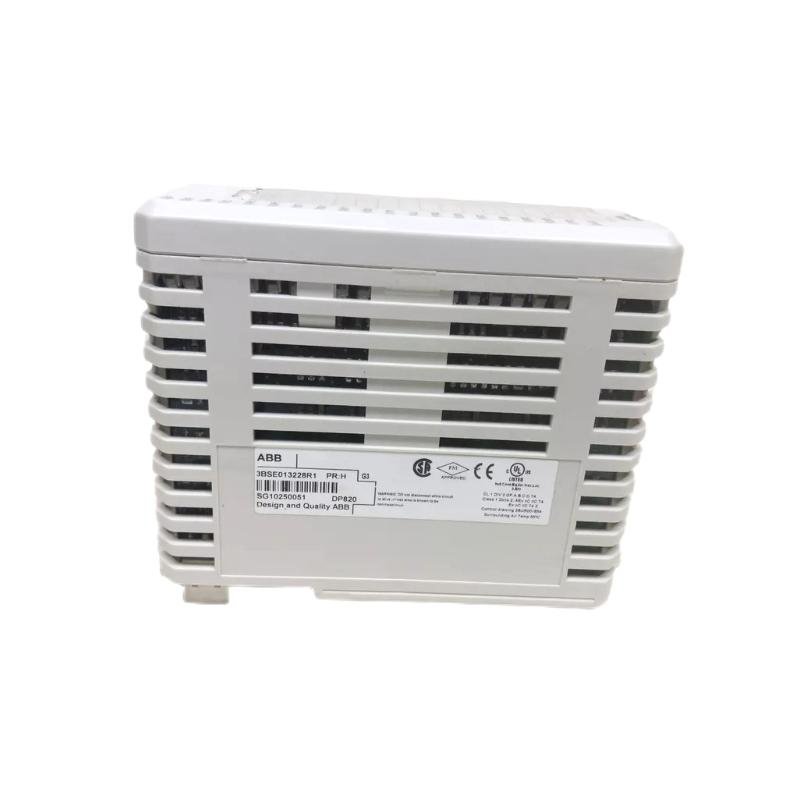

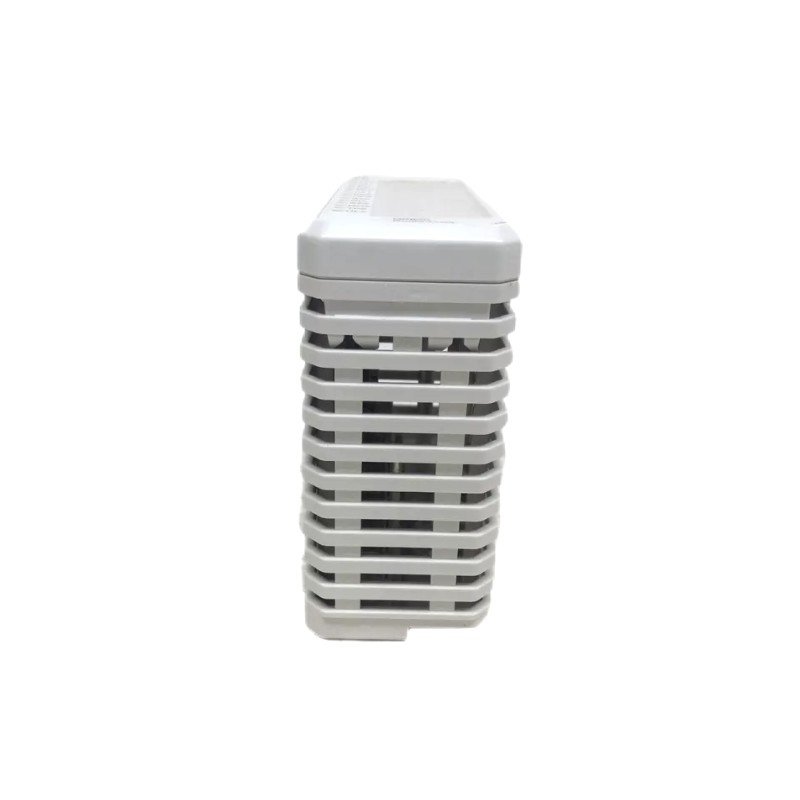

ABB DP820 3BSE013228R1 Pulse counter Module
Manufacturer: ABB
Product Number: DP820 (3BSE013228R1)
Category: Dual-Channel Pulse Counter Module
Number of Channels: 2
Maximum Frequency: 1.5 MHz
Input Types: Incremental pulse sensors
Operating Temperature: -20°C to +60°C
Power Supply: 24 V DC
Product Description
The ABB DP820 3BSE013228R1 Pulse Counter Module is a high-performance dual-channel pulse counter module designed for incremental pulse sensors, supporting frequencies up to 1.5 MHz. Each channel is equipped with counters and registers for position/length and speed/frequency measurements. The module provides three balanced input ports for connecting a pulse transmitter, including one digital input and one digital output. DP820 supports connections to pulse transmitters with RS422, +5 V, +12 V, +24 V, and 13 mA interfaces.
The DP820 is compatible with Module Termination Units (MTUs) TU810V1, TU812V1, TU814V1, TU830V1, and TU833, and is widely used in industrial automation, process control, and various other applications.
Key Features
- Dual Channel Design: The module features 2 independent pulse counting channels, suitable for a wide range of applications.
- Wide Interface Support: Supports various sensor signal interfaces including RS422, 5 V, 12 V, 24 V, and 13 mA, providing flexible connection options.
- Simultaneous Position and Speed Measurement: The module can simultaneously perform pulse counting (position/length) and frequency measurement (speed), catering to multiple industrial needs.
- High-Precision Measurement: Each channel utilizes a bidirectional 29-bit counter for pulse counting and can measure frequencies from 0.25 Hz to 1.5 MHz, providing highly accurate data.
- Module Compatibility: The DP820 is compatible with ABB’s TU810, TU812, TU814, TU830, and TU833 MTUs, offering multiple installation and wiring options.
Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.15 kg |
General Information
| Parameter | Specification |
| Product Number | 3BSE013228R1 |
| Type | Pulse Counter |
| Signal Specification | 24 V d.c. (12–32 V d.c.) |
| Channel Count | 2 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High Integrity | No |
| Intrinsic Safety | No |
| Mechanical Type | S800 |
Detailed Data
| Parameter | Specification |
| Input Impedance | 2.5 kΩ (Digital Input) |
| Isolation | Individually isolated between channels and to circuit common |
| Error | Max frequency measurement error relative error absolute error (temperature drift included): [320/(MEASTIMEx in ms)] ppm, [(320/(MEASTIMEx in ms) +100] ppm |
| Current Limiting | Sensor power can be current-limited by the MTU |
| Maximum Field Cable Length | 200 meters (218 yards) |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Power Dissipation | 2.5 W |
| +5 V Modulebus Current Consumption | 120 mA |
| +24 V Modulebus Current Consumption | 0 |
| +24 V External Current Consumption | 0 |
Diagnostics
| Parameter | Specification |

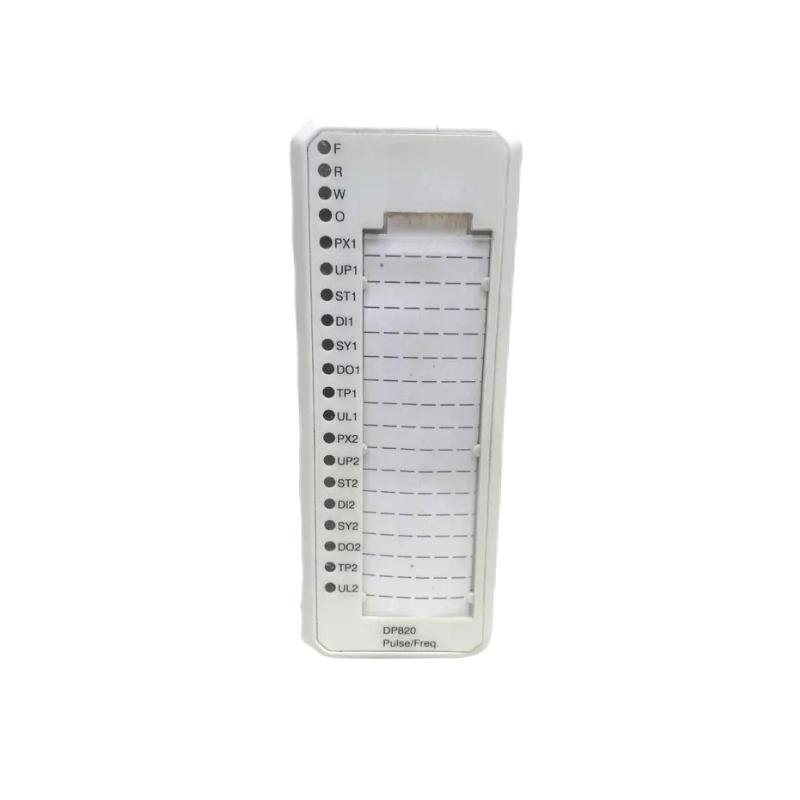

| Front LEDs | P(Pulse), UP(Direction), ST(Sync), DI(Digital Input), SY(Sync), DO(Digital Output), TP(Transmission Power OK), per channel |
| Supervision | Process voltage monitoring per channel |
| Status Indication Monitoring Cycle | Module Error, Module Warning, Channel Error |
Industry Applications
The ABB DP820 3BSE013228R1 Pulse Counter Module is suitable for use in a wide range of industrial applications, particularly in process control and automation systems. Its high-frequency measurement capabilities and dual-channel design make it ideal for the following industries:
Automation and Process Control
The DP820 module is capable of accurately measuring data from various incremental pulse sensors, widely used in automated production lines, equipment monitoring, and position control systems.
Packaging and Logistics Industry
In packaging and logistics automation, the DP820 can be used for precise measurement of item conveyance and packaging length, ensuring the correct flow of materials.
Mechanical Manufacturing and Precision Control
In precision machinery applications, the DP820’s high-precision pulse counting and frequency measurement make it an ideal choice for CNC machine tools and other precision processing equipment.
Power and Energy Management
In the power industry, the DP820 can be used for measuring frequency and position data, helping monitor and control the operational status of power equipment to ensure safe and stable operation.
