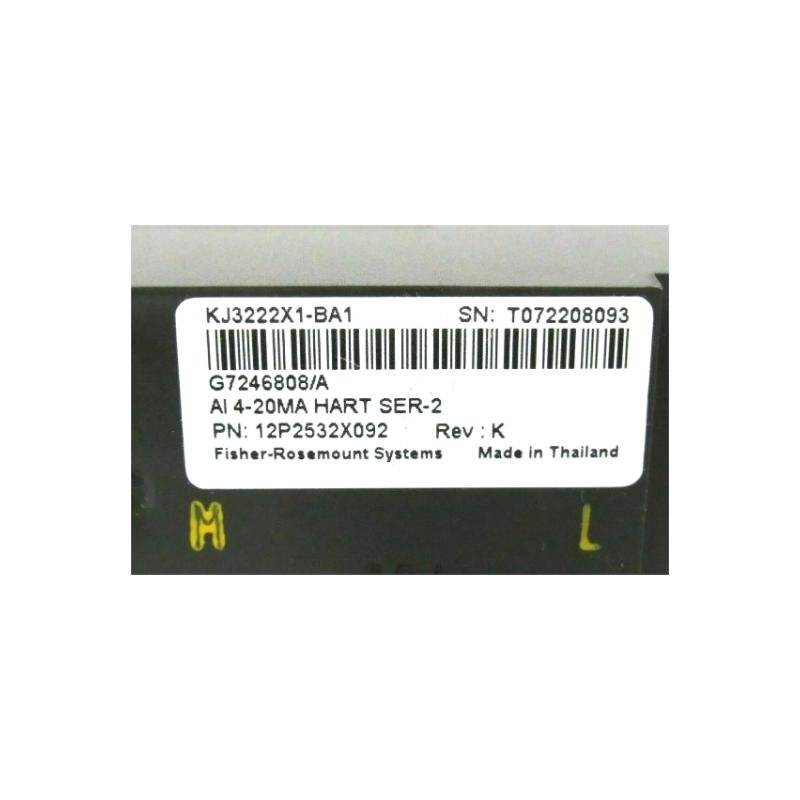

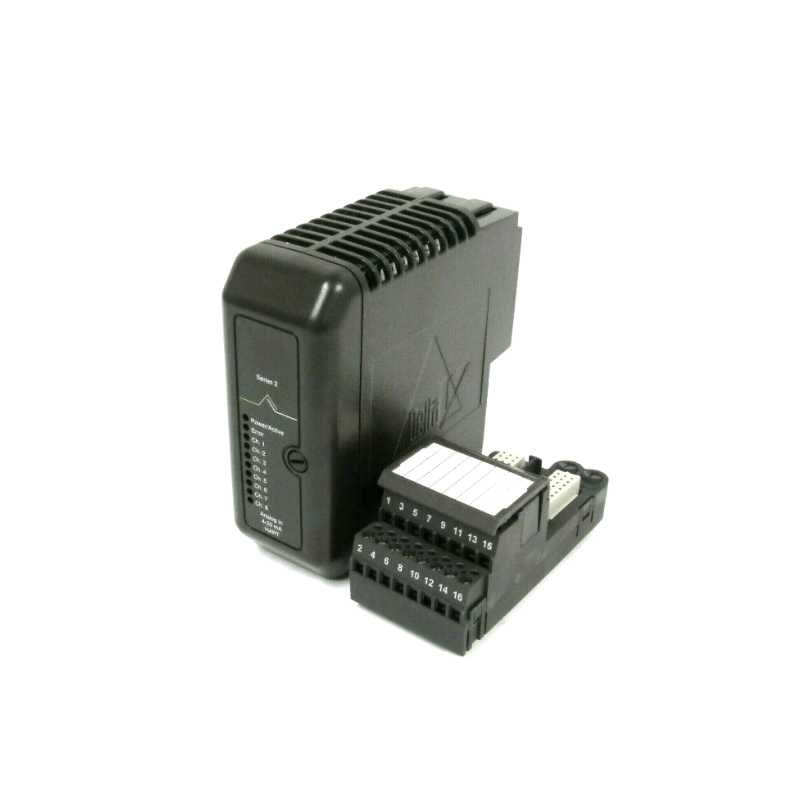

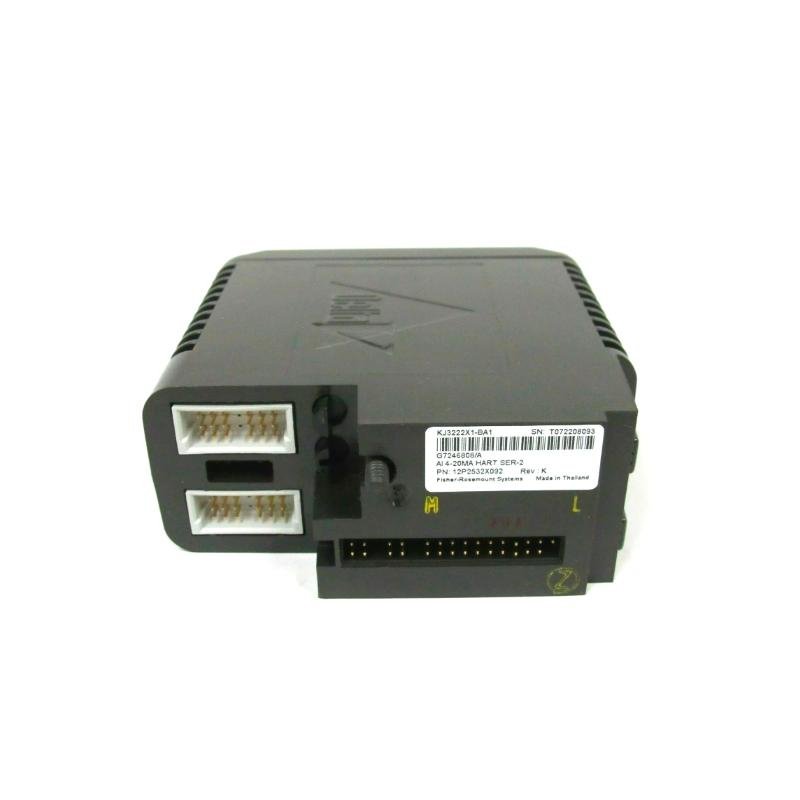

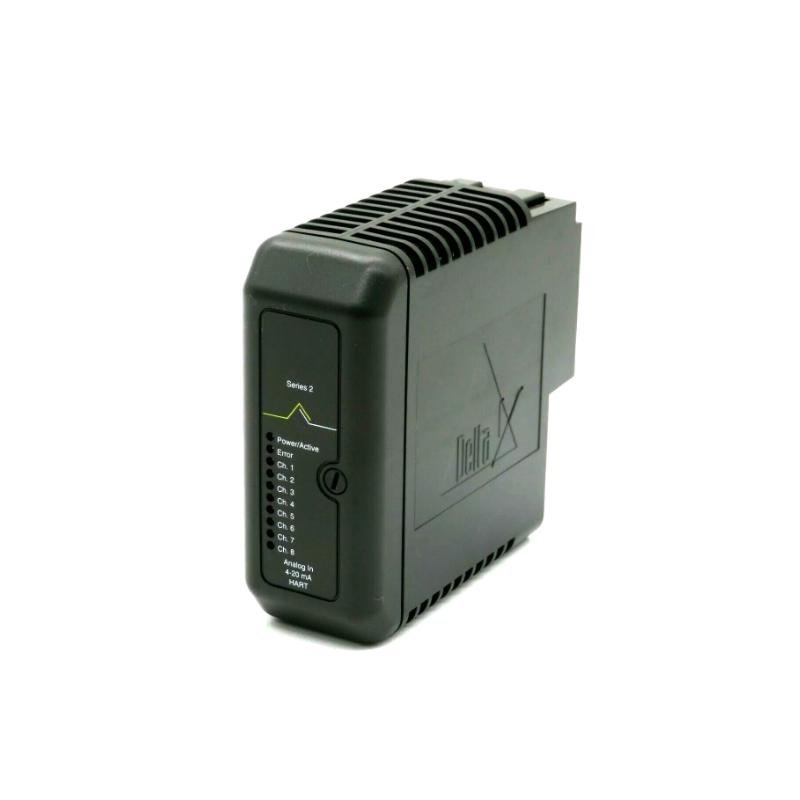

Emerson KJ3222X1-BA1 12P2532X092 Analog Input Module
Manufacturer: Emerson
Product Number: KJ3222X1-BA1 (12P2532X092)
Category: 8-Channel Analog Input Module (DeltaV M-Series)
Number of Channels: 8
Input Signal Types: 4-20 mA, 0-10 V, thermocouple, RTD
Resolution: 16 bits
Accuracy: ±0.1% of full scale
System Compatibility: Emerson DeltaV DCS
Operating Temperature: -40°C to +70°C
Product Description
The Emerson KJ3222X1-BA1 is an 8-channel analog input module designed for integration with the DeltaV M-Series Traditional I/O system. This module efficiently converts analog signals from field instruments into digital data, enabling precise processing by the DeltaV control system. Its high accuracy and reliability make it suitable for various industrial automation applications.
Product Specifications
The following table outlines the detailed specifications of the KJ3222X1-BA1 analog input module:
| Specification | Details |
|---|---|
| Model Number | KJ3222X1-BA1 |
| Input Channels | 8 |
| Input Type | 2-wire, 4-20mA current loop |
| Input Range | 0-20mA or 4-20mA |
| Resolution | 12 bits |
| Accuracy | ±0.1% of full scale |
| Isolation Voltage | 500Vrms |
| Power Supply | DC 24V |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 80 x 120 x 25 mm |
| Weight | 0.18 kg |
| Communication Interface | RS485 |
| Compliance | ATEX certified for use in hazardous areas; refer to document 12P2046 for installation instructions. |
Product Applications
The KJ3222X1-BA1 module is primarily used in industrial automation systems where precise analog signal processing is required. Typical applications include:
- Process Control Systems: Managing variables such as temperature, pressure, and flow in industries like chemical processing, oil and gas, and power generation.
- Data Acquisition: Collecting analog signals from field instruments for monitoring and analysis in sectors such as manufacturing and utilities.
- Remote Monitoring: Facilitating data transmission from remote sites to central control systems, ensuring operational efficiency and safety.
Product Advantages
- High Precision: With a 12-bit resolution and an accuracy of ±0.1% of full scale, the module ensures reliable and precise measurements.
- Wide Operating Range: Designed to operate in temperatures ranging from -40°C to +85°C, it suits diverse industrial environments.
- Robust Isolation: Features a 500Vrms isolation voltage, protecting the system from electrical surges and ensuring data integrity.
- Compact Design: Its dimensions of 170mm x 105mm x 32mm and weight of approximately 1.2kg facilitate easy installation in limited spaces.
- Flexible Integration: Equipped with an RS485 communication interface, it allows seamless integration with various control systems.
- Hazardous Area Certification: ATEX certification ensures safe operation in hazardous environments, adhering to stringent safety standards.
