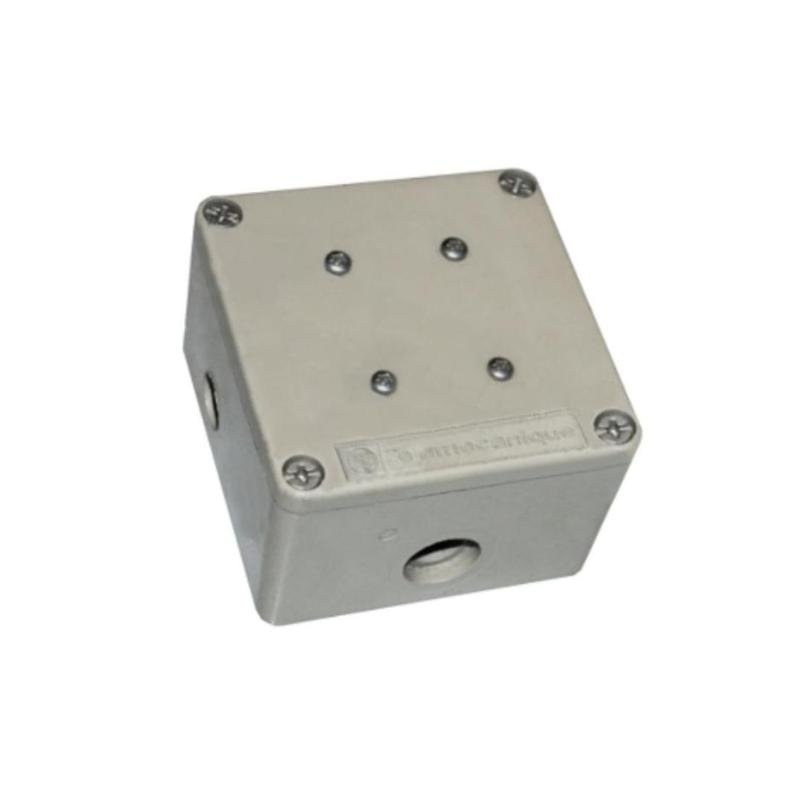

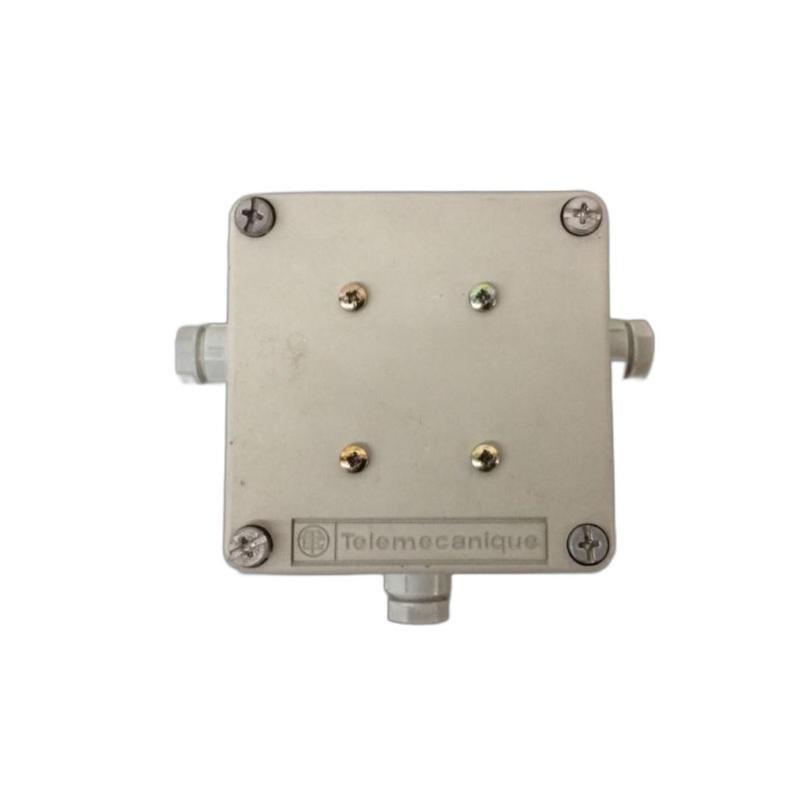

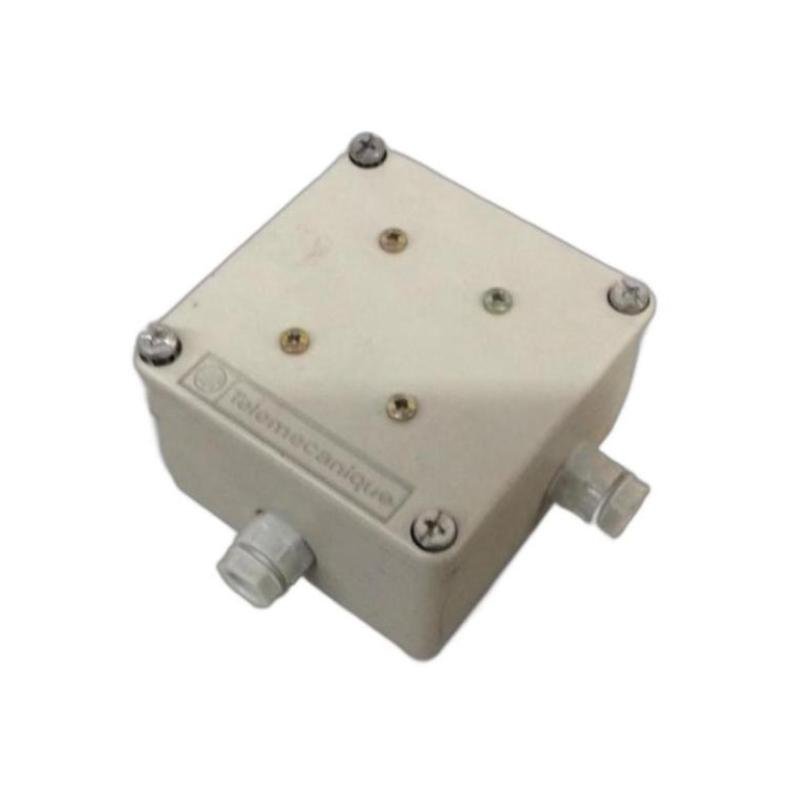

Schneider TSXSCA50 Tee Connector
Manufacturer: Schneider Electric
Product Number: TSXSCA50
Category: Tee Connector (AS-Interface Network)
Network Type: AS-Interface (AS-i)
Function: Connects multiple devices in an AS-i industrial automation network
Application: Industrial automation systems using AS-Interface for device connectivity
Product Description
The Schneider TSXSCA50 Tee Connector is a high-quality, reliable device used for connecting multiple devices in an industrial automation system. It is designed for use with Schneider Electric’s AS-Interface (AS-i) network, which facilitates efficient communication between various I/O devices, sensors, and actuators. The TSXSCA50 Tee Connector provides a simple and effective way to branch out the AS-i network, allowing for more flexible and scalable system configurations.
With its robust construction and ease of installation, the TSXSCA50 ensures reliable connections in industrial environments, even in harsh conditions. This connector is essential for expanding and extending the AS-i network, enabling seamless communication between devices while maintaining the integrity and performance of the system.
Key Features
-
AS-Interface Compatibility: Specifically designed for use in AS-Interface networks, enabling reliable communication between connected devices.
-
Tee Configuration: Allows for branching out the AS-i network, providing more flexibility in connecting devices in different locations.
-
Durable Construction: Built with industrial-grade materials to ensure long-lasting performance in harsh environments.
-
Easy Installation: Features simple and quick installation with plug-and-play capabilities, reducing setup time.
-
High Reliability: Ensures stable and secure connections, even in challenging conditions, with minimal downtime.
-
Compact Design: Small, lightweight, and space-saving, making it suitable for installation in tight spaces.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 192 × 72 × 220 mm |
| Weight | 0.52 kg |
General Information
| Item | Specification |
|---|---|
| Model | TSXSCA50 |
| Manufacturer | Schneider Electric |
| Compatibility | AS-Interface Network |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Installation | Plug-and-Play |
Performance Parameters
| Item | Specification |
|---|---|
| Network Topology | Tee Connector for AS-i |
| Number of Connections | Supports up to 2 devices per branch |
| Cable Connection | Screw terminal for easy connection |
| Voltage Rating | 24 V DC |
| Maximum Current | 4 A per connection |
Electrical Specifications
| Item | Specification |
|---|---|
| Voltage Supply | 24 V DC |
| Maximum Power Consumption | ≤ 1 W |
| Operating Current | ≤ 0.04 A |
Industry Applications
The Schneider TSXSCA50 Tee Connector is an essential component in a variety of industrial applications where reliable communication and connection are required. Its compatibility with the AS-Interface network makes it ideal for:
-
Manufacturing Automation: Connecting multiple sensors, actuators, and control devices in manufacturing systems, ensuring seamless data exchange and efficient process control.
-
Energy Management: Facilitating the connection of monitoring and control devices in energy systems for efficient energy usage and optimization.
-
Building Automation: Used to connect various devices such as lighting systems, HVAC units, and security systems, enabling centralized control and monitoring.
-
Water Treatment Systems: Integrating sensors and actuators in water treatment plants to monitor and control various treatment processes.
-
Logistics and Warehousing: Helps to expand network connectivity in logistics systems for better tracking and control of goods.
With its easy installation, robust design, and compatibility with AS-Interface networks, the TSXSCA50 Tee Connector is a versatile and valuable tool for ensuring efficient and reliable system communication across various industrial applications.
