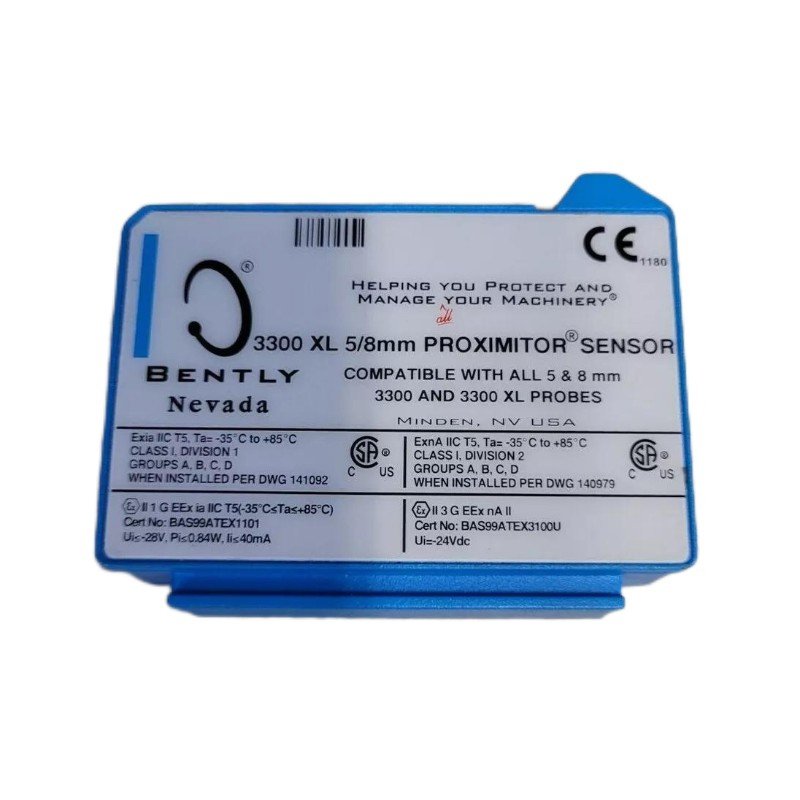

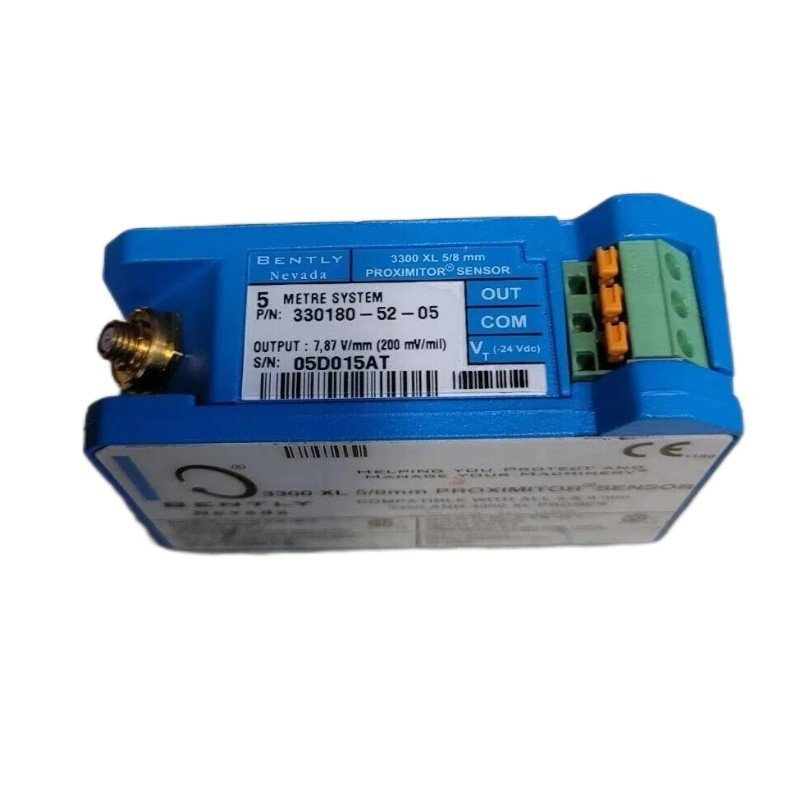

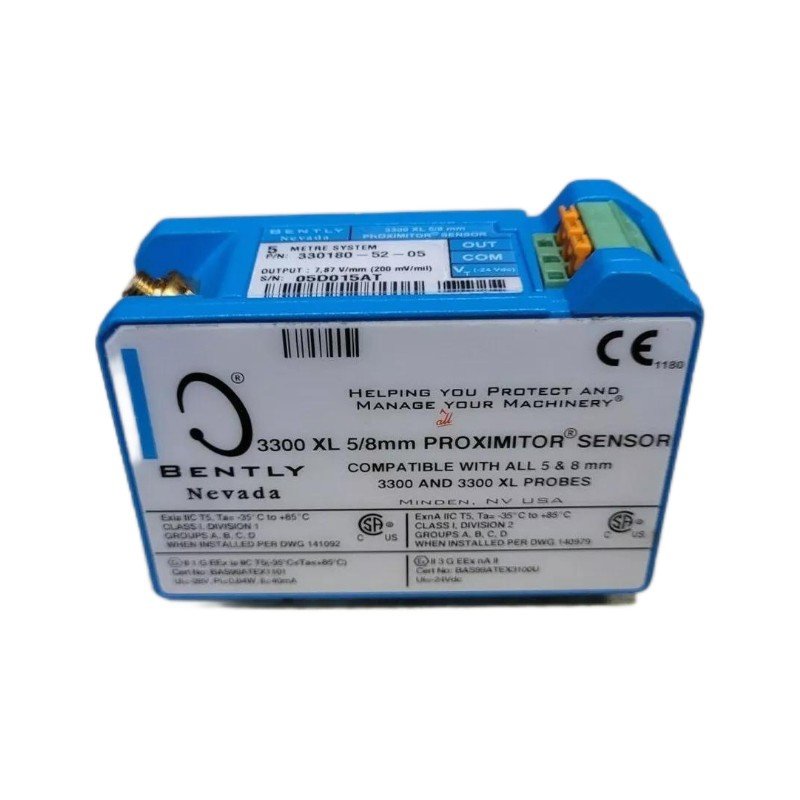

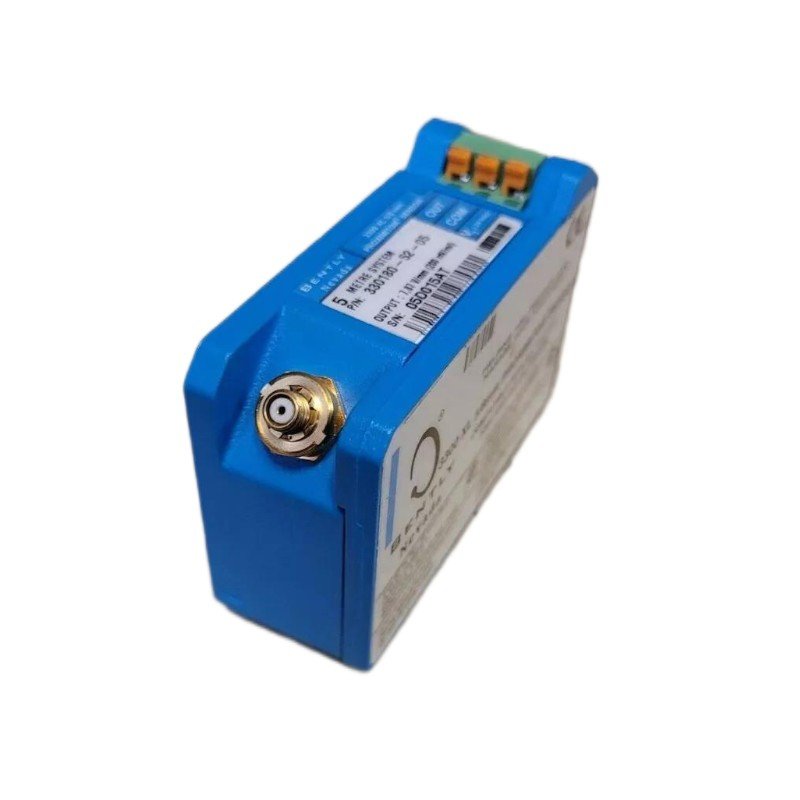

Bently Nevada 330180-52-05 3300 XL 8mm Proximitor Sensor
Manufacturer: Bently Nevada
Product Number: 330180-52-05
Category: 3300 XL 8mm Proximitor Sensor
Probe Diameter: 8 mm
Technology: Eddy current
Measurement: Position and vibration of rotating machinery
Operating Temperature: -40°C to +85°C
Product Description
The Bently Nevada 330180-52-05 is an 8mm proximitor sensor from the 3300 XL series, designed by GE Bently Nevada. It utilizes eddy current technology to measure the position and vibration of rotating machinery. This non-contact sensor is typically used for monitoring critical equipment such as turbines, compressors, pumps, and motors. It ensures high accuracy and reliability in real-time monitoring systems, making it ideal for predictive maintenance applications.
The 3300 XL 8mm Proximitor Sensor is engineered to operate in the harshest industrial environments, providing precise displacement detection even in extreme conditions. It integrates seamlessly with the Bently Nevada 3300 XL monitoring systems for comprehensive asset health monitoring and management.
Key Features
-
Non-contact Eddy Current Measurement: Provides wear-free shaft displacement measurement, enhancing durability and accuracy.
-
High Precision: Delivers micron-level resolution, making it ideal for high-speed and high-precision machinery.
-
Superior Environmental Resistance: Ensures reliable performance in extreme temperatures, vibration, and electromagnetic interference.
-
System Compatibility: Fully integrates with Bently Nevada 3300 XL Proximitor systems for efficient asset monitoring.
-
Durable Construction: Stainless steel housing and high IP protection rating ensure longevity in industrial conditions.
-
Flexible Installation: Threaded body with lock nuts allows for easy and flexible installation in various environments.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | Total Length：5.0 meters |
| Weight | 0.7 kg |
General Information
| Item | Specification |
|---|---|
| Model | 330180-52-05 |
| Manufacturer | Bently Nevada (GE) |
| Series | 3300 XL 8mm |
| Mounting Type | Threaded (3/8-24 UNF typical) |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -50°C to +120°C |
| Protection Rating | IP67 |
| Housing Material | 304 Stainless Steel |
Performance Parameters
| Item | Specification |
|---|---|
| Measurement Principle | Eddy current non-contact displacement |
| Measurement Range | 0.25 mm to 2.00 mm (typical) |
| Linearity Error | ±1% of full scale |
| Sensitivity | 7.87 mV/μm (standard) |
| Frequency Response | 0 to 10 kHz |
| Resolution | ≤ 1 μm |
| Recommended Gap | 1.0 mm to 2.0 mm |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | Supplied via 3300 XL Proximitor module |
| Signal Output | Analog voltage output |
| Connector Type | BNC or TNC (depending on configuration) |
Industry Applications
The Bently Nevada 330180-52-05 Proximitor Sensor is an essential component for predictive maintenance and monitoring in critical industries. Some of the key applications include:
-
Power Generation: Used for turbine shaft displacement and vibration monitoring, ensuring safe and efficient operation.
-
Oil & Gas Industry: Enables real-time monitoring of compressors, pumps, and other critical equipment to prevent unplanned downtime.
-
Metallurgical & Steel Plants: Monitors high-temperature rotating machinery to improve safety and process efficiency.
-
Wind Energy & Renewables: Protects wind turbine shafts and gearboxes by providing continuous monitoring and diagnostics.
-
Precision Manufacturing: Applied in high-precision machines for accurate and continuous feedback on shaft position and vibration.
The Bently Nevada 330180-52-05 proximity sensor offers unmatched accuracy, durability, and seamless integration for critical rotating equipment, making it a vital tool in any predictive maintenance program.
