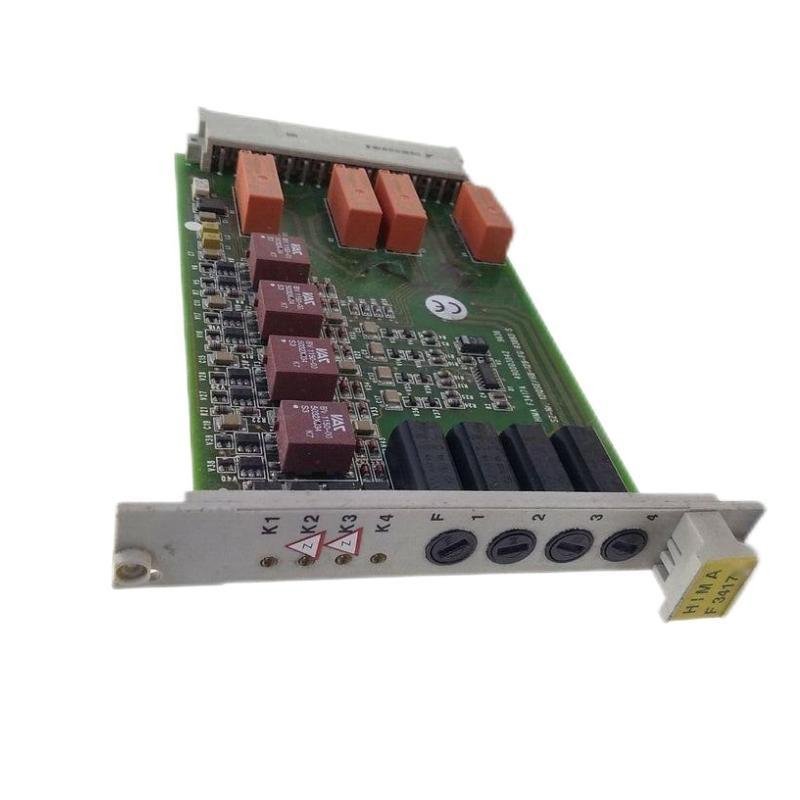

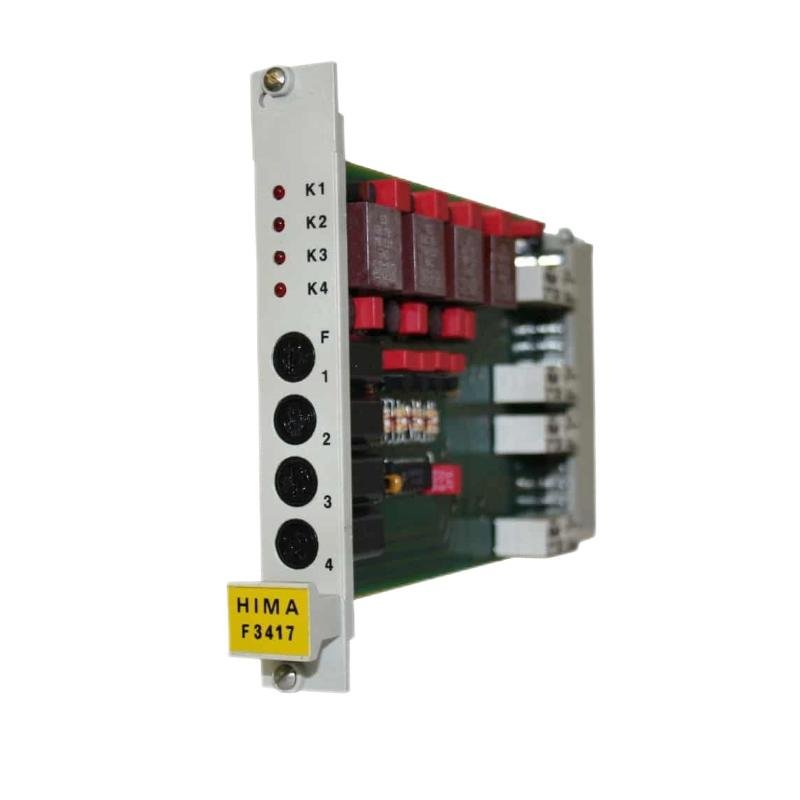

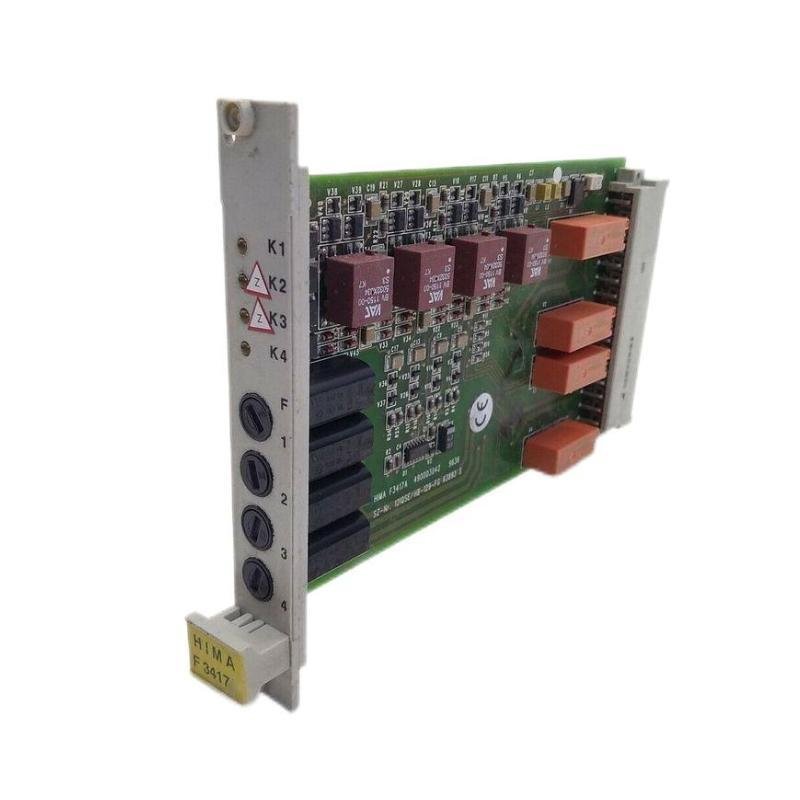

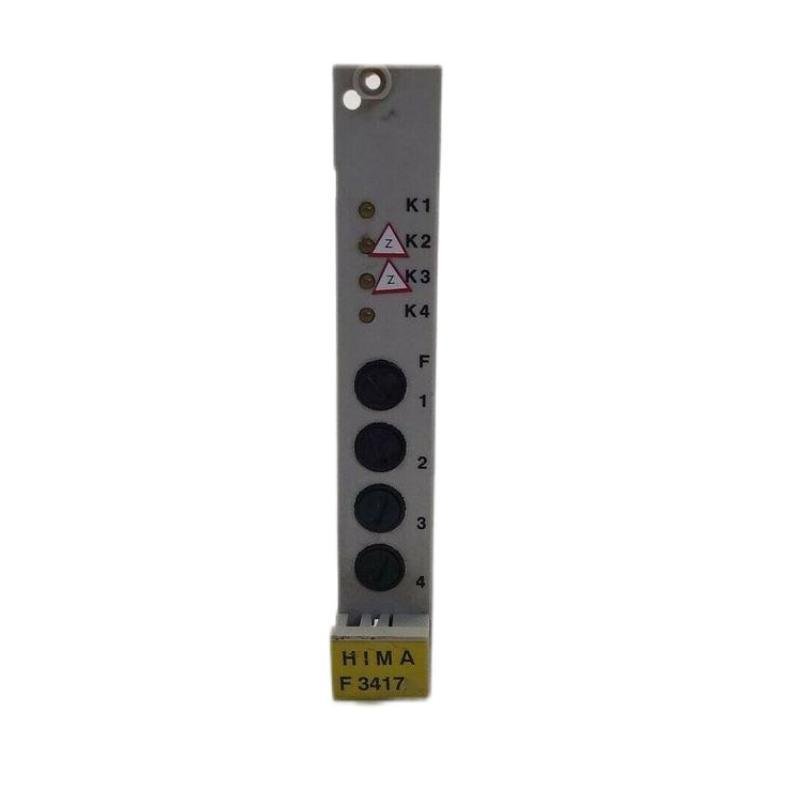

Hima F3417 4x Relay Amplifier Module
Manufacturer: HIMA
Product Number: F3417
Category: 4x Relay Amplifier Module (Planar F Safety System)
Channels: 4-channel
Function: Amplifies low-level signals from control systems to drive relays or other output devices; ensures reliable and safe operation
System Compatibility: Planar F safety system
Product Description
The HIMA F3417 is a 4-channel relay amplifier module designed for integration within the Planar F safety system. It amplifies low-level signals from control systems to drive relays or other output devices, ensuring reliable and safe operation in industrial environments. Each channel operates independently, offering flexibility for various applications. Its compact and robust design ensures dependable performance in critical safety systems.
Key Features
-
Independent Channels: Four separate channels allow for versatile configuration and control.
-
Fail-Safe Operation: Designed to default to a safe state in the event of input signal loss or power failure, enhancing system reliability.
-
Flexible Input Options: Supports both fail-safe and non-fail-safe modes to accommodate diverse application requirements.
-
Compact Design: DIN rail-mountable, facilitating straightforward installation and space optimization.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 100 x 80 mm |
| Weight | 0.5 kg |
General Information
| Item | Specification |
|---|---|
| Model | F3417 |
| Manufacturer | HIMA |
| Installation | DIN Rail Mountable |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Performance Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 4 |
| Switching Time | Approximately 8 ms |
| Safety Level | SIL 2 |
| Output Contact | 1 NO (Normally Open) per channel |
| Contact Material | Silver alloy, gold-flashed |
| Mechanical Life | ≥ 30 million operations |
| Electrical Life | ≥ 250,000 operations with full resistive load |
| Switching Voltage | ≥ 5 V, ≤ 250 V AC / ≤ 110 V DC |
| Switching Current | 10 mA ≤ I ≤ 4 A |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | < 100 mA at 5 V DC / < 120 mA at 24 V DC |
| Isolation Voltage | Up to 2500 Vrms |
| Output Current | Up to 10 A per channel |
Industry Applications
-
Process Control: Ensures safe and reliable operation in chemical and petrochemical processes.
-
Power Generation: Facilitates secure control in power plant systems.
-
Manufacturing Automation: Provides dependable relay amplification in automated manufacturing settings.
-
Safety Systems: Integral to emergency shutdown and safety interlock systems across various industries.
The HIMA F3417 4x Relay Amplifier Module is a robust solution for amplifying control signals to drive relays in safety-critical applications. Its independent channels, fail-safe design, and flexible configurations make it suitable for a wide range of industrial applications within the Planar F safety system.
