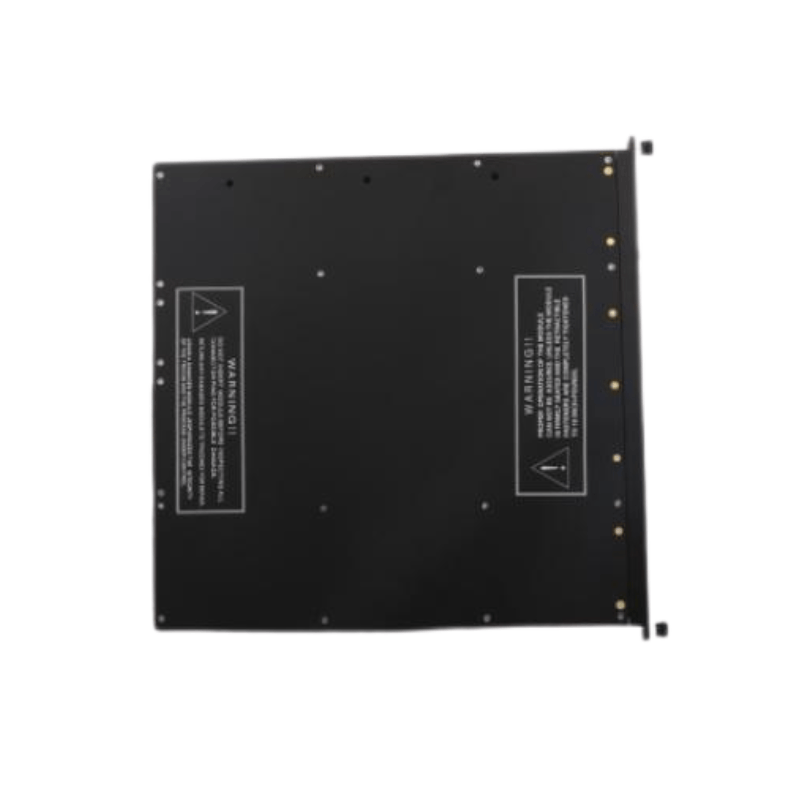

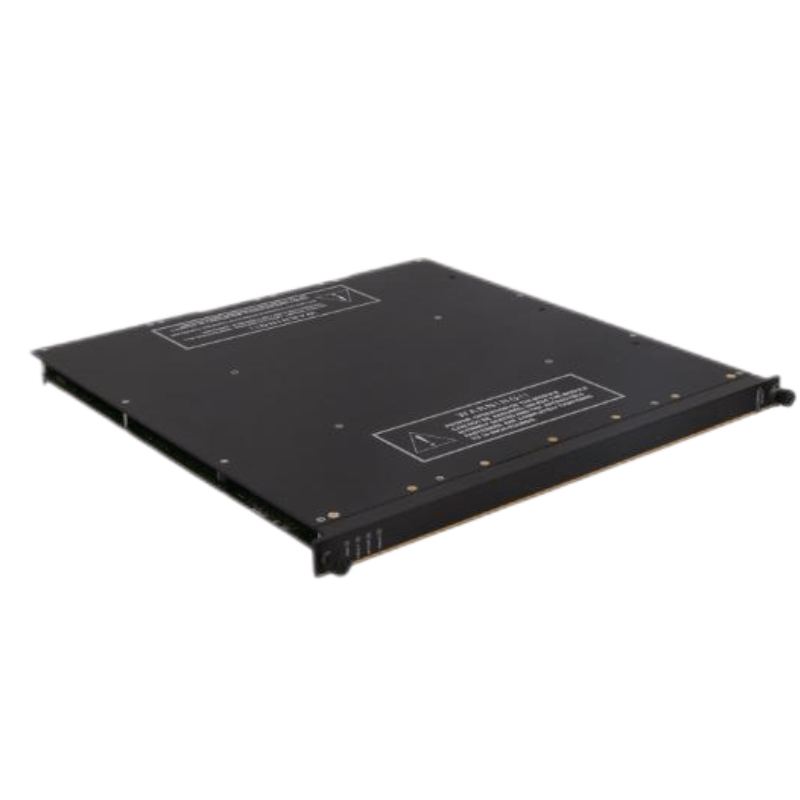

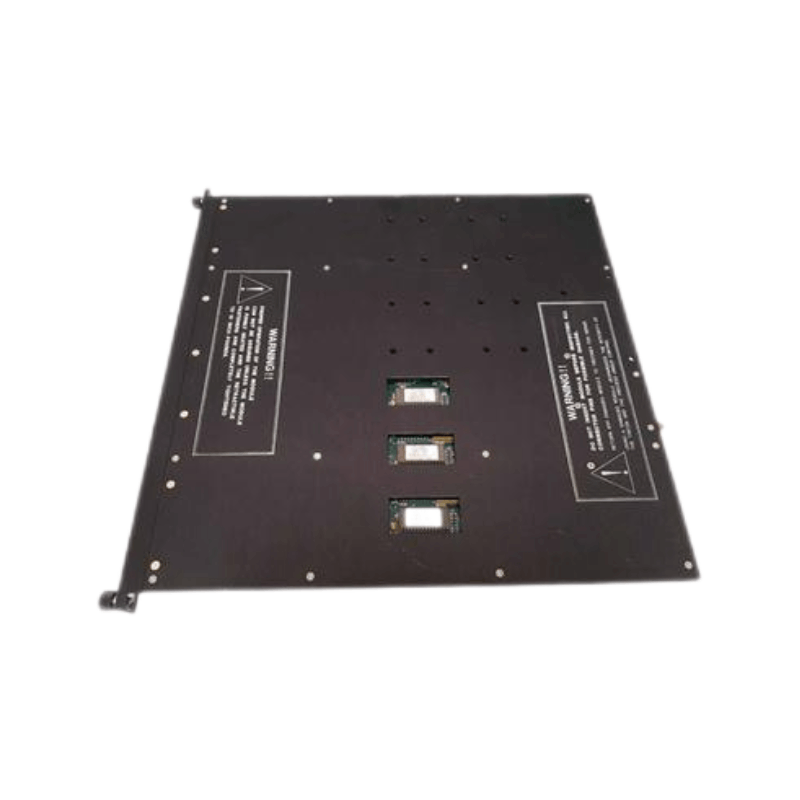

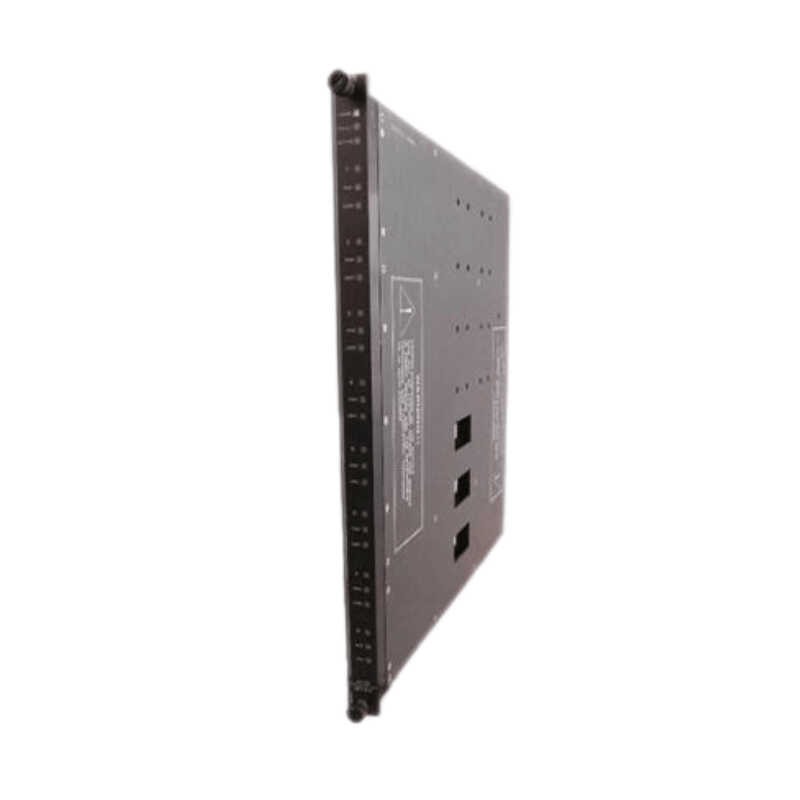

Triconex 3614E Module monitoring DO components

The Triconex 3614E Module is a highly reliable and advanced digital output (DO) module designed for use in Triconex safety systems. This module is primarily responsible for monitoring and controlling digital output signals in industrial environments, particularly in safety-critical applications. The 3614E module ensures seamless operation by managing digital output components, such as actuators, alarms, and control valves, while maintaining fail-safe functionality and redundant safety mechanisms.

By providing real-time monitoring and control of digital outputs, the Triconex 3614E module enhances system integrity, ensuring that critical processes are continuously monitored and protected. Its compatibility with Triconex Safety Systems allows for comprehensive diagnostics, enabling early fault detection and minimizing downtime.

Key Features

• Four Digital Output Channels: Capable of controlling multiple devices simultaneously, such as actuators and control valves.

• Fail-Safe Operation: Designed with redundant safety mechanisms to ensure continued safe operation even in the event of a failure.

• Real-Time Monitoring: Continuous monitoring of digital output signals, ensuring timely and accurate control of connected components.

• Advanced Diagnostics: Built-in diagnostic capabilities allow for early detection of faults and issues, minimizing system downtime.

• Wide Operating Temperature Range: Designed for use in harsh industrial environments, the module can operate in temperatures from -40°C to +70°C.

• Compatibility: Fully integrated with Triconex Safety Systems, ensuring robust communication and control across connected components.

• Compliance with Safety Standards: Meets stringent safety standards such as IEC 61508 for functional safety, ensuring high reliability in critical applications.

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Oil & Gas: Used for controlling critical safety components in refineries, offshore platforms, and pipelines, ensuring safe operations in hazardous environments.

• Chemical Processing: Controls actuators and valves in chemical plants, providing fail-safe operations to reduce the risk of dangerous chemical reactions.

• Power Generation: Monitors and controls digital outputs related to turbines, boilers, and other power equipment, ensuring optimal and safe operation.

• Manufacturing and Automation: Ensures the reliable control of automated machinery, such as robotics and conveyor systems, in manufacturing environments.

• Nuclear Power: In nuclear facilities, the 3614E module is used to manage digital output components related to critical safety systems and equipment.

The Triconex 3614E Module provides an essential role in monitoring and controlling digital output components in safety-critical environments. Its high level of redundancy and real-time diagnostics ensures that it maintains safe and reliable operations across various industries, including oil and gas, chemical processing, and power generation. With compliance to IEC 61508 and SIL 3 certification, this module guarantees that your system meets the highest safety standards, minimizing the risk of downtime and operational hazards.
