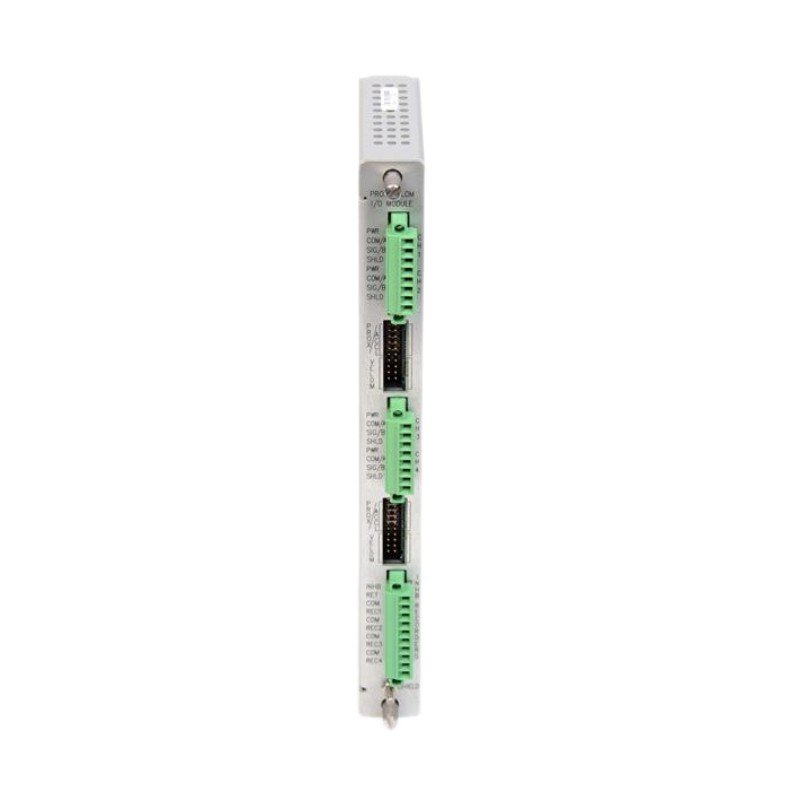

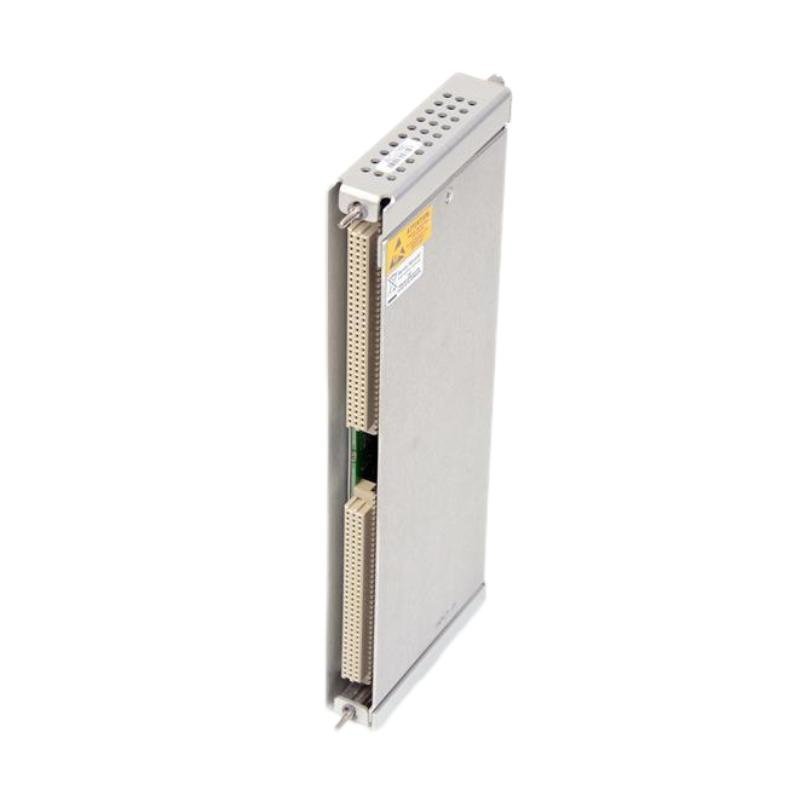

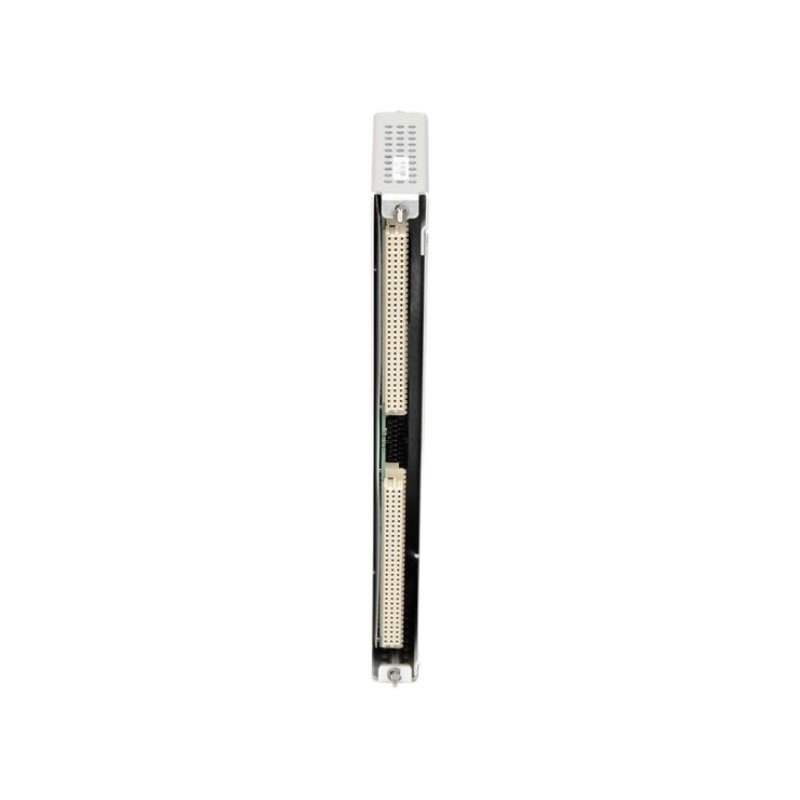

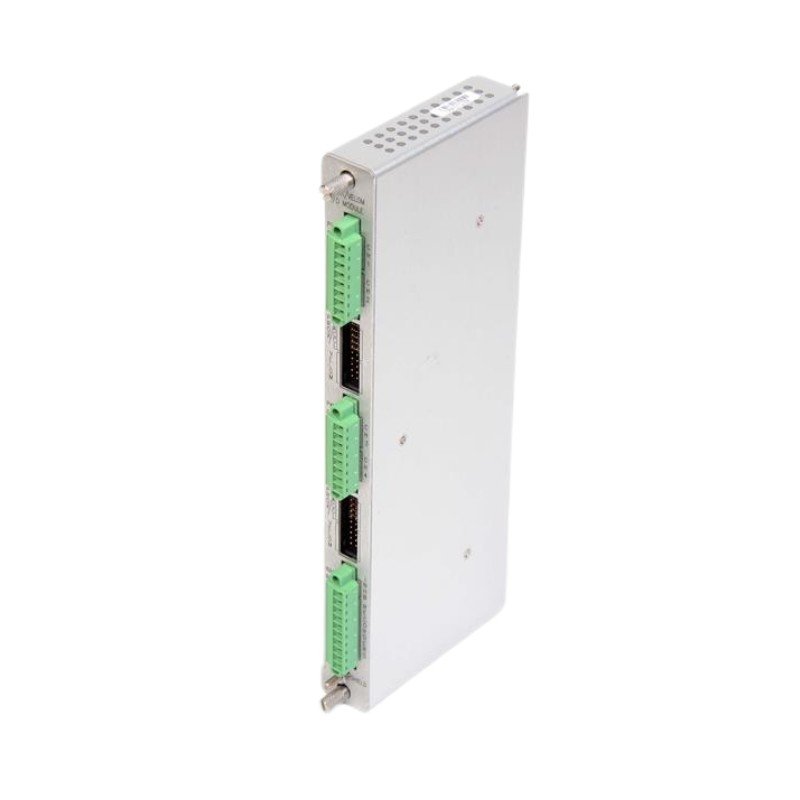

Bently Nevada 3500/42M 140471-01 Proximitor Seismic Monitor I/O Module
Manufacturer: Bently Nevada
Product Number: 3500/42M (140471-01)
Category: Proximitor Seismic Monitor I/O Module (3500 Series)
Function: Interfaces with seismic sensors to collect data and relay to central monitoring system
Input Channels: 4 (typical)
Application: Monitoring seismic activity for industrial machinery protection
Product Description
The Bently Nevada 3500/42M 140471-01 Proximitor Seismic Monitor I/O Module is a device designed for monitoring seismic activity within the 3500 Series. It interfaces with seismic sensors to collect data and relay it to a central monitoring system. This module is capable of processing raw seismic data, filtering out noise, and providing useful information for real-time monitoring and analysis.
The Proximitor Seismic Monitor I/O Module is ideal for environments requiring high-precision vibration and seismic monitoring, offering advanced filtering and frequency response capabilities to isolate critical seismic signals.
Key Features
-
Sensor Input: Accepts input from various seismic sensors such as accelerometers or geophones to detect ground motion caused by seismic events.
-
Data Processing: Converts raw seismic data into meaningful information by applying filtering, amplification, and digitization processes.
-
Communication Interface: Offers communication capabilities through wired (e.g., Ethernet) or wireless protocols to transmit data to a central monitoring system.
-
Monitoring System Integration: Designed to integrate seamlessly with larger seismic monitoring systems, enabling real-time monitoring and alerts based on seismic activity.
-
Output Signals: Provides output signals for alerting and triggering actions based on seismic activity.
-
Diagnostics and Maintenance: Includes diagnostic tools for ensuring the proper operation of both the module and connected sensors, facilitating maintenance and troubleshooting.
-
Power Supply: Equipped with a dedicated power supply unit to ensure continuous operation, particularly in critical applications where uptime is essential.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| Weight | 0.46 kg |
General Information
| Item | Specification |
|---|---|
| Model | Bently Nevada 3500/42M 140471-01 |
| Product Type | Proximitor Seismic Monitor I/O Module |
| Series | 3500 Series |
| Sensor Input | Accelerometers, Geophones, and more |
| Data Transmission | Wired (Ethernet) or Wireless |
| Function | Vibration Data Collection, Processing, and Output |
| Power Supply | Internal Power Supply Unit |
Frequency Response and Filtering
| Filter Type | Frequency Response | Notes |
|---|---|---|
| Direct Filter | User-programmable single-pole -3dB at 4 Hz to 4000 Hz or 1 Hz to 600 Hz ±1% accuracy | Isolates specific frequency components for analysis |
| Gap Filter | -3dB at 0.09 Hz | Eliminates low-frequency noise and baseline drift |
| Not 1X Filter | 60 CPM to 15.8 times running speed, constant Q notch filter with -34.9 dB rejection | Removes fundamental frequency components |
| Smax Filter | 0.125 to 15.8 times running speed | Measures various frequency and speed harmonics |
| 1X and 2X Vector Filter | Constant Q filter with -57.7 dB rejection | Focuses on 1X and 2X harmonic frequencies |
Output and Alarm Features
| Function | Specification |
|---|---|
| Output Signals | Digital outputs for alarm triggering and data logging |
| Alarm Mechanism | Triggers alerts based on detected seismic activity |
Diagnostics and Maintenance
| Feature | Description |
|---|---|
| Diagnostic Tools | Real-time monitoring of the module and sensor health |
| Maintenance and Updates | Built-in tools for troubleshooting and regular maintenance |
Industry Applications
The Bently Nevada 3500/42M 140471-01 Proximitor Seismic Monitor I/O Module is widely used in various industries where seismic monitoring is crucial, such as:
-
Oil and Gas: Monitors seismic vibrations in oil fields and natural gas facilities to ensure equipment safety.
-
Power Industry: Provides seismic data to monitor critical equipment in power plants and substations.
-
Mining: Monitors seismic activity and vibration levels in mining operations, ensuring the safety of both workers and machinery.
-
Construction and Infrastructure: Used to monitor seismic vibrations in buildings and large infrastructure projects to ensure structural safety.
-
Research Institutions: Supports seismic research and environmental monitoring by providing precise vibration data for scientific studies and risk assessment.
