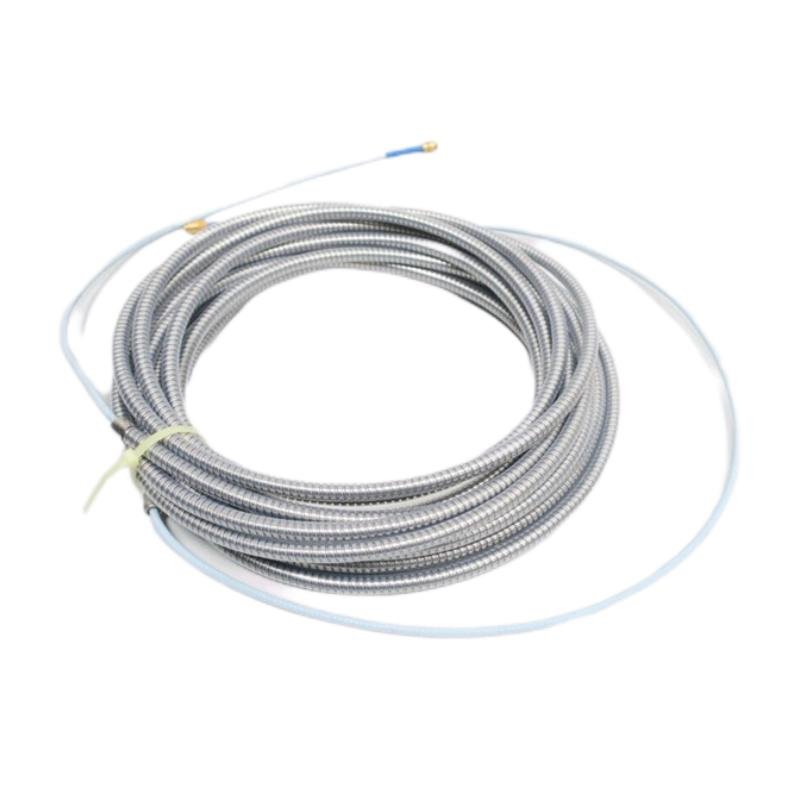

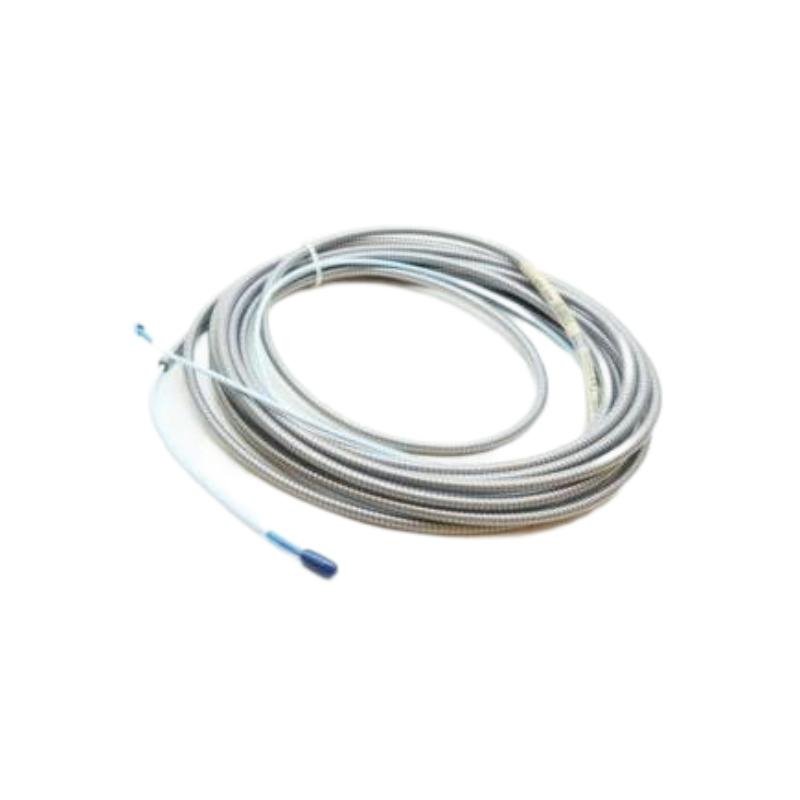

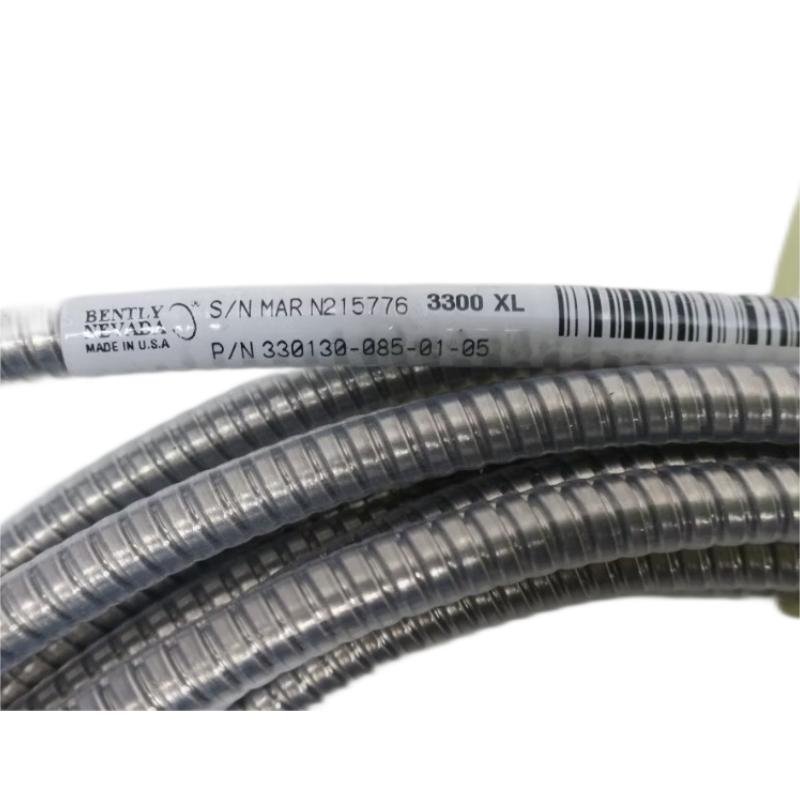

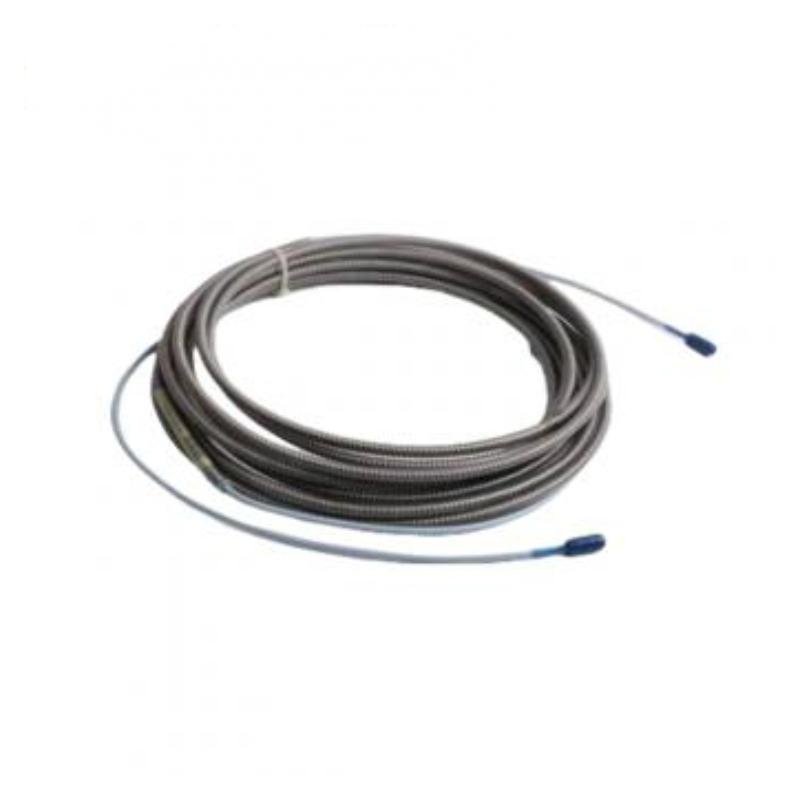

Bently Nevada 330130-085-01-05 3300 XL Standard Extension
Manufacturer: Bently Nevada
Product Number: 330130-085-01-05
Category: 3300 XL Standard Extension Cable
Cable Length: 8.5 meters
System Compatibility: 3300 XL Transducer System
Function: Provides extended cable solution for industrial applications where sensor cable length needs to be increased
Application: Vibration and position measurement in industrial machinery
Product Description
The Bently Nevada 330130-085-01-05 3300 XL Standard Extension Cable is designed specifically for use with the 3300 XL Transducer System. It provides an extended cable solution for industrial applications where sensor cable length needs to be increased while maintaining electrical length consistency across the system. The electrical length of the proximity probe plus the extension cable must equal the electrical length of the Proximitor to ensure proper system functionality.
The 3300 XL extension cable incorporates advancements over previous designs. The patented TipLoc molding technique provides a more robust bond between the probe tip and probe body, while the CableLoc design ensures a higher pull strength of 330N (75 lbf), securely attaching the probe cable and probe tip for greater reliability.
Key Features
- Improved Connection Design: Patented TipLoc and CableLoc technologies enhance the robustness and durability of the probe connection.
- Enhanced Pull Strength: The cable connection point has a pull strength of 330N (75 lbf), ensuring longevity and reliability under high loads.
- Electrical Length Consistency: Ensures the electrical length of the probe, extension cable, and Proximitor are consistent for accurate measurements.
- Compatibility: Fully interchangeable with other components of the 3300 XL series and backward-compatible with other non-3300 XL system parts.
- Wide Temperature Range: Suitable for applications with extended temperature ranges.
- Industrial Applications: Ideal for fluid-film bearing machines, speed measurements, and compression systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
| Cable Length | 8.5 meters (27.9 feet) |
| Cable Weight | 0.289 kg (0.64 lbs) |
General Information
| Item | Specification |
| Cable Type | Standard Cable |
| Protector | Armored Cable |
| Agency Approval | CSA, ATEX, IECEx |
| Compatible Probe | 3300 XL ETR Probe |
| System Compatibility | Fully Compatible with 3300 XL |
Environmental & Application
| Item | Specification |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Applicable Industries | Heavy Machinery, Power Equipment, Fluid-Film Bearings, Compression Systems |
| Protection Rating | IP67 |
Industry Applications
- Fluid-Film Bearing Machines: Ideal for high-precision monitoring and measurement in fluid-film bearing machines, ensuring stable operation.
- Speed Measurements: Suitable for extending the cable length for speed sensors, ensuring accurate speed measurements.
- Compression Systems: Ideal for use in compression systems where extension cables are needed for reliable data transmission.
