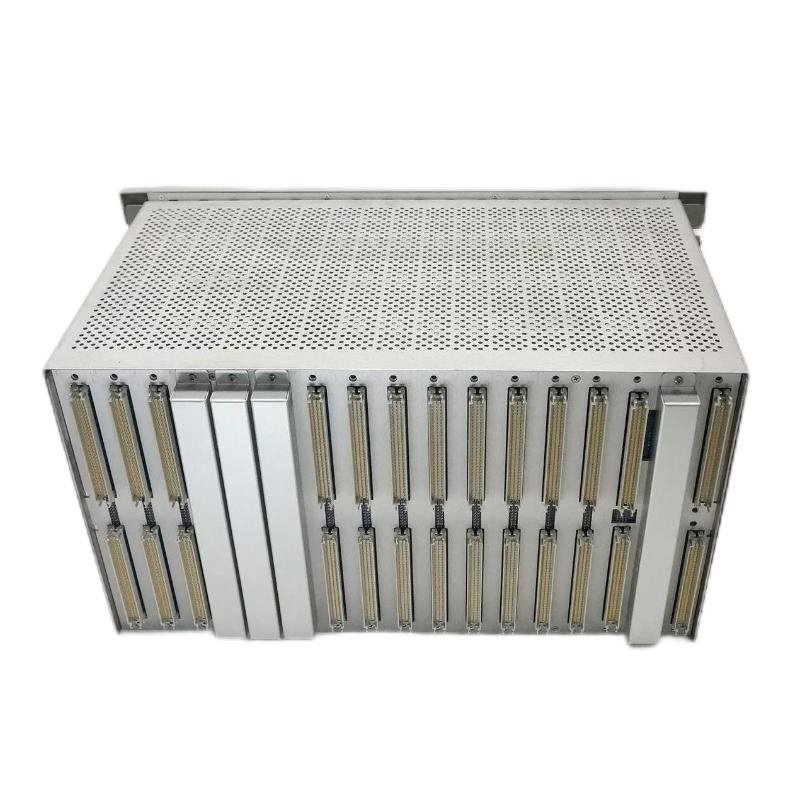

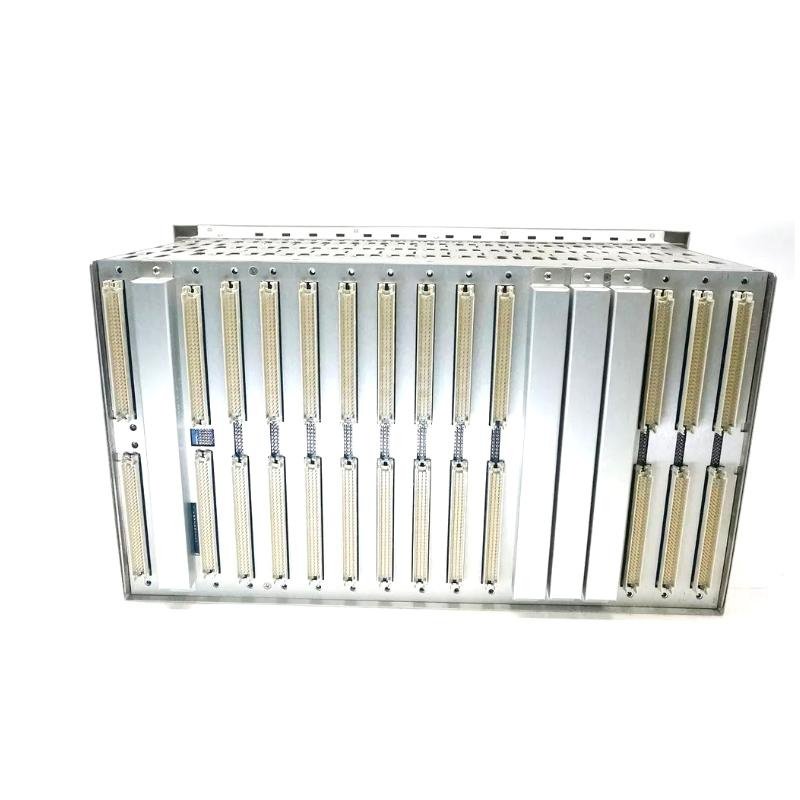

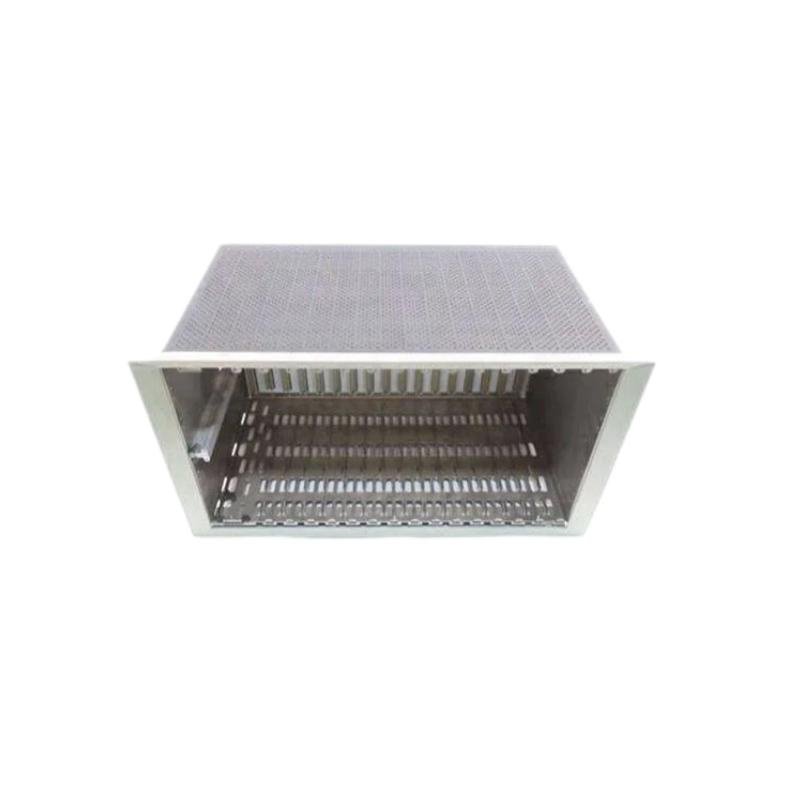

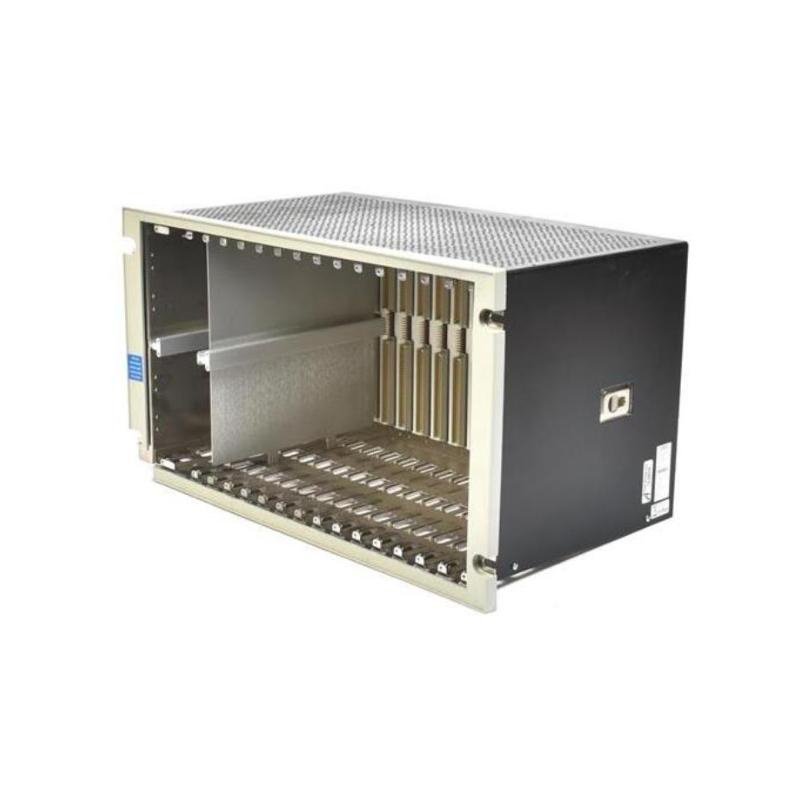

Bently Nevada 3500/05-01-01-01-00-01 rack assembly
Manufacturer: Bently Nevada
Product Number: 3500/05-01-01-01-00-01
Category: 19-inch Full-size System Rack (3500 System)
Rack Size: 19-inch
System Compatibility: Bently Nevada 3500 series monitor modules and power supplies
Product Description
The Bently Nevada 3500/05-01-01-01-00-01 is a 19-inch full-size system rack designed to house and support the 3500 series monitor modules and power supplies. Engineered for industrial machinery protection and monitoring applications, this rack ensures secure and efficient organization of system components, facilitating seamless communication between modules and reliable power distribution. Its robust design and modular architecture make it suitable for demanding environments requiring continuous, online machinery monitoring.
Main Features
-
Modular Design: Accommodates up to 14 monitor modules and power supplies in a 19-inch EIA rack configuration.
-
Flexible Mounting Options: Available in panel mount, rack mount, and bulkhead mount formats to suit various installation requirements.
-
Enhanced Communication: Allows placement of modules in close proximity, enabling efficient communication and coordination between components.
-
Power Distribution: Designed to mount necessary power supplies, ensuring each module receives the required power for optimal operation.
-
Durability: Built to withstand industrial conditions, ensuring long-term reliability and performance.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/05-01-01-01-00-01 |
| Product Type | System Rack |
| Mounting Options | Panel, Rack, Bulkhead |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | External (not included) |
| Voltage Range | 24V DC ±10% |
| Power Consumption | Varies by configuration |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity Range | 10-90% RH (non-condensing) |
| Vibration | 5-150Hz, 2G |
| Shock Resistance | 15G, 11ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/05-01-01-01-00-01 system rack is widely utilized across various industries for machinery protection and monitoring:
-
Oil & Gas: Monitoring of critical equipment such as compressors, turbines, and pumps.
-
Power Generation: Protection of turbines, generators, and other essential machinery.
-
Chemical Processing: Ensuring the safety and reliability of processing equipment.
-
Water Treatment: Monitoring pumps, motors, and other infrastructure components.
-
Mining: Protecting heavy machinery and equipment in mining operations.
